| Specifications |
| Processor |
Socket : Intel CPU Socket G2 (988 pin)
Type : 2nd Generation Intel Core i3/i5/i7 Processors (SandyBridge) |

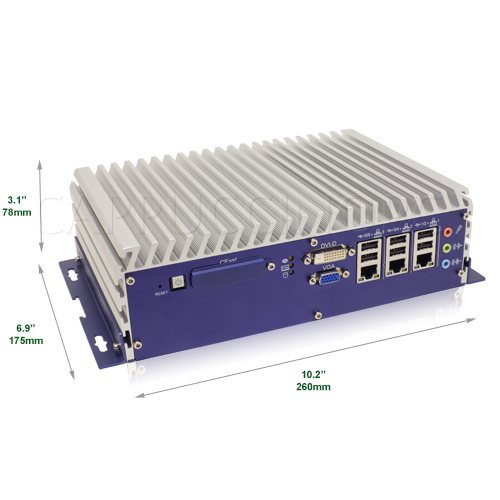

| Dimension |
10.2"(W) x 3.1"(H) x 6.9"(D) |
| Weight |
2.8KG/6 pound (N.W.) |
| Color |
Blue / Sliver |
| Chipset |
Intel QM67 Chipset |
| Bios |
Phoenix UEFI BIOS |
| Memory |
Dual Channel
So-DIMM DDRIII x 2
DDRIII 1333
Max memory size: 16GB*
*Note: 64bit Operating System required for memory more than 3GB
|
| Video |
Intel Graphic chipset various on Selected Processor
Intel® Pentium® Processor B950 (2M Cache, 2.10 GHz)(Intel® HD Graphics 2000)
Intel® Core™ i3-2350M Processor (3M Cache, 2.30 GHz)(Intel® HD Graphics 3000)
Intel® Core™ i5-2520M Processor (3M Cache, 2.50 GHz)(Intel® HD Graphics 3000)
Intel® Core™ i5-2540M Processor (3M Cache, 2.60 GHz)(Intel® HD Graphics 3000)
Intel® Core™ i7-2670QM Processor (6M Cache, up to 3.10 GHz)(Intel® HD Graphics 3000)
|
| Expansion Slot |
2 x Mini-PCIe Card, 1 x SIM Socket on 1 Mini-PCIe Interface |
| Audio |
Realtek ALC892 HD Audio CODEC on-Board
5.1 Channel |
| LAN |
3 x Intel 82583V 10/100/1000 Mbps LAN Controller
Optional 5 x Gigabit LAN (Total 8 Gigabit LAN)
Support PXE boot
Support Wake on LAN
|
| USB |
USB 2.0 port x 6 at front
|
| Storage Bay |
1 x CFast Slot
2 x eSATA Ports
2 x 2.5`` SATA III (6Gbps) HDD Bay for Hard drive, CF disk or SSD |

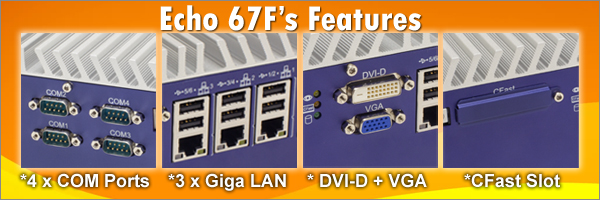

| Front Panel I/O |
1 x Power Button
1 x CFast Slot
1 x DVI-D (digital only)
1 x VGA
3 x Gigabit LAN
6 x USB 2.0 ports
1 x MIC
1 x Line Out
1 x Line In
|
| Rear Panel I/O |
1 x DC 6-36V Jack
1 x DC 2-pins Terminal Block
2 x eSATA
4 x COM Ports |
| Power Management |
Power Loss Resume Feature
Bios setting:
SuperIO->SIO configuration->Power Failure->[on]
|
| Power Supply |
External 110~240V AC-DC adapter 24V@3.75A 90W
Special wide temperataure AC-DC adapter (-20~70°C)
|
| Environment |
Operating Temperature:
0 ~ 40C with Hard Disk
0 ~ 60C with SSD
-25C ~ 70C with Special Wide Temperature Memory and SSD
Storage Temperature: -10 ~ 48C (14 ~ 118.4F)
Operating Humidity: 5 ~ 90%RH |
| Mounting |
L Shape Mounting Bracket Included |
| Vibration Resistance |
Operating, 5 Grms, 5-500Hz, 3 Axes
(w/ SSD, According to IEC60068-2-64) |
| Optional Features |
Optional Wifi
Optional Bluetooth |
| OS Support |
Windows 8 (x86, x64)
Windows 7 (x86, x64)
Windows Vista
windows XP
Driver Download
|
| Resolution |
Support HDTV 1080p, HDCP Supported
Support 16:9 Resolution
Maximum Support Resolution: 2560 x 1600 32-bit @ 60Hz
Dual Display supported (One VGA Monitor and One DVI Monitor) |
