rohs compliant Latte 2750 Mini itx Computer Small Mini Server with 32GB 64GB RAM Memory
Think Big, go Thin

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



Latte Mini PC SeriesThin Clients Mini PC Latte 2750 Mini PC (Small Computer)

Latte 2750 Mini itx Computer Small Mini Server with 32GB 64GB RAM Memory

Latte 2750 is a Mini-Server Computer features up to 64GB Memory. With Low power consumption and 4 x Gb LAN ports, it's perfect for clients that need a networked backup, streaming, file, or mini web server. There's also a fanless version of this computer using the same motherboard: Click here for Mica 2750 Fanless
Latte 2750 Mini Server Computer With 32GB / 64GB RAM Memory
   Latte 2750 Mini PC
Intel® Atom C2750 8-Core processor

1 x VGA
4 x Gb LAN Ports

Small Form Factor
Low Power Consumption PC
Up to 64GB Memory support
Latte 2750 Mini Server Computer With 32GB / 64GB RAM Memory

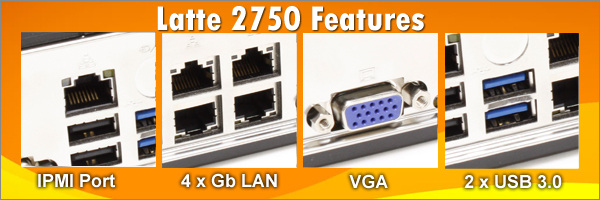

Features

  • Intel® Atom C2750 8-Core processor
  • Intel® Virtualization Technology VT-x
  • Support 32GB and Up to 64GB Memory
  • 2 x USB 3.0
  • 4 x Intel® I354 built-in port GbE controllers
  • 1 x VGA
  • 1 x COM Port
  • Optional TPM Module
Related Products

Echo 236F Fanless Embedded / Industrial / Rugged Mini PC Series
Built-in 4 x COM
Built-in 2 x Gb LAN
Built-in 6 x USB 3.0
Desktop SkyLake-S (6th Gen. i7)

Read More

Echo 40F Fanless Mini PC Series
Built-in 4 x COM
Built-in 2 x Gb LAN
Built-in 4 x USB 3.0
Built-in 2 x USB2.0
Mobile Broadwell-U (5th Gen. i7)

Read More

Mica 2750
Fanless Mini PC

Mica 2750 Fanless Mini itx Computer Small Mini Server up to 64GB RAM Memory

Read More

Latte 2550N
Mini PC

Budget Atom +Nvidia Chipset solution. (nVidia N13M-GE1-B Chipset GPU (610M))

Read More

Latte D525
Mini PC

Budget Atom Solution with multiple LAN, multple COM Port available.

Read More

Power Consumption in Watts
 18   18   22
idleIdle normalNormal fullPeak / Full

spacer
Latte 2750
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





Latte 2750 Mini itx Computer Small Mini Server with 32GB 64GB RAM Memory Specifications

Processor

Single Intel® C2750 Tri-Gate 22nm SoC in the FCBGA 1283 package (Formerly Avoton Rangele) CPU TDP 20W (8-Core)
Intel® Virtualization Technology VT-x

Bios

AMI: American Megatrends, Inc
UEFI supported.

System Memory Memory Cappacity: 4x 204-pin DDR3 SO-DIMM socket
Supports up to 64GB DDR3 ECC Un-Buffered memory

Memory Type: 1600/1333MHz ECC DDR3 SDRAM, 204-pin gold-plated DIMMs

DIMM Sizes: 16GB, 8GB, 4GB, 2GB

Memory Voltage: 1.5 V, 1.35 V
Video

BMC integrated Aspeed AST2400

Audio

Not Available

Storage

Support 2 x 2.5" SATA Hard disk, CF Disk or SSD drive

LAN

4 x Intel® I354 built-in port GbE controllers
Support PXE Boot
Support Wake on LAN

1 x IPMI with dedicated LAN

Back I/O

2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM Port

Optional 2nd COM Port
4 x RJ45 LAN (10/100/1000)
1 x IPMI LAN Port

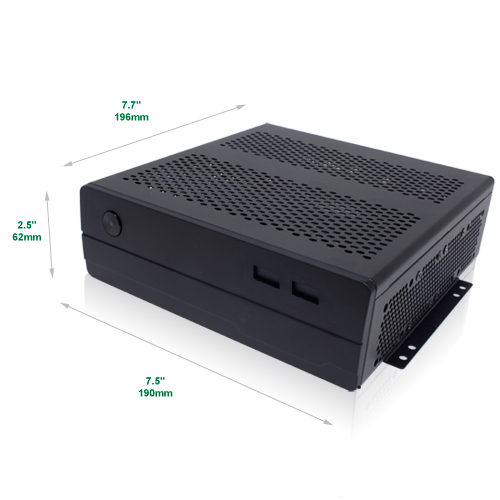

Dimension & Weight

7.5" (W) x 7.7" (D) x 2.5" (H)
5.2 lb. Fully Loaded

Power Management

Watch Dog Timer Available

Operating & Storage Temperature

Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 85°C

Power Supply

External 110~240V AC-DC Adapter 2-pin 12V DC@5A 60W
Power Loss Resume feature available

Mounting

-Optional Dual VESA mounting bracket
-Optional L Shape Mounting

Optional Feature

-Optional TPM Module

OS Support

Ubuntu Linux 12.04 LTS (ACHI Mode)
Ubuntu Linux 13.10 (AHCI Mode)
RedHat Linux EL 5.9, 5.10, 6.4 (AHCI Mode)
Windows 8.1 (x86, x64)
Windows 7 (x86, x64)
Windows XP
Windows Server 2012 R2(x64 AHCI Mode)
Windows Server 2008 R2 SP1(x64 IDE Mode)
VMware ESXi 6.0 (Virtualization Technology)

Certificate

CE, FCC, RoHS
