rohs compliant Echo 236FW Wide Temperature Fanless Mini PC with i7 Skylake-S and Dual NIC
Echo 236FW Wide Temperature Fanless Mini PC with i7 Skylake-S and Dual NIC

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



Echo PC SeriesFanless Mini PC Echo 236FW Wide Temperature Fanless Mini PC with i7 Skylake-S / Kaby Lake / Kaby Lake and Dual NIC

Echo 236FW Wide Temperature Fanless Mini PC with i7 Skylake-S / Kaby Lake and Dual NIC

Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC

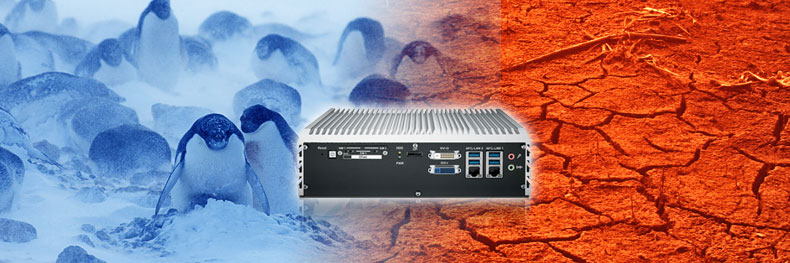

  Echo 236FW Wide Temperature
-40°C to 75°C Fanless PC








2 x Gigabit LAN
Small Form Factor Fanless Industrial
Low Power Consumption Fanless Industrial PC

Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC

Echo 236FW Wide Temperature Fanless Mini PC with i7 Skylake-S / Kaby Lake and Dual NIC is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 6th generation Intel® Core™ i7 (Skylake-S) engine running with 15% enhanced productivity than former generation, Intel® C236 chipset, dual channel DDR3L memory at 2133MHz, up to 32GB. Advanced Intel® Graphics 530 supports DVI-I, DVI-D, and DisplayPort interfaces, up to 3 independent displays(DisplayPort itself support 4K). It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Echo 236FW Wide Temperature Fanless Mini PC with i7 Skylake-S / Kaby Lake and Dual NIC is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.



Features List

  • 7th and 6th Generation Intel® Core™ i7 Mobile Processor (SkyLake-S/ Kaby Lake)
  • Fanless Mini PC Industrial Design
  • 1 Front-access CFast Socket
  • 3 Front-access SIM Card sockets (Required Separate Mini PCIe Modem)
  • 2 Internal 2.5" SSD/ HDD
  • Dual NIC
  • DVI-I/ DVI-D/ DisplayPort Interface, up to 3 independent 4K displays(DisplayPort only)
  • 6 x USB 3.0
  • 4 x COM Ports
  • 16 GPIO
  • Configurable Ignition Power Control for In-Vehicle user
    Power off delay up to 24 hours
  • 6V to 36V DC-in, 80V Surge Protection
  • Fanless, -40°C to 75°C Operating Temperature when pair with special Memory, SSD and 35W CPU
  • Intel® Firmware Raid
  • EN50155 compliant
Related Products
i7 wide extended temperature mini pc computer

Echo 77FW(Wide Temperature) Extended Temperature Mini PC
3rd Gen Intel® Core™ i3/i5/i7 Processors (IvyBridge) Mobile

Read More
i7 wide extended temperature mini pc computer

Echo 236FW(Wide Temp) Extended Temperature Mini PC
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Numi 210FW(Wide Temp) Extended Temperature Mini PC
Intel® Atom BayTrail E3845

Read More


spacer
Echo 236FW
To Customize a Complete System.  Silver / Grey
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





Echo 236FW Wide Temperatuer Fanless Mini PC with i7 SkyLake-S / Kaby Lake and Dual NIC
Specifications

System
Processor 7th and 6th Generation Intel® Core™ i7 Mobile Processor (SkyLake-S and Kaby Lake)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB
I/O Interface
Serial
- 4 COM RS-232/ 422/ 485
USB
- 6 USB 3.0 (External)
- 1 USB 2.0 (Internal)
GPIO 16 GPIO
LED Power, HDD
SIM Card 3 SIM Card Socket (External)
(Additional Mini PCIe Modem required)
Expansion
Mini PCIe
3 Mini PCIe Socket :
- 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA
- 1 Half-size for PCIe/ USB
Graphics
Graphics Processor - Intel® HD Graphics 530
Interface
- DVI-I : Up to 1920 x 1080 @ 60Hz
- DVI-D: Up to 1920 x 1080 @ 60Hz
- DisplayPort: Up to 4096 x 2304 @ 60Hz
Storage
SATA
2 SATA III (6Gbps)
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
SATA DOM 1 SATA II (3Gbps)
M2DOM 1 PCIe 3.0 (8GT/s)
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2 Intel® I210 Gigabit LAN
Power
Power Input Wide Voltage 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Ignition Control 16 Mode(Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Power Adapter Input universal AC 100~240V; Output DC 24V/120W
Others
Trusted Platform Module (TPM) Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimensions (W x L x H) 260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)
Weight 3.8 kg (8.38 lb)
Mounting
- L shape Mounting bracket (Included)
- VESA mounting (Optional)
- 2U Rackmount (Optional)
- DIN Rail Mount 35mm Wide (Optional)
Operating System
Windows 10 Supported
Windows 8 Supported
Windows 7 Supported
Linux Supported
User Manual User Manual Download
Environment
Operating Temperature -40°C to 75°C  (-40°F to 167°F) With Special Wide Temperature memory and SSD and 35W CPU
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
EMC CE, FCC, EN 50155, EN 50121-3-2
