The DEX4501’s innovative cooling system optimizes heat dissipation so efficiently that the Digital Engine™ has no need for excessive heat “fins.” As a result, the DEX4501 retains sharp, sleek styling with 45nm performance in a form factor requiring only 2.4L.
If they want 24/7 application computing with no moving parts for mission-critical performance at 40,000+ hrs MTBF, they turn to the best-in-breed ruggedized, fanless digital media player that echoes power performance thanks to the MP45+ICH9M chipset. With a DEX4501 Digital Engine™ powering digital signage, the DOOH advertising sparkles in full 1080p HD and grabs the momentum of the moment with seamless HD motion and true-3D.
Features:
- No Moving Parts (with SSD): Runs 24/7 with Silent, Cool Operation
- Intel® GMA X4500 and Microsoft® DirectX™ 10 for full HD, true-3D and seamless motion
- Socket P, Intel® Penryn or Merom up to 1066 MHz (supports 25W or 35W Core™ 2 Duo)
- DDRII SO-DIMM 800/667 x 2 (up to 8GB)
- Two MiniCard Slots: Supports TV Tuner (Digital/Analog) and more
- Supports Draft-N Speed WLAN and Bluetooth® (exterior)
- 40,000+ hrs MTBF and under 90W Power Consumption
Small Form Factor and low power consumption design
- 2.4L compact size: 200mm(L) x 200mm(W) x 60mm(H).
- Under 90W low power consumption with MoDT technology.
- Fanless design robust thermal solution.
Excellent performance
- Supports Intel® Core™ 2 Duo P8000, P9000 series TDP 25W dual core CPU with 667/800/1066MHz FSB.
- Intel® GM45+ICH9M chipset with GMA X4500MHD graphics engine, supports Microsoft® DirectX™ 10.
- Supports dual channel SO-DIMM DDR-II 667/800MHz memory up to 4GB.
Reliable features for applications
- Robust, rugged mechanical design with anti-shock and anti-vibration properties.
- Wide power range support from DC 12V~20V Input in most of industrial environments.
- Supports Watch Dog Timer function.
- Microsoft® Windows™ XP Embedded image service available
Multimedia features for Digital Signage
- Supports HDMI interface with HDCP protocol for high definition content output.
- Supports dual display through HDMI and DVI connectors.
- Full HD 1080p video playback ability.
- 7.1 channel audio output.
Extension features
- Supports SATA 2.0 2.5” internal hard disk drive.
- Provided e-SATA connector for external device such as hard disk drive or optical drive.
- Provided eight USB 2.0 ports for easy connect to most peripherals.
- Two mini Card slots for function extension.
- Provided RS232 port.
- Gigabit networking.
|
|
Powered by Intel® Core 2 Duo Technology
The Intel® Core™2 Duo desktop processor delivers revolutionary dual-core performance and breakthrough processor energy efficiency.
|
Genuine Windows 7™
Windows® 7, the next-generation OS from Microsoft® , makes your PC simple and easy to use every day. |
|
Special Options and Upgrades |
|
|
|
|
|
|
Mini PCI Express
WiFi 802.11G |
Mini PCI Express
TV Tuner |
Built-in Bluetooth |
U Shape Wall/Desk Mounting Kit |
Dual Vesa
Mounting Kit |
|
|
|
|
Specifications |
CPU |
Socket |
Socket P |
Type |
Support Intel Core 2 Duo CPU |
FSB |
667 / 800 / 1066Mhz |
|
|
NOTE: CPU Power Consumption less than 35 Watts |
Chipset |
NB |
Intel GM 45 |
SB |
ICH9M Chipset |
Memory |
Dual Channel |
Dual Channel |
Type |
200-pin DDRII SO-DIMM x 2 |
DDRII |
667 / 800 |
Max Memory |
8GB *
*Note: 64bit Operating System required for memory more than 3GB
|
Graphics |
Chip |
Integrated VGA Engine in GM45 Chipset (Intel GMA X4500MHD) |
DVI Port |
1 x DVI Port |
VGA Port |
1 x VGA (via DVI to D-Sub Converter) |
HDMI Port |
1 x HDMI Port |
Expansion Slot |
2 x Mini PCI Express slot |
Audio |
Type |
Realtek ALC888 HD Audio CODEC on-board |
Channel |
7.1 Channel |
LAN |
Integrated Intel Gigabit LAN Controller (82567LF)
Supports Wake-on-LAN
Supports PXE Boot |
USB 2.0 |
USB 2.0 Port x 8 (4 Rear, 4 Front) |
Chassis |
1 x 2.5`` SATA II HDD / CF disk / SSD |

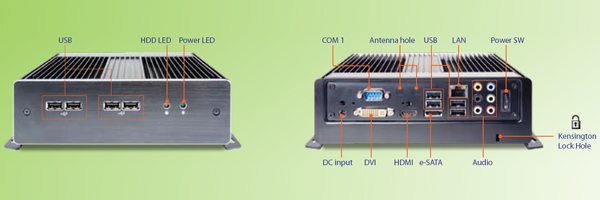

Front Panel IO: |
1 x HDD Indicator (Orange)
1 x Power Indicator (Green)
4 x USB 2.0 Ports |
Rear Panel IO: |
1 x DC 20V Jack
1 x Power Button
1 x DVI-I Port
1 x HDMI Port
4 x USB 2.0 Ports
1 x RS232 Serial Port
1 x eSATA Port
7.1 channel Audio I/O Port x 1 (Line-In with S/PDIF_Out, Line-Out, Mic-In, Rear Surround, Center / Subwoofer, Side Surround) |
Security |
1 x Kensington Lock Hole |
CPU Themeral |
Proprietary Fan Less Thermal Solution |
WatchDog Timer |
1 ~ 255 Sec/min |
Power Management |
Power Loss Resume Feature |
Adapter |
External 110~240V AC-DC adapter 20V@4.5A 90W |
Dimension |
WxHxD (mm) |
200 x 60 x 200 |
WxHxD (inch) |
7.87 x 2.36 x 7.87 |
Weight (Kg/Pound) |
2.85kg / 6.27 pound (N.W.) / 6.50 pound (Fully loaded) |
Optional Features |
Optional TV Tuner
Optional Wifi
Optional Bluetooth |
Mounting |
Wall mount bracket included
|
OS Support |
Windows XP Home
Windows XP Professional
Windows XP Embedded
Windows Vista
Windows 7
Windows 2003 Server
Windows 2008 Server
Ubuntu 9.10
Debian 5.02 |
Resolution |
Support 16:9 Resolutions
Support HDTV 1080p
Max. Resolution: 2048 x 1536 32-bit 60Hz
Dual Display Support
|
Environment |
MTBF |
40,000 Hours |
Operating Temperature |
-5 ~ 40°C (23~104°F) |
Storage Temperature |
-20 to 60°C (-4~140°F) |
Relative Humidity |
90% RH (40°C non-Condensing) |
Operating Vibration |
0.4 Grms, Random, 10~500Hz, X,Y,Z 3 Axes, 0.5hr/Axis |
Operating Shock |
8G, Half sine, 11ms duration, X,Y,Z 3Axes, 6 direction, 3 shocks/direction |
Certification |
CE, FCC, UL, CB |
|
|
