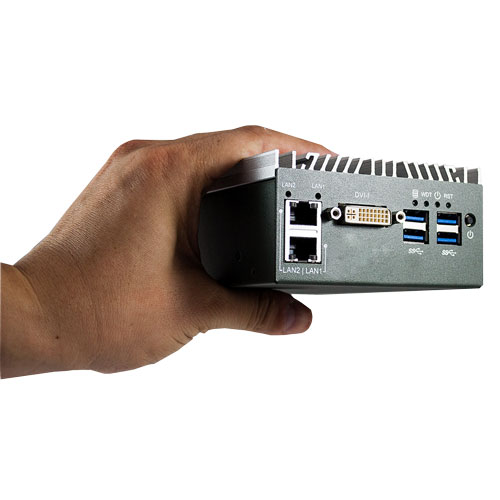

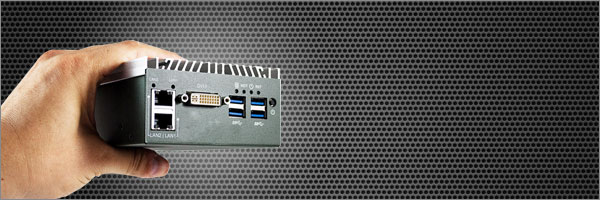

Echo 210F BayTrail 2xLAN / 4xCOM Ports Low Power Mini PC

Echo 210F is a Mini-PC Computer feature BayTrail Processor to deliver low power computing ability for demanding applications. And DVI-I, 4 x COM Ports, 2 x Gb Lan, 4 x USB 3.0 are perfect for POS (Point of Sale), digital signage applications.

The Echo 210F embedded with Intel® new Bay Trail CPU, offers superb enhanced graphics performance. Deliver faster high definition graphic and other media conversions, and more. The unique design of the 22nm technology and integrate more energy-efficient CPU, and built-in security onto a chip draws less than 10 watts of power.

Numi 210F BayTrail 2xLAN / 4xCOM Ports Low Power Mini PC

Echo 210F Mini PC

BayTrail Small Mini Computer

DVI-I
4 x COM Ports
Small Form Factor
Low Power Consumption PC

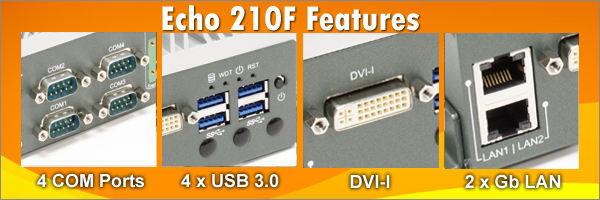

Features

Ultra-compact 150.4 mm x 106 mm foot-print

Intel Atom Bay Trail-I E3845 Quad-core processor

Intel BayTrail

1 x DDR3L SO-DIMM(Low Voltage)

4 x USB 3.0

2 x Gigabit LAN onboard(Intel I210)

1 x Mini PCIe Socket (PCIe + USB + SIM card socket)

1 x Mini PCIe Socket (PCIe + USB) or mSATA (Jumper Select)

DVI-I

4 x COM Ports(software-programmable RS-232/422/485)

Optional Wifi & Bluetooth

Wide Voltage 6~36V DC input

Echo 210F BayTrail 2xLAN / 4xCOM Ports Low Power Mini PC Specifications

Processor	Intel® Atom™ Bay Trail-I E3845 1.91GHz Quad-core processor
Chipset	Intel® SoC
Graphics	Integrated Intel® HD Graphics
System Memory	1x SO-DIMM socket for DDR3L-1333 (Low Voltage), up to 8GB
Audio	1x Speaker-out
Storage	1 x 2.5" SATA Hard disk, CF Disk or SSD drive 1 x mSATA drive (Full Size)
LAN	2x Gigabit Ethernet ports by Intel® I210 Support PXE Boot Support Wake on LAN
Back I/O	Front: 1 x Power Button 2 x RJ45 LAN (10/100/1000) 1 x DVI-I 4 x USB 3.0 1 x Isolated DIO(Optional) Front: Power Input 6~36V 1 x Audio Out 4 x COM Port (RS-232/422/485)
Jumper	1 x Remote On/Off Control Jumper (Inside the Motherboard)
Expansion	1 x Mini PCIe Socket (PCIe + USB + SIM card socket) 1 x Mini PCIe Socket (PCIe + USB) or mSATA (Jumper Select)
Optional Features	Optional Mini PCI Express TV tuner Optional Wifi Optional Bluetooth
Dimension & Weight	4.2" (W) x 5.9" (D) x 2.6" (H) 106mm (W) x 150.4 mm (D) x 65.9 mm (H) 3.1 lb. Fully Loaded
Power Management	Watch Dog Timer Available 1 to 255 sec./min. per step
Operating & Storage Temperature	Operating Temperature: 0 to 40°C with Hard Disk 0 to 60°C with Regular SSD -25 to 70°C with Wide Temperature SSD and Wide Temperature Memory Storage Temperature: -40 to 85°C
Humidity	5% to 95% Humidity, Non-condensing
Power Supply	External 110~240V AC-DC Adapter 2-pin 12V DC@5A 60W Power Loss Resume feature available
Mounting	-Included L Shape mounting bracket
OS Support	Ubuntu Linux Windows 8.1 (x86, x64)Driver Download Windows 7 (x86, x64) Driver Download Windows 7 Installation Instruction
Certificate	CE, FCC, RoHS
Resolution	Support HDTV 1080p Support 16:9 resolution Maximum Resolution 2048 x 1536 32-bit 60Hz
