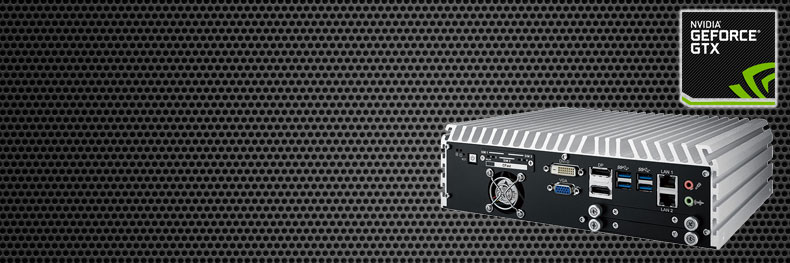

Echo236N i7 Skylake-H with nVidia Geforce GTX950 supports four 4K 60fps 4x displays ports

Echo236N i7 Skylake-H with nVidia Geforce GTX950 supports four 4K 60fps 4x displays ports is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 6^th generation Intel® Core™ i7 (Skylake-H) engine running with 15% enhanced productivity than former generation, Advanced NVIDIA GeForce® GTX950 chipset supports NVIDIA Pascal GPU architecture. Advanced NVIDIA GeForcel® GTX950 supports DVI-I, 3 x DisplayPort, and 1 x Hdmi interfaces, up to 4 independent displays. It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Echo236N i7 Skylake-H with nVidia Geforce GTX950 supports four 4K 60fps 4x displays ports is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC

Echo 236N NVIDIA PC

6th Generation Intel® (SkyLake-H)

2 x Gigabit LAN
nVidia GTX950
Small Form Factor Fanless Industrial
Low Power Consumption Fanless Industrial PC

Features List

6^th Generation Intel® Xeon® Core™ i7 Mobile Processor (SkyLake-H)

Fanless Mini PC Industrial Design

1 Front-access CFast Socket

3 Front-access SIM Card sockets (Required Separate Mini PCIe Modem)

2 Internal 2.5" SSD/ HDD

Dual NIC

Intel® HD Graphics 530 up to 3 independent displays(2 x DP, 1 x DVI-D, 1 x VGA)

nVidia® Geforce GTX950 up to 4 independent displays (3 x DP, 1 x HDMI, 1 x DVI-I)

6 x USB 3.0

4 x COM Ports

16 GPIO

Configurable Ignition Power Control for In-Vehicle user
Power off delay up to 24 hours

6V to 36V DC-in, 80V Surge Protection

Fanless, -40°C to 70°C Operating Temperature when pair with special Memory and SSD

Intel® Firmware Raid

EN50155 compliant

Echo236N i7 Skylake-H with nVidia Geforce GTX950 supports four 4K 60fps 4x displays ports
Specifications

System
Processor	Intel® Xeon® E3-1505M v5 / Core™ i7-6820EQ Processor (Skylake-H)
Chipset	Intel® C236
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/ Non-ECC)
I/O Interface
Serial	- 4 COM RS-232/ 422/ 485
USB	- 6 USB 3.0 (External) - 1 USB 2.0 (Internal)
GPIO	16 Isolated DIO : 8 DI, 8 DO
LED	Power, HDD
SIM Card	3 SIM Card Socket (External) (Additional Mini PCIe Modem required)
Expansion
Mini PCIe	3 Mini PCIe Socket : - 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA - 1 Half-size for PCIe/ USB
Graphics
Graphics Processor	- Intel® HD Graphics 530 (Max 3 independent displays) - NVIDIA GeForce® GTX 950 (Max 4 independent displays)
Interface	- VGA : Up to 1920 x 1200 @ 60Hz (Intel) - DVI-D Digital Only: Up to 1920 x 1200 @ 60Hz (Intel) - 2 x DisplayPort: Up to 4096 x 2304 @ 60Hz (Intel) - 3 x DisplayPort: Up to 5120 x 3200 @ 60Hz (Nvidia) - DVI-I: Up to 1920 x 1200 @ 60Hz (Nvidia) - HDMI: Up to 5120 x 3200 @ 60Hz (Nvidia)
Storage
SATA	3 SATA III (6Gbps) Support Intel software RAID
mSATA	3 SATA III (Mini PCIe Type, 6Gbps)
Storage Device	- 1 CFast Socket, Push-in/ Push-out Ejector - 2 2.5" SSD/ HDD Bracket (External)
Audio
Audio Codec	Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface	1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1	Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2	Intel® I210 Gigabit LAN
Power
Power Input	Wide Voltage 6V to 36V, DC-in
Power Interface	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Ignition Control	16 Mode(Internal)
Remote Switch	3-pin Terminal Block : On, Off, IGN
Surge Protection	Up to 80V/1ms Transient Power
Power Adapter	Input universal AC 100~240V; Output DC 24V/120W
Others
Trusted Platform Module (TPM)	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimensions (W x L x H)	260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”)
Weight	4.5 kg (9.92lb)
Mounting	- L shape Mounting bracket (Included) - VESA mounting (Optional) - 2U Rackmount (Optional) - DIN Rail Mount 35mm Wide (Optional)
Operating System
Windows 10	Supported
Windows 8	Supported
Windows 7	Supported (6^th Gen CPU only)
Ubuntu Linux	Supported (Only can use the ports on Nvidia and Intel Raid Not supported)
Environment
Operating Temperature	-40°C to 60°C (-40°F to 140°F) With Special Wide Temperature memory and SSD and 35W CPU 0 to 40°C with Hard Disk 0 to 55°C with SSD
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 60°C
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
EMC	CE, FCC, EN 50155, EN 50121-3-2

**For some Linux distributions, graphics driver and RAID function may not be completely implemented in its kernel. You may encounter restrictions when using these features, such as triple independent display and RAID. It should be user’s liability to manually upgrade related drivers if necessary
