rohs compliant Mini PC with PCI Express x4 slot and 2 displays - SlimPro SP685EP
Mini PC with PCI Express x4 slot and 2 displays - SlimPro SP685EP

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



SlimPro SeriesMini PC Mini PC with PCI Express x4 slot and 3 diaplays - SlimPro SP685EP

Mini PC with PCI Express x4 slot and 2 displays - SlimPro SP685EP

Mini PC with PCI Express x4 slot and 2 diaplays - SlimPro SP685EP is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 4th generation Intel® Core™ i7 (Haswell) engine running with 15% enhanced productivity than former generation, Intel® Q87 chipset, dual channel DDR3 memory at 1600MHz, up to 16GB. Advanced Intel® HD Graphics 4600 supports DVI to VGA, DVI-I, DisplayPort interfaces, up to 2 independent 1080P displays. It is delivering leading performance, trusted rugged reliability and compact integration.

Mini PC with PCI Express x4 slot and 2 diaplays - SlimPro SP685EP is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC
  SP685EP Mini PC
4th Generation Intel® (Haswell)

4 x USB 3.0
Display Ports

PCI Express x1 or x4
Small Form Factor Industrial
Low Power Consumption Fanless Industrial PC
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC


Features List

  • Intel Q87 core logic
  • Support the 4th generation Intel FCLGA1150 low power CPU
  • Support SODIMM DDR3 1333/1600Mhz 8GB * 2
  • On-board gigabit LAN and 4 x USB 3.0 ports
  • PCI-Express x1 Slot or Optional PCI-Express x4 Slot
    Max Card Dimension: 4.2"(H)x9.75"(D)
  • On-board DVI-I and Display Port
  • Optional dual mini-PCIe slots support one full size and one half size mini card
  • Support 6Gb/s SATA 2.5" hard disk (thickness equal or less than 15mm)
  • Support SATA slim optical disk drive
  • Power in: DC 12V/84W

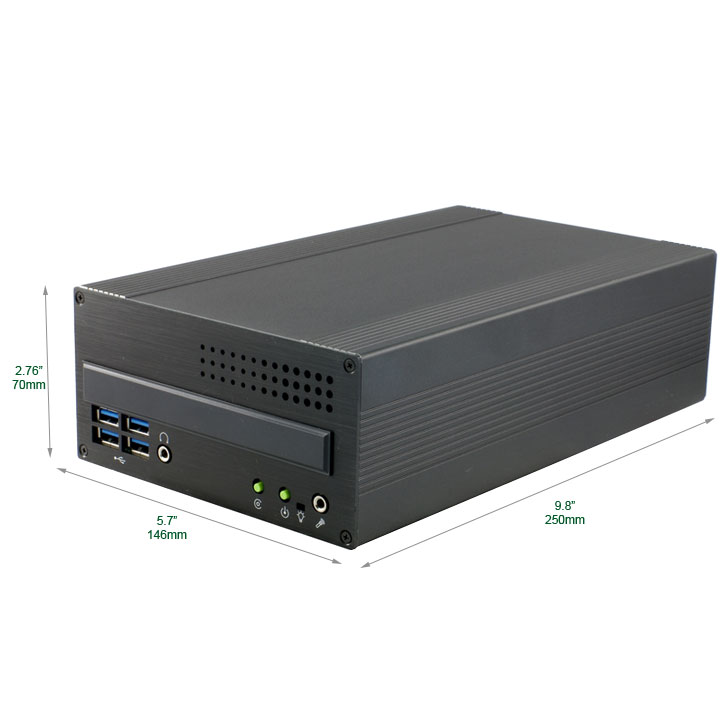

  • Dimension 5.7"(W) x 9.8"(D) x 2.76"(H) (W146mm x L250mm x H70mm)
Mini PC Computer with PCI-e 4X Slot
 PCI-Express x1 Slot (Default)
 2 x Mini PCI-e slots
Mini PC Computer with PCI-e 4X Slot
 Optional PCI-Express x4 Slot
 Cannot co-exist with Mini PCI-e
Related Products
i7 wide extended temperature mini pc computer

Expando Duo IE16(x16 and PCI Slot) Mini PC
x16 PCIe Expansion Slot
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More
i7 wide extended temperature mini pc computer

Echo 236FE(x16 PCIe Slot) Mini PC
x16 PCIe Expansion Slot
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 77FE(x16 PCIe Slot) Mini PC
x16 PCIe Expansion Slot
3rd Gen Intel® Core™ i3/i5/i7 Processors (IvyBridge) Mobile

Read More
i7 wide extended temperature mini pc computer

Numi 76EF(x16 PCIe Slot) Mini PC
x16 PCIe Expansion Slot
3rd and 2nd Gen Intel Core™ i3/i5/i7 Processors (IvyBridge) Mobile

Read More


spacer
SlimPRO SP685E
To Customize a Complete System.  Black     Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





Mini PC with PCI Express x4 slot and 2 diaplays - SlimPro SP685EP
Specifications

System
Processor Quad Core 4th Generation/ Intel® Core™ LGA1150 low power CPU (Desktop Type)
Chipset Intel® Q87
BIOS Insyde UEFI BIOS
Memory 2 x DDR3 1600MHz SO-DIMM, up to 16GB
I/O Interface
Serial
- 1 COM RS-232, Optional 2nd COM
USB
- 6 x USB 3.0 (External)
Video
- DVI-I (Digital and Analog)
- Display Port
PS/2 - PS/2 Mouse and Keyboard Ports
LED Power, HDD
Expansion
Mini PCIe
Mini PCIe Socket :
- 1 Full-size for PCIe/ USB
- 1 Half-size for PCIe/ USB
Slots
PCI-Express x1 Slot

Optional PCI-Express x4 Slot
(Cannot co-exist with Mini PCI Express Slot and x1 Slot)
Graphics
Graphics Processor - Intel® HD Graphics 4600
Interface
- DVI to VGA : Up to 1920 x 1200 @ 60Hz
- DVI-I : Up to 1920 x 1080 @ 60Hz
- DisplayPort : Up to 3840 x 2160 @ 30Hz
Storage
SATA
2 SATA III (6Gbps)
Storage Device
- 2 x 2.5" SSD/ HDD Bracket (Internal)
2nd SSD/HDD Slot shared with optical drive
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet NIC
LAN 1 Intel® I217LM Gigabit LAN
Power
Power Input Voltage 12V, DC-in
Power Adapter Input universal AC 100~240V; Output DC 12V/84W
Others
Smart Management Wake on LAN, PXE supported
HW Monitor CPU temperature, cooling fan speed, system voltage
Mechanical
Dimensions (W x L x H) 146mm x 250mm x 70mm (5.7” x 9.8” x 2.76”)
Weight 2.4 kg (5.3 lb)
Mounting
- Optional U-Shape mounting bracket
- Optional Dual VESA mounting Bracket
- Optional Sliding Style Mounting Bracket
Operating System
Windows 10 Supported
Windows 8 Supported
Windows 7 Supported
Linux Ubuntu 14.04
Environment
Operating Temperature
0 to 40°C with Hard Disk
0 to 60°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
