| Specifications |
| Processor |
Atom Pineview D525 1.8GHZ Dual Cores Atom Processor (Embedded) |
| Memory |
Support 2 x SODIMM DDR3 800MHz
Maximum 4GB |
| Core Logic |
Intel ICH8M (Core Logic) |
| Video |
Intel Graphics Media Accelerator 3150
Support analog display output resolution up to 2048*1536@60Hz |
| Audio |
Realtek ALC888 Software high definition audio CODEC |
| LAN |
Built-in high speed Ethernet 10/100/1000 Mbps LAN controller
(Intel(R) PRO/1000 PL)
Support PXE Boot and WOL feature
|
| Firewire |
Built-in OHCI 1394a 1.1 compliance
Support up to 400Mb transfer rate |
| USB 2.0 |
Integrated 3 independent OHCI controller supporting USB 1.1 ports
Integrated 1 EHCI controller supporting USB 2.0 ports
Dynamic connection support to USB 2.0 or USB 1.1 devices
|
| SATA |
Support 1 x 2.5" hard disk drive & optical disk drive
Support AHCI function
Support SATA SSD drive
One internal SATA connectors |
| Hardware Monitor |
Processor temperature; Voltage; CPU fan speed |
| Power Management |
ACPI 3.0 compliance and OS direct power management
Wake-on event: RTC/USB Keyboard / Modem / LAN / Keyboard / Mouse
Power Loss Resume feature
Watch Dog Timer not available
|
| Switch and Jumper |
Front Panel: (Model SP525)
1 x RS232(COM) Port
3 x USB 2.0 / 1.1 port
1 x MIC port
1 x Ear phone output jack
1 x Power-on button
1 x Power-on and HDD LED
Rear Panel:
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x RJ45 10/100/1000Mb Fast Ethernet
1 x Line-out output jack
1 x USB 2.0 / 1.1 port
1 x 15 pin VGA
1 x 12v DC power jack input |
| Optional Features |
(Model SP525FS)
-Optional 2nd COM port
** One USB port will be remove to insert 2nd COM Port **
** Total 2 COM ports on Model SP525FS **
** Total 3 USB ports on Model SP525FS **
(Model SP525FP)
-Optional Card Express slot + Mini PCI Express Slots x 2 + extra USB
** Total 5 USB ports on Model SP525P **
(Model SP525FGW)
-Optional Extra Gigabit LAN + Mini PCI Express slot + Extra USB ports
+ Extra 1394 Firewire Port
** Total 2 Giga Lan Ports on Model SP525G **
** Total 5 USB ports on Model SP525G **
(Model SP525FC)
-2 additional USB 3.0 Ports 1 x Mini PCI Express slot
-Optional Car PC version for Wide Voltage DC 10~26V input
-Car PC version support Built-in Start up and shutdown controller by car ignition
|
| Mounting bracket |
-OPtional Sliding Style Mounting Bracket
|

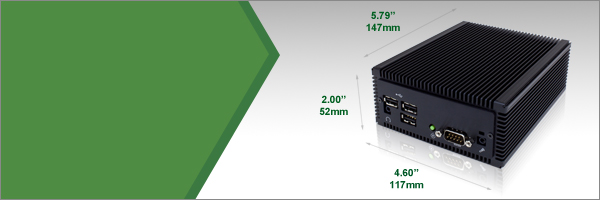

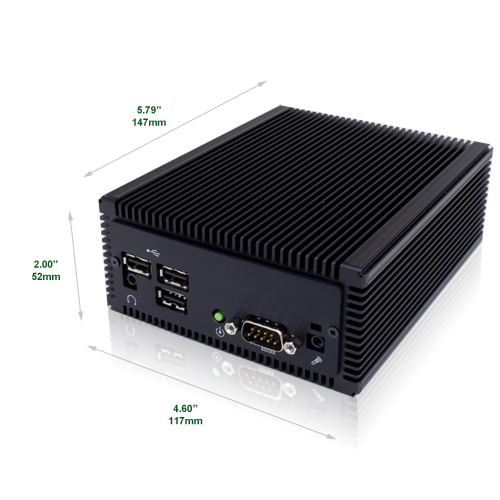

| Dimension & Weight |
4.60" x 5.79" x 2.0" (11.7 x 14.7 x 5.2cm)
0.85KG (fully equippped) |
| Operating Temperature |
-10 to 45°C |
| AC/DC Adaptor |
External 110~240V AC-DC adapter 2-pin 12V DC @ 5A 60W
|
| OS Support |
Windows XP
Windows Vista
Windows 7 (x86, x64)
Windows 8 (x86, x64)
|
| Resolution |
Support 16:9 Resolution
Support 1080p Resolution
Maximum Support Resolution:
VGA: 2048 x 1536 32-bit at 60Hz |
