Specifications |
Processor |
Intel Pentium M or Celeron M 400/533 FSB Processor |
Memory |
Support SODIMM DDR-2 400/533 x 1
Max 2GB |
Chipset |
Intel 915GM / ICH 6M (North / South) |
Video |
Intel Graphics Media Accelerator 900 |
Audio |
Realteck ALC655 AC'97 Audio
|
LAN |
Built-in high speed ethernet 100/10Mbps LAN controller (Intel Pro 10/100) |
FireWire |
Built-in OHCI 1394a 1.1 compliance
Support up to 400MB transfer rate |
USB 2.0 |
Integrated 3 independent OHCI controller supporting USB 1.1 ports
Integrated 1 EHCI controller supporting USB 2.0 ports
Dynamic connection support to USB 2.0 or USB 1.1 devices |
IDE |
Support all standard slim CD-ROM/DVD-ROM/CD-RWD/DVD-RW/Combo |
SATA |
Support 3.5" Hard drive |
Hardware Monitor |
System, processor temperature, voltage |
Power Management |
ACPI 1.0b compliance and OS direct power management
Wake-on event: RTC / USB
Keyboard / Modem / LAN / Keyboard / Mouse
Support power lost resume function
|
I / O Ports |
Front:
1 x IEEE 1394 Firewire port
1 x USB 2.0 / 1.1 port
1 x MIC port
1 x Ear phone output Jack
1 x Power-on Button
1 x Rest Button
1 x Power LED
1 x HDD LED
Back:
1 x RS232 Serial Port
1 x RJ45 10/100Mbps Ethernet port
1 x Line-out Jack
2 x USB 2.0 / 1.1 ports
1 x DVI Port (15 pins VGA Adapter included)
1 x 12v DC Power input |

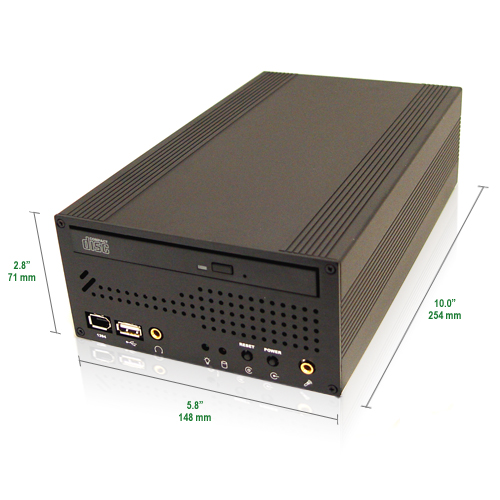

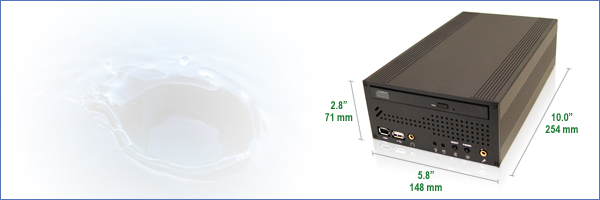

Dimension & Weight |
14.8 x 7.1 x 25.4 cm
5.8" x 2.8 x 10.0" |
AC Adapter |
Input 100~240V 60 Watt AC Universal
Output 12V DC power adapter |
Storage Devices |
Support Slim CD-ROM/DVD-ROM, CD-RW, DVD-RW Combo
Support 3.5" SATA IDE Hard drive |
OS Support |
Windows XP
|
Resolution |
Maximum Support Resolution: 2048 x 1536 32-bit @ 75Hz
Dual Display support with Optional DVI port add-on and/or splitter cable |
