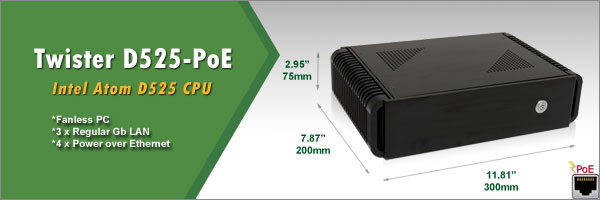

rohs compliant Twister D525-PoE
Think Big, go Thin

Features | Specifications | Picture Gallery | Power Consumption | Buy Now






Features

  • Intel D525 Atom Processor

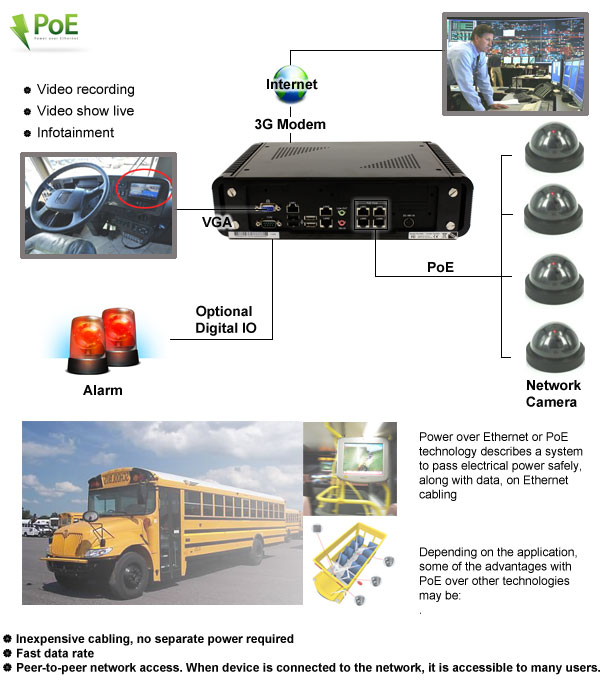

  • 4 x 802.3af PoE Ports
  • 3 x Gigabit LAN Ports
  • 4GB Max RAM
  • SIM Socket for 3G Modem (Internal)
  • 1 x PCIe Mini card for PCIe & USB interface (Internal)
  • 1 x CF Slot (Internal)


spacer
Twister D525-POE
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery

Specifications
CPU Type

Intel Atom D525 Dual-Core 1.8GHz/1MB/667 CPU

MB Chipset ICH8M (82801 HBM)
Graphics Intel Atom D525 Integrated Graphics Engine
Dynamic Video Memory Technology (DVMT 4.0)
Memory 1 x DDRIII SO-DIMM (Max. 4 GB)
SATA Two SATA ports with independent DMA operation supported
Audio Intel High Definition Audio Specification Rev.1.0 Compliant
LAN 3 x Intel 82583V 10/100/Gigabit LAN
Supports PXE boot
Supports Wake on LAN
PoE Lan 4 Port From Realtek Gigabit Switch Controller
(Microsemi 4-Port 802.3af PSE Manager)
IO Function Rear Panel:
1 x RS232/422/485
1 x Mic in
1 x Line out
3 x Gb Lans
4 x USB 2.0
1 x VGA
4 x PoE Ports
USB 4 x USB 2.0
DIO & WDT Hardware digital Input & Output, 8xDI / 8xDO
Hardware Watch Dog Timer, 0~255 sec programmable
Expansion 1 x PCIe Mini card for PCIe & USB interface (Internal)
1 x CF Slot (Internal)
Optional Features Optional Mini PCI-e TV Tuner
Optional Wifi
Optional Bluetooth
Optional Digital I/O board
Storage 1 x 2.5`` SATA hard drive, SSD drive of CF disk
Mounting Optional Wall Mount Bracket
Power 48V Power Input
Supports power loss resume feature
External 100~240V AC-DC Adapter 4-pin 48V @ 2.5A 120W
Operation Temperature 0 ~ 60°C with CF card
0 ~ 60°C with Regular SSD
Operation Humidity 5~95% @ 60°C, non-condensing

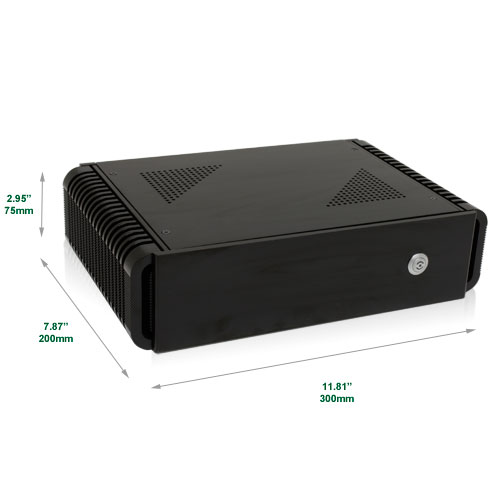

Dimension 11.81"(W) x 7.87"(D) x 2.95"(H)
Weight 6.9 lbs. Fully Loaded
OS Support Windows XP
Windows Vista
Windows 7
Resolution Support 16:9 resolution
Maximum Resolution: 2048x1536 32-bit 75 Hz
