| Specifications |
| Processor |
VIA Eden (V4)
C7 Nano-BGA2 400pin L1 128KB, L2 128KB on die |
| Front Size Bus |
400 / 533 MHz |
| Chipset |
VIA CN700 + VT8237R Plus |
| Graphics |
Integrated with VIA CN700
Shared system memory up to 64MB
MPEG-2 hardware VLD.ldct and motion compensation |
| Memory |
1 x DDRII SDRAM (max. 1GB) |
| TV-OUT (Optional) |
NTSC (M and J) or PAL (B, D, G, H, I, M, N and Nc)
Graphics resolution up to 1024 x 768 |
| Audio |
VIA Vinyl VT1612A |
| LAN |
1 x Realtek RLT8100C 10/100 Mbps |
| IO Function (Optional) |
2 x RS232
Support Infrared SIR and FIR |
| USB |
8 x USB 2.0 (2 ports external and 6 internal ports) |
| SATA |
Supports up to two channel SATA connectors (the 2nd SATA is optional)
S-ATA drive transfer rate is capable of up to 150MB/s |
| DIO & WDT (Optional) |
Hardware digital input and output, 4xDI / 4xDO
Hardware Watch Dog Timer, 0~255 sec programmable |
| Audio Amplifier (Optional) |
6W/CH Into an 8-O Load from a 12-V Supply
Up to 92% Efficient, Class-D Operation
Differential Input minimizes Common-Mode noise |
| Expand Interface (Optional) |
1 x Mini PCI socket for only PCI rev 2.2 interface |
| Power |
On Board power DC-IN +12V +/- 5% convert into system +3.3V / +12V / +5V
System provide +5V and +12V power output |

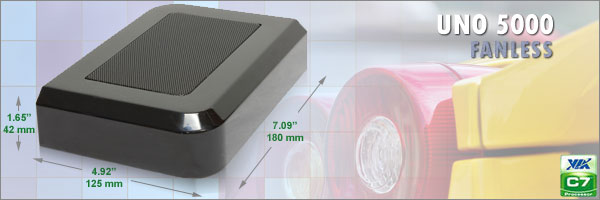

| Dimension |
42 H x 180 W x 125 D mm
VESA Compatible (VESA mount available as option) |
| Operation Temperature |
0 ~ 55C (with CF card) / 0 ~ 40C (with HDD) |
| Operation Humidity |
5+95% @ 60C non-condensing |
