Echo 77F-QRD is a Fanless PC powered by Quad Core Intel® Core™ i7/ i5/ i3 processor, DDR3 or DDR3L dual channel up to 16GB memory; Intel® HD 4000 graphics supports DVI-I, DisplayPort, and dual channel 24-bit LVDS triple independent displays; 4 front-access 2.5" Hard Disk trays (Up to 4 x Hard Drives), 4 GbE PoE+, optional M12 connection for PoE+, dual GbE LAN, 4 Mini PCIe slots, 4 SIM card sockets (3 front-access, 1 internal), 4 USB 3.0 with independent controllers, 6V to 78V wide range DC input, smart surge protection up to 200V, configurable ignition control, UPS supported, 16 isolated DIO, fanless design and Echo 77QRD In-Vehicle Fanless Embedded System delivers excellent system performance for in-vehicle mission critical applications.

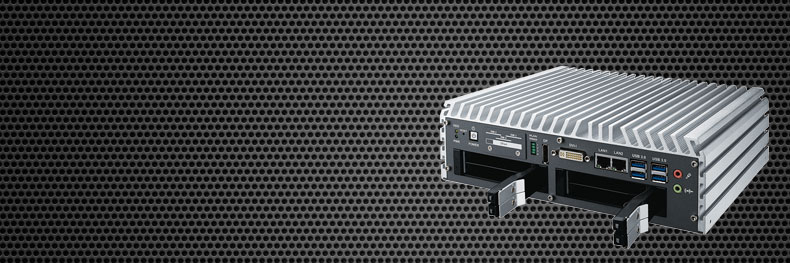

Echo 77F-QRD Fanless PC
Quad Core Intel® Core™ i7/ i5/ i3 processor
4 x Removable Hard Drives
4 x GbE PoE+ ports
Small Form Factor
Low Power Consumption PC

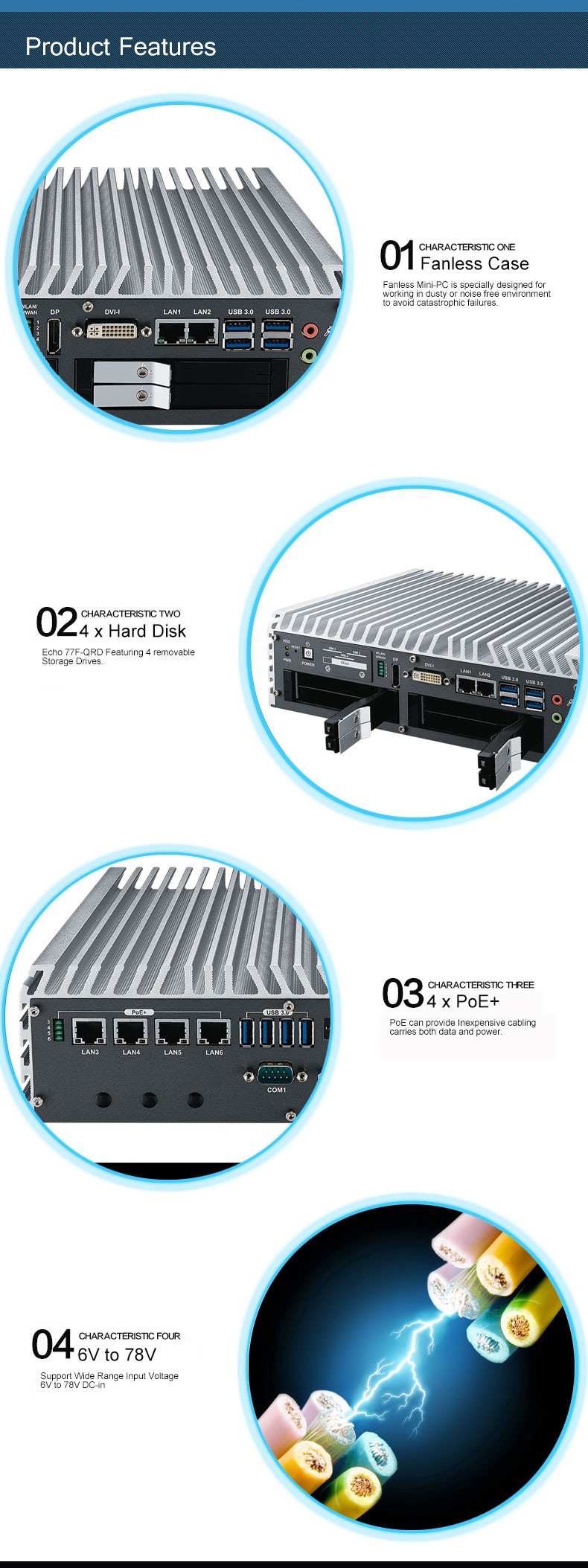

Features List
Quad Core Intel® Core™ i7/ i5/ i3 Processor
Fanless-Mini PC
4 GbE PoE+ and 2 GbE LAN
4 Mini PCIe slots
4 SIM Card sockets (3 External)
4 Front-access 2.5" Hard Drives
4 USB 3.0 with Independent controllers
Configurable Ignition Control
6V to 78V DC-in, UPS supported
EN50155 compliant
Intel® Firmware Raid 0/1/5 and 0+1 Mode (Hotswap) (Only for windows OS)
Related Products
Echo 40F Fanless Mini PC
2 x Hard Drive Slot Mobile Broadwell-U (5th Gen. i7)
Read More
SP675 Series
Small Computer
Fanless
PCI, PCI-e x1
Up to 2 x Hard Drive Mobile IvyBridge (3rd Gen. i7)
Read More
Echo 77FE
(Fanless mini PC)
PCI-E x 16
2 x SATA Hard Drives Mobile IvyBridge (3rd Gen. i7)
Read More
Echo 77FW
(Fanless Mini PC)
Wide Temperature
2 x SATA Hard Drives Mobile IvyBridge (3rd Gen. i7)
Read More
Echo 77F (Fanless Mini PC)
Wide Voltage
(6-36V)
2 x SATA Hard Drives Mobile IvyBridge (3rd Gen. i7)
Read More
Echo 77-PoE+ (Fanless Mini PC)
Wide Voltage
(6-36V)
2 x SATA Hard Drives Mobile IvyBridge (3rd Gen. i7)
Read More
Echo 77F-QRD Fanless Mini PC with 4 hard drives Specifications
Processor
Quad Core 3rd Gen Intel® Core™ i7/ i5/ i3 Processor
Bios
AMI: American Megatrends, Inc
UEFI supported.
SIO
IT8783
Video
Intel HD
(Various on Processsor)
System Memory
- DDR3 1066/1333/1600 MHz or DDR3L 1066/1333MHz
- Up to 16GB
- 2 x 204-pin SO-DIMM Socket
Audio
Realtek ALC892, 5.1 Channel HD Audio
Serial
2 x COM RS-232
2 x COM RS-232/422/485
USB
- Front : 4 USB 3.0
- Rear : 4 USB 3.0 (4 Independent Controller)
- 1 Internal USB 2.0 (Right Angle USB Connector)
- 2 Internal USB 2.0 (6-pin JST)
SIM Card
-4 SIM Card Socket (3 External, 1 Internal)
Storage
4 x 2.5" Removable Hard Drives
(2 x SATA III(6Gbps), 2 x SATA II(3Gbps))
(1 x mSATA (SATA II(3Gbps))
Intel® firmware Raid 0/1/5 and 0+1 Modes hotswap
LAN
Ethernet
LAN 1: Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2: Intel® I210 Gigabit LAN
PoE
LAN 3: Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
LAN 4: Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
LAN 5: Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
LAN 6: Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
Front I/O
Power / HDD LED
WLAN/WWAN LED
Power Button
3 x SIM Slots / CFast Slot
Display Port (**Cannot convert to Hdmi signal**)
DVI-I (Digital + Analog)
2 x Gb LAN
4 x USB 3.0
4 x Removable Hard Drives/ SSD
Mic-In / Line-Out
Back I/O
4 x PoE+
4 x USB 3.0
1 x Isolated DIO(16 Isolated DIO (8 DI, 8 DO, up to 40V Input)
1 x IGN On/Off Delay
Power Input (Terminal Block 3 pins 6V to 78V)
4 x COM Ports
Dimension & Weight

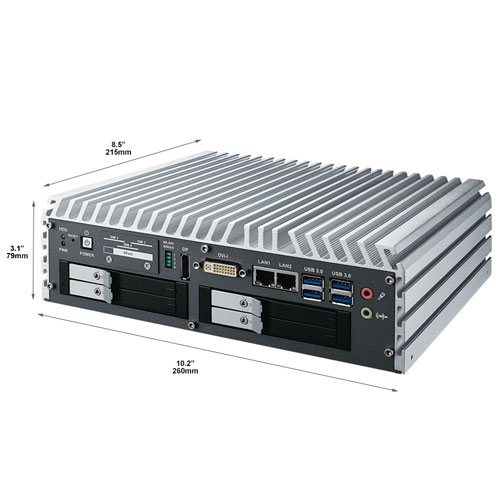

10.2"W x 8.5"D x 3.1"H
260mm(W) x 215mm(D) x 79mm(H)
9.26lb. Fully Loaded
Power Management
Watch Dog Timer Available
Operating & Storage Temperature
Operating Temperature:
0 ~ 40C with Hard Disk
0 ~ 60C with SSD
Storage Temperature: -40 ~ 85C (-40 ~ 185F)
Operating Humidity: 5% to 95% humidity, non-condensing
Relative Humidity: 95% at 70C Shock: - IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms Vibration- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis EMC: CE, FCC, EN 50155, EN 50121-3-2
Power Supply
External 110~240V AC-DC adapter 24V@3.75A 90W
Power Loss Resume feature available
Surge Protection: Up to 200V/1ms Transient Power
Ignition control: 16 Modes
Mounting
-L Shape Mounting Included
Expansion Slot
- 1 Mini PCIe Socket (PCIe + USB + Internal SIM), optional with mSATA
- 3 Mini PCIe Socket (PCIe + USB + External SIM)
