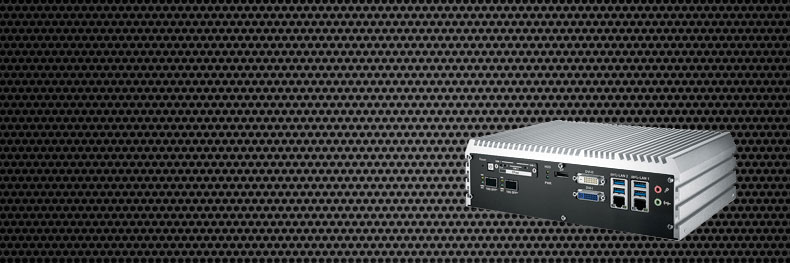

Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10GE SFP+ Fiber Optic LANs and 4 GigE PoE Ports

is an all-in-one high-performance embedded engine featured with (10GE, 10GbE, or 10 GigE) SFP+ Fiber LAN. Powerful quad-core 7^th and 6^th generation Intel® Core™ i7 (Kaby Lake / Skylake-S) engine running with 15% enhanced productivity than former generation, Intel® C236 chipset, dual channel DDR4 memory at 2133MHz, up to 32GB. Advanced Intel® Graphics 530 supports DVI-I, DVI-D, and DisplayPort interfaces, up to 3 independent displays(DisplayPort itself support 4K) It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10GE SFP+ Fiber Optic LANs and 4 GigE PoE Ports is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

Echo-236FO-10GS-IoT-Device-Fanless-Mini-PC-with-Dual-10G-SFP+_Fiber-Optic-LANs and 4 PoE

Echo 236FO-10GS Fanless PC

7 ^th and 6 ^th Generation Intel® (Kaby Lake / SkyLake-S)

2 x 10GE LAN Fiber Optic LAN
Small Form Factor Fanless Industrial
Low Power Consumption Fanless Industrial PC

Features List

7^th and 6^th Generation Intel® Core™ i7 Mobile Processor (Kaby Lake / SkyLake-S)
Fanless Mini PC Industrial Design
1 Front-access CFast Socket
3 Front-access SIM Card sockets (Required Separate Mini PCIe Modem)
2 Internal 2.5" SSD/ HDD
2 x Gb LANs
4 x GigE PoE (Power Over Ethernet)
2 x (10GE, 10GbE, or 10 GigE) 10 Gigabit Ethernet Fiber Optic LANs 10GBASE-T SFP+
DVI-I/ DVI-D/ DisplayPort Interface, up to 3 independent 4K displays(DisplayPort only)
6 x USB 3.0
4 x COM Ports
16 GPIO
Configurable Ignition Power Control for In-Vehicle user
Power off delay up to 24 hours
6V to 36V DC-in, 80V Surge Protection
Fanless, -25°C to 55°C Operating Temperature when pair with special Memory and SSD
Intel® Firmware Raid
EN50155 compliant

Specifications

System
Processor	7^th and 6^th Generation Intel® Core™ i7 Mobile Processor (Kaby Lake and SkyLake-S)
Chipset	Intel® C236
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2133MHz SO-DIMM, up to 32GB
I/O Interface
Serial	- 4 COM RS-232/ 422/ 485
USB	- 6 USB 3.0 (External) - 1 USB 2.0 (Internal)
GPIO	16 GPIO
LED	Power, HDD
SIM Card	3 SIM Card Socket (External) (Additional Mini PCIe Modem required)
Expansion
Mini PCIe	3 Mini PCIe Socket : - 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA - 1 Half-size for PCIe/ USB
Graphics
Graphics Processor	- Intel® HD Graphics 530
Interface	- DVI-I : Up to 1920 x 1080 @ 60Hz - DVI-D: Up to 1920 x 1080 @ 60Hz - DisplayPort: Up to 4096 x 2304 @ 60Hz
Storage
SATA	2 SATA III (6Gbps)
mSATA	2 SATA III (Mini PCIe Type, 6Gbps)
SATA DOM	1 SATA II (3Gbps)
M2DOM	1 PCIe 3.0 (8GT/s)
Storage Device	- 1 CFast Socket, Push-in/ Push-out Ejector - 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec	Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface	1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1	Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2	Intel® I210 Gigabit LAN
LAN 3 PoE	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 PoE	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 PoE	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 PoE	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 7 10G Fiber	Intel® X710-BM2 10 GigE LAN supports IEEE 802.3 10GBASE-T SFP+
LAN 8 10G Fiber	Intel® X710-BM2 10 GigE LAN supports IEEE 802.3 10GBASE-T SFP+
Power
Power Input	Wide Voltage 6V to 36V, DC-in
Power Interface	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Ignition Control	16 Mode(Internal)
Remote Switch	3-pin Terminal Block : On, Off, IGN
Surge Protection	Up to 80V/1ms Transient Power
Power Adapter	Input universal AC 100~240V; Output DC 24V/120W
Others
Trusted Platform Module (TPM)	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimensions (W x L x H)	260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)
Weight	3.8 kg (8.38 lb)
Mounting	- L shape Mounting bracket (Included) - VESA mounting (Optional) - 2U Rackmount (Optional) - DIN Rail Mount 35mm Wide (Optional)
Operating System
Windows 10	Supported
Windows 8	Supported
Windows 7	Supported (6^th Gen CPU only)
Linux	Supported
Environment
Operating Temperature	-25°C to 55°C With Special Wide Temperature memory and SSD and 35W CPU -25°C to 40°C With Special Wide Temperature memory and SSD and 65W CPU 0 to 40°C with Hard Disk 0 to 55°C with SSD
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	10% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
EMC	CE, FCC, EN 50155, EN 50121-3-2
