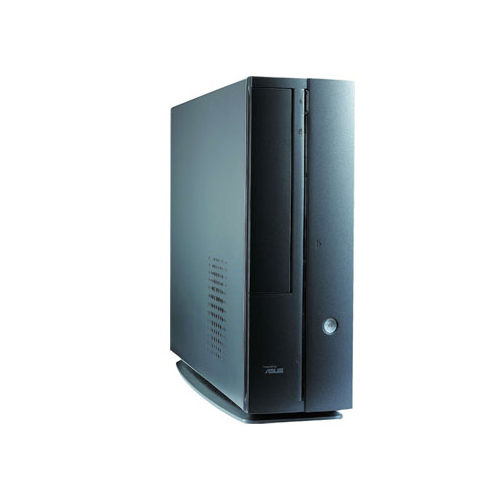

The P1-PH1 is large on style and multimedia power, yet takes up little space. The P1-PH1 leveraged a host of industry-leading specifications for building an all around multimedia powerhouse. When space is at a premium, the P1-PH1 will also be the most fitting fine works for your precious desk real estate.
The Pundit P1-PH1 is large on style and multimedia power, yet takes up little space. The P1-PH1 leveraged a host of industry-leading specifications for building an all around multimedia powerhouse. When space is at a premium, the P1-PH1 will also be the most fitting fine works for your precious desk real estate.
All-Around Multimedia Machine
The Pundit P1-PH1 provides rich features for multimedia applications. DVI output, D-sub, S-video, TV output, S/PDIF input/output, 5.1 channel audio, a CF card reader and 3-in-1 card reader (MS, SD, MMC) are just some of the excellent offerings.
Recover Pro-Your Files are in Good Hands
No need to worry about losing your data due to virus attacks anymore! The ASUS Pundit series is equipped with the Recover Pro software that assures dynamic and continuous data protection. It automatically creates multiple restore points for easy file recovery even without booting OS.
Latest in Personal Computing
The Pundit P1-PH1 featured the latest in personal computing technology to raise productivity.
- Support the 64bit Pentium 4 CPU up to 3.8GHz.
- Support Dual DDR2 667/533/400 memory
- Video powered by ATI's Radeon® X300 graphics engine

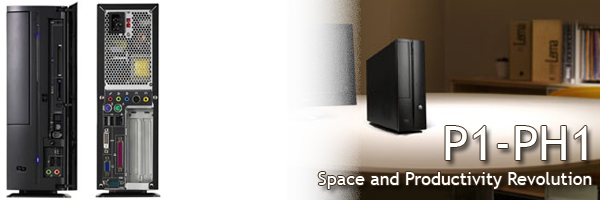

Creative Space Utilization
The Pundit P1-PH1, with its creative slim design, is a perfect space-saving solution for cluttered desks.
ASUS Q-Fan Technology
ASUS Q-Fan automatically adjusts CPU fan speed based on system loading and temperature to ensure a quiet and distraction-free working environment.
| Specifications |
| CPU |
Intel P4 up to 3.8 GHz (Northwood/Prescott)
Socket 775
800/533 MHz
|
| Chipset |
ATI Radeon Xpress 200 |
| Memory |
2 x DIMM
DDR2 667/533/400
Support max. 2GB
|
| Expansion Slots |
2 x PCI |
| Graphics |
Integrated Radeon X300 based graphics |
| IDE |
1 x ATA 100 |
| S-ATA |
1 x SATA |
| LAN |
10/100Mbps |
| Audio |
RTL ALC655
6 Channels
|
| Dimension |
91 x 357 x 275 (WxHxD) mm
3.58" x 14.05" x 10.83" |
| Front Panel |
1 x CF card reader
1 x 3-in-1 card reader
1 x S/PDIF out
1 x S/PDIF in
2 x IEEE 1394 (6pin/4pin)
2 x USB 2.0
1 x Microphone
1 x Headphone
|
| Rear Panel |
2 x USB 2.0
1 x Line-in/Line-out/Mic-in
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel port
1 x D-sub (VGA out)
1 x DVI-out (VGA out)
1 x S-Video (TV out)
1 x Composite (TV out)
1 x RJ45 LAN
1 x Serial port
|
| Power Supply |
250W (PFC) |
| Key Features |
Q-fan technology
Recovery Pro
AntiVirus Solution
CrashFree BIOS2
Ez Flash BIOS
My Logo2 |
| O/S Support |
Windows 2000/XP |
|
|
