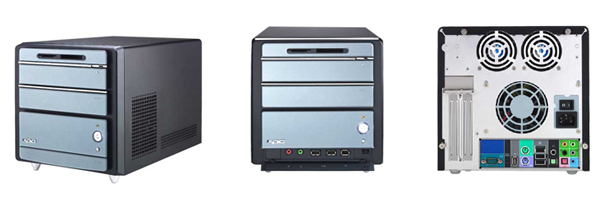

The XPC SB95P V2 with 925XE North bridge sits at the top of the XPC performance ladder for Intel compatible models. With features including Pentium 4 processors, dual-channel DDR2 533MHz memory and high-bandwidth PCI-Express graphics cards, this model delivers the power gamers and enthusiasts clamor for. Further, with up to three hard drives, 4GB of DDR2 memory, high-definition audio and cutting-edge Matrix RAID Storage Technology, you get more features than systems costing twice as much.
DDR2 is the next-generation evolution of DDR memory technology. DDR2 memory features faster speeds, higher data bandwidths, lower power consumption and enhanced thermal performance.
Features
- 1.8 Volts operation, lower power consumption
- "On-Die memory Termination" prevents reflected signal transmission errors.
- Operational enhancements to increase memory performance, efficiency and timing margins
- 400MHZ and 533MHz modules up to 1GB per module
InTel Graphics Media Accelerator 900 (GMA900)
Intel's new integrated graphics architecture raises the bar for integrated graphics. With PCI-E x 1 improved bandwidth, GMA900 also features 333MHz graphics core and 32bpp True Color Support for sharper and more detailed images. In addition, DX8/DX9 support and enhanced 3D performance features such as software Vertex Shadier and Shadow Mapping mean the GMA900 delivers great 2D performance and key 3D performance.
Intel Matrix Storage Technology
The innovation continues with the introduction of Intel Matrix RAID Technology, which combines the benefits of RAID 0 performance and RAID 1 protection on two hard drives.
| Specifications |
| Processor |
Intel Socket 775 Pentium 4 / Celeron
Dual-channel DDR2 533/400
(2) DIMM slots (2GB max)
|
| Features |
Intel 925XE + ICH6-R chipset
Intel Graphics Media Accelerator 900
DVMT memory architecture
1066/800/533 MHz FSB
32-bit PCI slot x 1
16x PCI Express slot
|
| IEEE 1394A |
Complies with 2 IEEE1394a up to 400Mb/s data transfer rate |
| Audio |
Digital (SPDIF) audio ports
Analog audio ports
|
| Fast Ethernet |
Gigabit LAN |
| Storage |
Serial ATA 150 headers x 4 RAID (0, 1) with Intel Matrix Storage FDD header
IDE header
5.25" storage bay x 1
3.5" storage bays x 3
|
| Front Panel I/O |
6-in-1 card reader
USB 2.0 ports x 2
Firewire 400 port
Microphone port
Headphone port
Power button
Rest button
|
| Rear Panel I/O |
Firewire 400 port
VGA-out
Gigabit LAN (RJ-45)
8-Channel audio out
SPDIF I/O ports
Coaxial Audio port
Serial port
CMOS Reset button
Optional Parallel Port
|
| Dimension |
300(L) x 210(W) x 220(H) mm
Weight (net / gross; kg.lbs) 4.25 (9.35) / 6.05 (13.31)
|
| Material |
Aluminum |
| Power |
Input: 100 ~ 240V AC
Output: 350W(PFC)
EMI Certified: FCC, CE, BSMI
Safety Certified: UL, TUV, CB
Power Cord: Depends on specific region demand
|
| Accessories |
1 x Mainboard User Manual
1 x Mainboard CD-Driver
1 x XPC Installation Guide
1 x I.C.E. Technology CPU heat-pipe
1 x FDD Cable
1 x HDD Cable
1 x Serial ATA Cable
1 x CD-ROM Cable
1 x Power Cord
1 x Screws Pack
Twin Adhesive
Front Feet |
|
|
