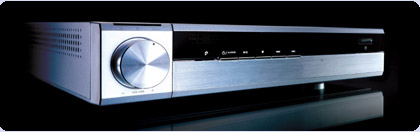

DigiMatrix Multifunctional Slim PC

Features | Specifications | Picture Gallery | Drivers | Discontinued


The DigiMatrix is a smart personal computer and a versatile home entertainment system in one. The DigiMatrix delivers the cutting edge technology for your computing and multimedia entertainment needs. DigiMatrix comes with a slim CD-ROM (when you purchase a complete system. It is upgradable to DVD, DVD+CDRW (slot-loading available) or DVDR-W drive ) , TV and FM tuner, 7-in-1 card reader, wireless LAN, and 6-channel digital audio in a compact and stylish casing.


The DigiMatrix supports the latest Intel Pentium 4/Celeron processor with up to 2.6GHz core frequencies and up to 2GB of system memory. Providing the best connectivity for external devices and peripherals are eight (8) USB 2.0 ports, fast Ethernet and Gigabit LAN ports, IEEE 1394 port, and S/PDIF interface. The DigiMatrix includes an IEEE 802.11b compliant wireless network adapter to support your wireless networking needs.


The DigiMatrix features the most silent multimedia system to give you pure acoustic enjoyment. With the DigiMatrix Multi-Functional Slim PC, you don't need anything else!




  • Quiet, Cute, Quality PC
  • Supports CD/CD-R/VCD/DVD/MP3/Karaoke/Picture-CD Playback
  • High quality TV output (Supports HDTV display output)
  • TV/Video Recorder
  • Enjoy and record FM radio

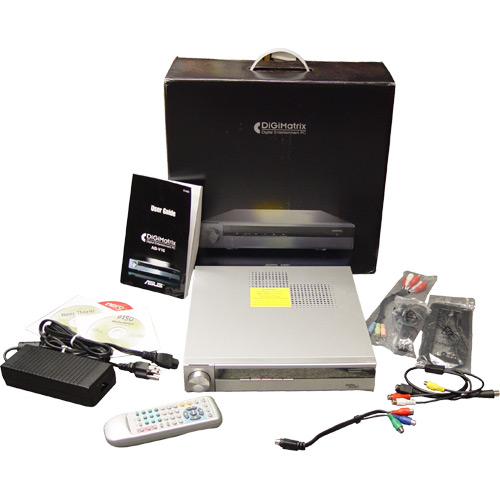

Pictures Gallery

Processor & Cache

- Intel Socket 478 Northwood

- Up to P4/Celeron 2.4 GHz

Memory - PC2700/2100 DDR 333/266 up to 2GB 2 DIMM Slots
Motherboard - P4SQ (proprietary)
- SiS 651/962L Chipset
- FSB 533/400MHz
Graphics - SiS 315 3D graphic integrated
- 64MB shared memory architecture
- Support VGA, DVI-D, HDTV, S-Video
Audio - AC97 SW audio, 6 channel codec
- S/PDIF audio output
- Audio DJ play buttons
- Audio CD/MP3 playback
- FM radio studio
TV-Tuner - Time-shifting, Pre-schedule recording
- S-VIdeo TV-Out
- HDTV 1080i, 720i, 525i
- Mini PCI interface
LAN - 10/100 Mbps
- Giga bps
- Wireless 802.11b WiFi
- Mini PCI interface
7-in-1 Memory Reader - Compact Flash Type I/II
- MicroDrive
- Memory Stick
- Memory Stick Pro
- Secure Digital
- MultiMedia Card
- Smart Media Card
IDE - 2 x UltraDMA 133/100/66
- 1 x 3.5 HDD
- 1 x Slim Type ODD
Front I/O

- USB 2.0 x 4
- IEEE 1394 * 2 (4 pin, 6 pin)
- S/PDIF-OUT x 1
- MIC Phone x 1
- Head Phone x 1
- 7-in-1 memory card reader
- 802.11b wireless antenna
- LED module display
- IR receiver for remote control
- Audio DJ play buttons, Volume control knob
- Slim type ODD x 1
- Power button

Rear I/O

- USB 2.0 x 4
- PS/2 KB, PS/2 Mouse
- VGA, DVI-Out
- S-Video TV-Out, HDTV-Out
- TV-in
- RJ45 x 2(1 x 10/100Mbps, 1 x 1Gbps)
- Line-in/out
- 6 channel audio out
- FM studio antenna

Dimension - 285(W) x 53(H) x 290(D) mm



Home Theater

  • Connect to TV/HDTV/LCD and enjoy big screen gaming and your favorite movies
  • Program record TV shows at 640*480 resolution at 30fps
  • Preview all the channels to easily select a show you want to watch
  • Time shift: Don't miss anything!
  • Enjoy high quality DVD/CD/CD-R/CD-RW/Picture-CD/Karaoke playback
  • High quality LED display

Digital Center

  • Connect to digital still cameras, digital camcorders, PDAs, or mobile phones
  • 3 * LAN connections ( 1x10/100Mbps, 1x1Gbps, 1*802.11b WiFi)
  • Scheduled cable TV recording
  • Capturing, editing, authoring, burning videos/sound/pictures
  • 7-in-1 memory card reader (CF Type I / II, Microdrive, MS, MS Pro, SD, MMC, SMC)
  • Email/Web browser

Hear-Music Club

  • Listen to Audio CDs
  • Listen to FM radio
  • Schedule FM radio recording
  • Build a list of your favorite FM radio stations

Main Features

  • Quiet, Cute, Quality PC
  • Support CD/CD-R/VCD/DVD/MP3/Karaoke/Picture-CD Playback
  • High quality TV output (support HDTV display output)
  • TV/Video Recorder (Record to HDD)
    Enjoy and record FM radio studio (Power off mode available)
  • Audio CD/MP3 music CD player (Power off mode available)
  • Capture, edit, author, and burn videos/photos in one machine
  • 7-in-1 Memory card reader
  • 1x10/100Mbps, 1x1Gbps, 1x802.11b WiFi LAN support
  • Software Wireless Access Point
  • Front Panel LED Display
  • Includes Remote Control
  • Flexible connectivity with USB(8 ports), IEEE1394, S/PDIF, S-Video, TV-out, VGA, DVI, RJ45 (2 ports), Wireless LAN, 6 channel audio out, Line-in/out, MIC/Head phone, PS/2 KB/Mouse
