Specifications |
CPU |
Socket |
PBGA437 |
Type |
Intel ATOM N270 1.6GHz CPU |
FSB |
533 MHz |
Chipset |
NB |
Intel 945GSE Chipset |
SB |
ICH7M |
Memory |
Channel |
Single Channel |
Type |
DDRII SO-DIMM x 1 |
DDRII |
DDRII 533/667 |
Max Memory |
2GB |
Graphics |
Chip |
Intel GMA 950GSE |
DVI Port |
1 x DVI-I port |
VGA Port |
1 x VGA (via DVI to D-Sub Converter) |
Storage |

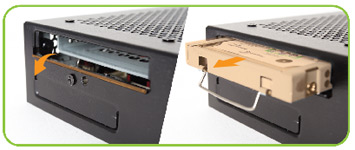

1 x 2.5`` SATA II HDD / CF disk / SSD Bay |
Expansion Slot |
1 x Mini PCI Express Slot
1 x Front Access Bootable CF slot
|
Audio |
Type |
Realtek HD Audio Codec ALC662 |
Channel |
Stereo |

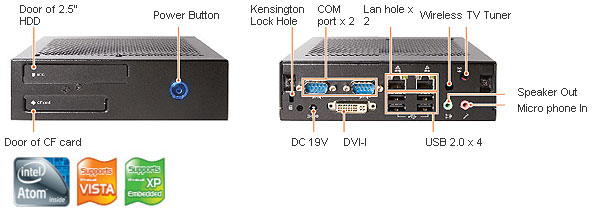

IO Port |
1 x Mic-in
1 x Line-out |
LAN |
2 x Realtek RT8111DL Gigabit LANs
-Support PXE boot
-Support Wake on LAN
|
USB 2.0 |
4 x USB 2.0 (Rear) |
COM Port |
2 x RS232 COM ports onboard |
Security |
1 x (Rear) |
CPU Thermal |
Proprietary Fan Less Thermal Solution |
WatchDog Timer |
1 ~ 255 Sec/min |
Power Management |
Power Loss Resume Feature |
Adapter |
External 110~240 AC-DC adapter 19V@3.5A 65 |
Dimension |
WxHxD (mm) |
166 x 48 x 157 |
WxHxD (inch) |
6.54" x 1.89" x 6.18" |
Weight (Kg/Pound) |
1.22kg / 2.68 pound (N.W.) |
Optional Features |
Optional Wifi
Optional Bluetooth |
Mounting |
A Pair of Right-Angle L-shape mount included
Optional Dual VESA mounting bracket
|
OS Support |
Windows XP
Windows Vista 32-Bit
Windows 7 32-Bit
Windows 2003 Server (32-Bit)*
Ubuntu Linux
Fedora Linux
|
Resolution |
Support 16:9 Resolution (But not 1080p)
Max. Support Resolution: 2048 x 1536 32-bit at 75Hz |
Environment |
MTBF |
40,000 Hours |
Operating Temperature |
0°C ~ 40°C (32°F~104°F) |
Storage Temperature |
-20°C ~ 60°C (-4°F~140°F) |
Relative Humidity |
90% RH (40°C non-Condensing) |
Operating Vibration |
0.5Grms, Random, 10~500Hz, X,Y,Z 3Axes, 0.5hr/Axis |
Non-Operating Vibration |
2Grms, random, 10~300Hz,X,Y,Z 3Axes, 1hr/Axis |
Operating Shock |
8G, Half sine, 11ms duration |
Non-Operating Shock |
50G, Half sine, 11ms duration |
