| Specifications |
| CPU |
Socket |
Socket P |
| Type |
Support Intel Core 2 Duo
Celeron CPU (Santa Rosa & Santa Rosa Refresh) |
| FSB |
667 / 800 / 1066Mhz |
| Chipset |
NB |
Intel GM 45 |
| SB |
ICH9M Chipset |
| Memory |
Dual Channel |
Dual Channel |
| Type |
200-pin DDRII SO-DIMM x 2 |
| DDRII |
667 / 800 |
| Max Memory |
2 x 4GB (8GB)* |
| |
NOTE: *Required 64bit OS to fully use of 4GB or more memory |
| Graphics |
Chip |
Integrated VGA Engine in GM45 Chipset (Intel GMA X4500MHD) |
| VGA Port |
2 x VGA |
| HDMI Port |
1 x HDMI Port |
| Expansion Slot |
1 x Mini PCI Express slot |
| Audio |
Type |
Realtek ALC662 HD Audio CODEC on-board |
| Channel |
Stereo / 5.1 CH with HDMI |
| LAN |
Intel 82567LF Gigabit LAN
Support PXE Boot
Support Wake on LAN |
| USB 2.0 |
USB 2.0 Port x 4 (2 Rear, 2 Front) |

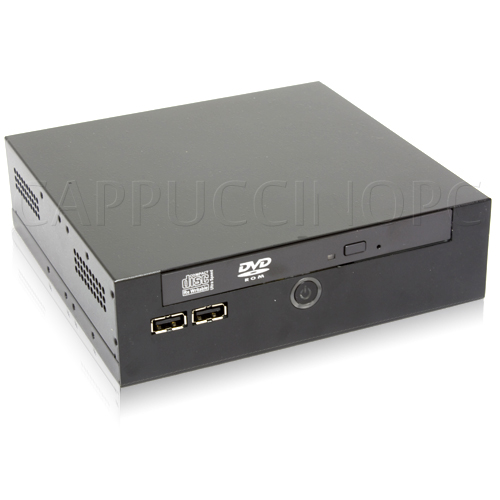

| Chassis |
1 x Slot-in Slim SATA Optical Drive Bay (Support BlueRay Drive)
1 x 2.5`` SATA II HD / CF disk / SSD Bay |
| Front Panel IO: |
1 x Power Button
1 x HDD Indicator (Blue)
1 x Powere Indicator (Blue)
2 x USB 2.0 Port |
| Rear Panel IO: |
1 x HDMI Port
2 x USB 2.0 Port
1 x RJ45 LAN Jack
1 x RS232 Serial Port
1 x DC 20V Jack
2 x D-Sub VGA Port
1 x 2.1 Channel Audio I/O Ports (Line-Out, Mic-In) |
| Security |
1 x Kensington Lock Hole |
| CPU Themeral |
Module: AOpen Proprietary Fan Thermal Module |
| WatchDog Timer |
1 ~ 255 Sec/min |
| Power Management |
Power Loss Resume Feature |
| Adapter |
External 110~240V AC-DC adapter 20V@4.5A 90 |
| Dimension |
WxHxD (mm) |
160 x 48 x 157 |
| WxHxD (inch) |
6.54" x 1.89" x 6.18 |
| Weight (Kg/Pound) |
1.22kg / 2.68 pound (N.W.) |
| Optional Features |
Optional TV Tuner
Optional Wifi
Optional Bluetooth |
| Mounting |
A Pair of Right-Angle L-shape mount included
Optional Dual VESA mounting bracket
|
| OS Support |
Windows XP
Windows Vista
Windows 7
Windows 2003 Server (32-Bit)*
Windows 2008 Server (32-Bit)*
Ubuntu Linux
Fedora Linux
Debian Linux
RedHat Linux
|
| Resolution |
Support HDTV 1080p
Support 16:9 Resolutions
Max. Resolution: 2048 x 1536 32-bit @ 60Hz |
| Environment |
| MTBF |
40,000 Hours |
| Operating Temperature |
0 ~ 50°C (32~122°F) |
| Storage Temperature |
-30 to 60°C (-22~140°F) |
| Relative Humidity |
90% RH (45°C non-Condensing) |
| Operating Vibration |
0.5 Grms, Random, 10~500Hz, X,Y,Z 3 Axes, 0.5hr/Axis |
| Operating Shock |
8G, Half sine, 11ms duration, X,Y,Z 3Axes, 6 direction, 3 shocks/direction |
| Certification |
CE, FCC, UL, CB |
