| CPU
Type |
|
VIA
Eden ESP 5000 Processor |
| Chipset |
|
VIA
Apollo PLE133, VT8601A North Bridge, VT8231 South Bridge |
| Hard
Drive |
|
Support
one 3.5" or 2.5" UDMA 33/66/100 IDE Hard Drive |
| RAM |
|
Two
168-pin DIMM memory sockets supports 1GB PC100/133 SDRAM |
| Video |
|
Integrated
AGP4X w/2D/3D Graphics acceleration, motion compensation
for DVD playback, VIP port for video overlay function |
| Resolution |
|
Max
Resolution support up to 1600 x 1200 |
| CD/DVD/CDRW |
|
Support
on Slim type CD-ROM, DVD-ROM, CD-RW or CD-RW+DVD Combo |
| Floppy |
|
None
(optional external USB floppy drive available) |
| I/O
Ports |
|
1
x Line In
1 x Line Out
1 x Mic In
4 x USB 1.1 Port (Two in front, two in rear panel)
1 x ECP/EPP Parallel port
1 x 9-pin Serial port
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x RCA TV out
1 x S-Video out
1 x RJ45 LAN port
1 x PCI Slot |
| Sound |
|
VIA
VT1612A AC'97 onboard, Sound Blaster, Sound Blaster Pro
compatible, Digital I/O compatible |
| Dimension |
|
11.5"
x 10.75" x 2.5" |
| Power
Adapter |
|
External
AC Adapter, Input AC100-240V ~ 1.8A, output DC 12V, 4.58A
(55W Max) |
| Weight |
|
Approximately
8 lbs. (Fully loaded) |
| Network |
|
VIA
10/100 Ethernet Onboard |

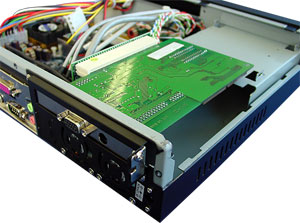

| Expansion
& Optional Adapter |
|
One
PCI slot for any full size PCI Card |
| Operating
Temperature |
|
0
to 50 degree Celsius |
| O/S
Support |
|
Windows
9x/ME/2K/XP/NT/Novell Netware/UnixWare 1.1/SCO Unix 4.2 |
