| Specifications |
| Processor |
Supports up to Intel Pentium 4 3.2 GHz
Intel Prescott Ready (with PCB v1.2)
400 / 533 / 800 Front Side Bus
Intel Hyper-Threading Technology
|
| Chipset |
ATI Radeon 9100 IGP + IXP 150 |
| Memory |
Two DDR400 Slots
Dual Memory Channel Architecture
Up to 2GB in Total System Memory
Make sure the total number of memory chips on the modules is 16 or less. If the total number of memory chips is greater then 16, they will operate at 333MHz (DDR333), not 400MHz (DDR400) |
| Expansion Slots |
1 x AGP (8X)
1 x PCI
|
| IO Ports |

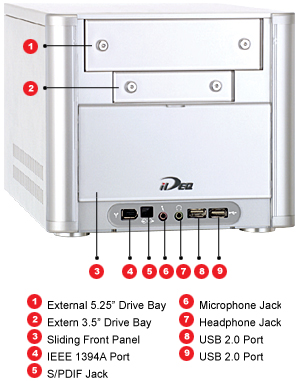

Front
2 x USB 2.0
1 x S/PDIF Output
1 x Microphone
1 x Head Phone
1 x IEEE 1394A

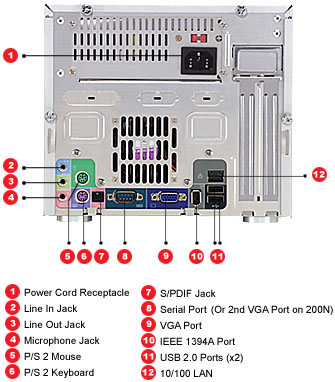

Rear
2 x USB2.0
1 x S/PDIF Output
1 x IEEE 1394A
1 x LAN
1 x VGA
1 x Serial
2 x PS/2
1 x Line-in
1 x Line-out
1 x Mic
|
| IDE |
Accommodates up to 2 EIDE devices
Ultra DMA 33/66/100/133 Bus Master Mode
|
| Serial ATA |
VIA VT6420
SATA RAID 0,1
Supports up to 2 SATA drives
|
| Video |
Integrated Radeon 9100 Graphics |
| Audio |
Realtek ALC655 6-Channel Audio |
| 1394A |
VIA VT6307 |
| LAN |
Realtek RTL8100C 10/100Mbps LAN |
| Size |
210mm x 323mm x 187mm (W x D x H) |
