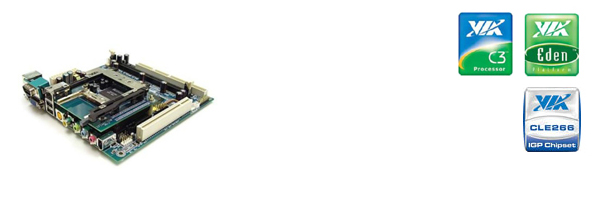

Providing the signature low profile, minimal noise and reduced power of the VIA EPIA series on a 17 by 17cm small form factor, the VIA EPIA MII Mini-ITX Mainboard is an "all-in-one" entertainment platform geared to the digital home. The VIA EPIA MII-Series easily slots in to a digital home infrastructure providing a vast horizon of applications that feature sophisticated connectivity including wired or wireless media servers, mobile PCs, receivers for the living room and beyond.
The VIA EPIA MII is available with the fanless VIA EdenT ESP processor for ultra low power, quiet or silent system designs, or the VIA C3T processor for rich media-intensive applications. Enhanced multimedia performance is further delivered through the VIA CLE266 chipset featuring integrated VIA UniChromeT 2D/3D graphics and an MPEG-2 accelerator with motion compensation, along with support for the greater memory bandwidth of DDR266 SDRAM and the high transfer speeds of ATA-133.
An array of modern storage and connectivity options are supported, including onboard CardBus, CompactFlash, and a PCI slot. The VIA EPIA MII also offers support for the latest in high bandwidth connectivity through IEEE 1394, USB 2.0 connections, as well as S-Video and RCA TV-Out (NTSC & PAL) and 10/100 Mbps Fast Ethernet. The VIA EPIA MII also offers support for a number of embedded LCD panels and is fully compatible with Microsoft® Windows® and Linux operating systems. The VIA EPIA MII can be fitted into a full range of Mini-ITX chassis as well as FlexATX and MicroATX enclosures and power supplies.
Features
- VIA C3T/ VIA EdenT EBGA Processor
- Fanless Version Available
- Onboard CardBus Type I & Type II
- Onboard CompactFlash
 |
| Mini-ITX VIA VEPD Motherboards |
|
|

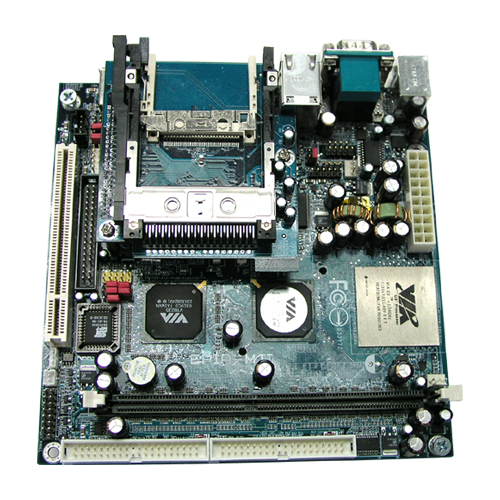

VIA EPIA-MII6000E / CCM01 / LVDS01 Motherboard
with VIA Eden 600MHz Fanless Processor |
$217.00 |
 |
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
|
|
| Expando C137 |
Expando C138 |
Expando 2699 |
|
 |
 |
|
|
|
|
| Unicomp 3677 |
Unicomp 3688 |
|
|
|
|
|
| Specifications |
| Processor |
VIA C3T/ VIA EdenT EBGA processor
|
| Chipset |
VIA CLE266 North Bridge
VIA VT8235 South Bridge
|
| System Memory |
1 DDR 266 DIMM Socket
Up to 1GB Memory Size |
| VGA |
Integrated VIA UniChrome AGP Graphics with MPEG-2 Accelerator |
| Expansion Slots |
1 x PCI Slot |
| Onboard Card Bus |
CardBus Type I & Type II |
| Onboard CF |
Ricoh R5C476 II / R5C485 CardBus Controller |
| Onboard IDE |
2 x UltraXMA 133/100/66 Connectors |
| Onboard Floppy |
1 x FDD Connector |
| Onboard LAN |
VIA VT6103 10/100 Base-T Ethernet PHY |
| Onboard Audio |
VIA VT1616 6 channel AC'97 Codec |
| Onboard IEEE 1394 |
VIA VT6307S IEEE 1394 (Optional) |
| Onboard TV-Out |
VIA VT1622A TV Out |
| Back Panel I/O |
1 x CardBus Type I and Type II slot
1 x Compact Flash slot
1 x RJ45 LAN port
1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x Serial port
2 x USB 2.0 ports
1 x VGA port
1 x RCA port (SPDIF or TV-Out)
1 x S-Video port
1 x 1394 port
3 x Audio jacks: line-out, line-in and mic-in (Smart 5.1 support)
|
| Onboard I/O |
1 x USB connector for 2 additional USB 2.0 ports
1 x Front panel audio connectors (mic-in and line-out)
1 x CD Audio in connector
1 x Buzzer
1 x FIR connector
1 x CIR connector (Switchable for KB/MS)
1 x Wake-on-LAN
1 x LPT port header
1 x Connector for LVDS module
3 x Serial port connector for 3 additional com port; 3/4 com port with power jumper selection (Default power setting is 5V)
1 x ATX power connector
1 x CPU/Sys FAN / Fan 3
1 x Connector for LVDS module (optional)
1 x Serial port connector for second COM port
1 x ATX power connector |
| BIOS |
Award BIOS
2/4 Mbit flash memory |
| System Monitoring |
CPU voltage monitoring
Wake-on-LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery |
| Operating Temperature |
0 ~ 50°C |
| Operating Humidity |
0% ~ 93% (relative humidity; non-condensing) |
| Form Factor |
Mini-ITX (6 layer)
17cm x 17cm |
|
Noise Emissions
PPC noise emissions are usually provided in idle, hard drive accessing and DVD playing modes. The designed fan heatsink on the VIA EPIA MII10000 does not alter speed as the CPU loading changes, result consistently low noise level. The fan heatsink model used on the VIA EPIA MII10000 is the Arkua 309R-AW4B.
Declared Noise Emissions in accordance with ISO 9296
VIA EPIA MII 1000
| Drivers for VIA EPIA-MII Mainboard |
| Category |
Description |
Size |
FTP |
| Flash Utility |
Award BIOS Flash Utility v8.23b |
39 KB |
 |
| BIOS |
EPIA MII BIOS v1.35 (01/13/2004) |
257 KB |
|
| 4-IN-1 |
VIA 4-IN-1 Driver v4.48 |
1.29 MB |
|
| Audio |
VIA Audio Driver v4.50b |
4.32 MB |
|
| LAN |
VIA LAN Driver v3.4 |
3.59 MB |
|
| Fast InfraRed |
VIA FIR Driver v.120d |
5.37 MB |
|
| Integrated VGA |
VIA Integrated VGA Driver |
68.72 MB |
|
| USB 2.0 |
VIA USB 2.0 Driver v2.56 |
15.34 MB |
|
| Manual |
VIA EPIA-MII Mainboard Manual v1.10 |
526 KB |
|
| Manual |
VIA EPIA-MII Mainboard Manual v1.00 |
2.18 MB |
|
|
|
