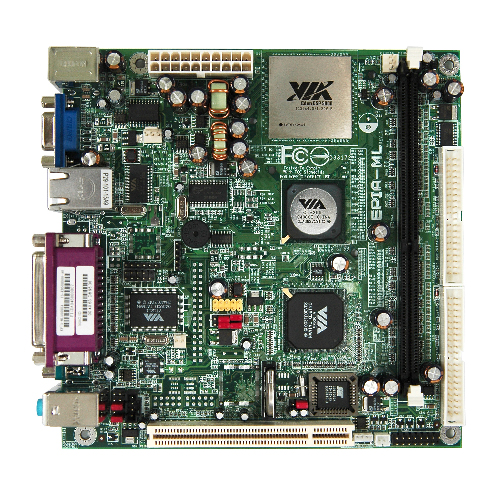

The VIA EPIA ML-Series Mini-ITX Mainboard is an ultra-compact native x86 platform optimized for today's demanding embedded and productivity applications. At just 17cm x 17cm, the Mini-ITX form factor can fit into very cramped spaces that are not suitable for other motherboard form factors, and is fully compatible with Microsoft® and Linux Operating Systems. Available with an embedded VIA EdenT ESP processor for fanless systems with ultra low-power requirements, or an embedded VIA C3T processor for more demanding digital multimedia applications, the VIA EPIA ML-Series is the perfect platform for a whole range of small form factor, low-power and affordable PCs and embedded devices.

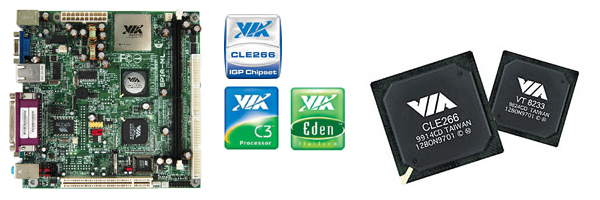

The EPIA ML-Series' VIA CLE266 chipset features a hardware-based MPEG-2 accelerator for silky smooth DVD playback, and integrated 2D/3D graphics for a rich multimedia experience. With the sizable memory bandwidth of DDR266 SDRAM and the high data transfer speeds of ATA/133, the EPIA ML-Series ensures the high performance levels required of today's most popular productivity and digital media applications. The user's digital media experience is further enhanced by support for 5.1 surround sound, courtesy of the onboard VIA VT1616 6-Channel AC'97 codec.
High-bandwidth connectivity is supported with up to four USB 2.0 connections provided, as well as 10/100 Ethernet for seamless broadband connectivity. The EPIA ML-Series also has one PCI slot for expandability options and is compatible with a full range of Mini-ITX chassis as well as FlexATX and MicroATX chassis.
Features
- VIA C3T/ VIA EdenT EBGA Processor
- Fanless Version Available
- 1 DDR266 DIMM (1GB Max)
- Integrated VIA UniChrome AGP Graphics
 |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
| SlimPRO C134 |
Expando 2699 |
Expando C137 |
Expando C138 |
 |
 |
|
|
|
|
| Unicomp 3677 |
Unicomp 3688 |
|
|
|
|
|
| Specifications |
| Processor |
VIA C3T/ VIA EdenT EBGA processor
|
| Chipset |
VIA CLE266 North Bridge
VIA VT8235 South Bridge
|
| System Memory |
1 DDR 266 DIMM Socket
Up to 1GB Memory Size |
| VGA |
Integrated VIA UniChrome AGP Graphics with MPEG-2 Accelerator |
| Expansion Slots |
1 x PCI Slot |
| Onboard IDE |
2 x UltraXMA 133/100/66 Connectors |
| Onboard LAN |
VIA VT6103 10/100 Base-T Ethernet PHY |
| Onboard Audio |
VIA VT1616 6 Channel AC'97 codec |
| Back Panel I/O |
1 x PS/2 Mouse port
1 x PS/2 Keyboard port
1 x Parallel port
1 x RJ45 LAN port
1 x Serial port
1 x USB 2.0 ports
1 x VGA port
3 x Audio jacks: line-out, line-in and mic-in (Smart 5.1 support) |
| Onboard I/O |
1 x USB connector for 2 additional USB 2.0 ports
1 x Front-panel audio connectors (mic-in and line-out)
1 x CD Audio-in connector
1 x Buzzer
1 x FIR connector
1 x CIR connector (Switchable for KB/MS)
1 x Wake-on-LAN connector
1 x CPU/Sys FAN / Fan 3
1 x SMBus connector
1 x Serial port connector for a second com port
1 x ATX power connector |
| BIOS |
Award BIOS
2 Mbit flash memory |
| System Monitoring |
CPU voltage monitoring
Wake-on-LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery |
| Operating Temperature |
0 ~ 50°C |
| Operating Humidity |
0% ~ 93% (relative humidity; non-condensing) |
| Form Factor |
Mini-ITX (4 layer)
17cm x 17cm |
|
| Drivers for VIA EPIA-ML Mainboard |
| Category |
Description |
Size |
FTP |
| Flash Utility |
Award BIOS Flash Utility v8.23b |
39 KB |
 |
| BIOS |
EPIA ML BIOS v1.02 with TV out function |
250 KB |
|
| BIOS |
EPIA ML BIOS v1.01 patch Win98SE can't wake by PS2 |
249 KB |
|
| 4-IN-1 |
VIA 4-IN-1 Driver v4.43 |
1.68 MB |
|
| Audio |
VIA Audio Driver v3.40b |
3.43 MB |
|
| LAN |
VIA LAN Driver v3.1 |
3.27 MB |
|
| Fast InfraRed |
VIA FIR Driver v1.20d |
5.37 MB |
|
| Integrated VGA |
VIA Integrated VGA Driver v16.94.39.14 |
107.33 MB |
|
| USB 2.0 |
VIA USB 2.0 Driver v2.54 |
1.85 MB |
|
| Manual |
VIA EPIA-ML Mainboard Manual v1.3 |
616 KB |
|
| Manual |
VIA EPIA-ML Mainboard Manual v1.0 |
5.21 MB |
|
|
|
