Mocha P4 5043 Product Specifications (Discontinued)

The Mocha P4 PC (5043) is a full-featured Mini PC that is small, lightweight and compact. This PC runs on a whole wide range of general business and personal productivity applications, making it ideal for use in the office, or at home.


 SiS 651


 Support for an Intel Pentium 4 processor in mPGA478 socket with a 400/533 MHz system bus.
 Support for an Intel Celeron processor in mPGA478 socket with a 400/533 MHz system bus.
 Runs on the latest Intel Socket 478 Pentium 4 CPU that includes 512KB Advanced Transfer Cache. The P4 CPU is available clock speeds starting at 1.6GHz.
 Intel processor ensures your PC is fully compatible with an entire library of PC software based on server al operating systems especially Windows 98, Windows ME, Windows NT, Windows 2000, Windows XP, and Linux

Main Memory

 Provides one 200pins DDR SODIMM (Small Outline Dual Inline Memory Module) memory slot for main system memory configuration up to maximum 1GB.
 Uses DDR266/333 SODIMM module at 128MB, 256MB, 512MB module and 1GB Module.

Audio System
   Built-in 16-bit stereo Sound Blaster compatible, full duplex 3D Stereo Sound
 Built-in Speaker
 One 3.5mm microphone input jack
 One 3.5mm earphone jack

Flash BIOS

 Flash EPROM BIOS allows you to easily upgrade the system BIOS using the Flash utility program


 Built-in high-capacity 2.5-inch (9.5mm and 12.5mm high) Hard Disk Drive and supports Ultra-DMA 66/100/133
 Built-in CD-ROM or DVD-ROM or CD-RW or Combo Drive
 USB port External Floppy Disk Drive


 Built-in full-motion video accelerator
 Hardware motion compensation for Software MPEG-2 (DVD playback)
 Integrated 64MB shared Memory
 Supports up to 1600 by 1200 pixel resolution at 24-bit color
 15-pin mini D-sub VGA connector for external monitor
 AGP 2.0 compliant (4X)

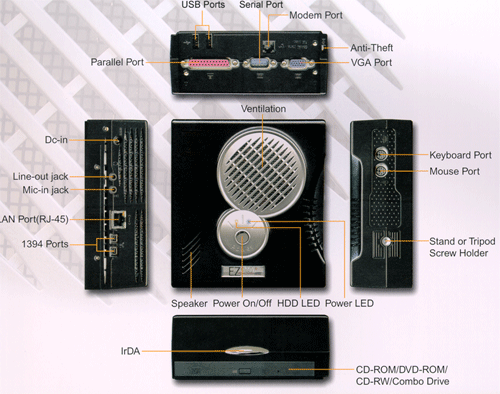

I/O Ports
   2 x 4 pins mini type Firewire 1394 Ports
 2 x USB 2.0 Ports
 1 x 9-pin Serial Port (RS-232)
 1 x 25-pin Parallel Port (EPP/ECP)
 1 x 6-pin PS/2 Mouse Port
 1 x 6-pin PS/2 Keyboard Port

   Built-in Realtek 8139 10/100MB Fast Ethernet (RJ45)
 Built-in PCtel HSP56MR 56K V.90 Modem (RJ11)

Electrical Requirements

 Auto sensing AC input 110-240V at 2.5A, DC output 20V at 6.0A
 Maximum Power 120 Watts

Data and Media Storage

 One 2.5" 12.5mm high hard drive (ATA 133/100/66)
 One ATAPI-IDE interface for high speed slim type CD-ROM, DVD-ROM, CD-RW, or DVD-Combo

Weight and Size

 Weight: approximately 1050g (2.31 lbs)
 Dimension: 157mm x 146mm x 56mm (6.18" x 5.75" x 2.2")
