The MP945-D brings the latest Mobile on Desktop (MoDT) technology to market by offering tremendous power and connectivity in a super compact, quiet, and low power consuming solution. Featuring support for Intel Core 2 Duo processors, dual-channel DDR2 SODIMM memory (up to 4GB) and myriad of I/O and peripheral connectivity like DVI, 1394, four USB 2.0 ports, Wireless 802.11b/g (optional) and more, the MP945-D is a Microsoft Windows Vista Premium ready.
The MP945-D with one more DDR2 SO-DIMM memory slot, can have up to 4GB of dual-channel memory for improved system speed and performance. The MP945-D’s neat, stylish design and compact size means it blends in perfectly with any home entertainment setup. Because of its whisper quiet (27db) operation, it can be used in the living room, in the study, in a dorm room, or anywhere a noisy system is undesirable.
| Power Consumption in Watts |
|
|
 |
| Special Options and Upgrades |
|
 |
 |
 |
 |
 |
| MiniPCI WiFi 802.11G |
MiniPCI TV Tuner |
Built-in Bluetooth |
U Shape Wall/Desk Mounting Kit |
Dual Vesa
Mounting Kit |
|
|
|
|
 |
 |
Powered by Intel® Core 2 Duo Technology
The Intel® Core™2 Duo desktop processor delivers revolutionary dual-core performance and breakthrough processor energy efficiency.
|
Genuine Windows Vista™
Microsoft Windows Vista™ offer a whole new way to manage your precious memories, your music and your life, all with an enhanced sense of security. |
 |

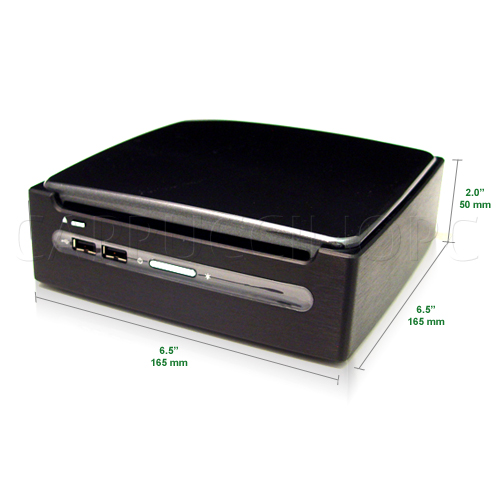

 The MP945-D is certified to work seamlessly with Microsoft Windows XP Media Center Edition (MCE), or Windows Vista. The appliance-like remote operation makes it easy to enjoy videos, photos, music and games, from anywhere in the room. The MP945-D lets you experience true home multimedia entertainment along with great PC performance. Available in black color the MP945-D bare bone miniPC measures 165×165×50mm and weighs approximately 1.45kg. |
 Your family from your kids to grand mom can learn the way to operate it in a short time and have fun while sitting in the sofa. Also, you will satisfy and enjoy the latest Windows Vista Premium without extra cost for best home entertainment experience. |
 The MP945-D’s neat, stylish design and compact size means it blends in perfectly with any home entertainment setup. Because of its whisper quiet (27db) operation, it can be used in the living room, in the study, in a dorm room, or anywhere a noisy system is undesirable. The appliance-like remote operation makes it easy to enjoy videos, photos, music and games, from anywhere in the room. The MP945-D lets you experience true home multimedia entertainment along with great PC performance.
The Intel® 945GM Express chipset and ICH7M controller provide the performance and support that allows the MP945-D to integrate into a range of entertainment solutions. Features include 4 USB 2.0 ports, Gigabit Ethernet, Wireless IEEE 802.11 b/g (optional), Bluetooth module (optional), 5.1 channel sound, S/PDIF digital output, DVD±RW and a SATA II 2.5” HDD. Display support includes DVI (D-sub x1)/S-Video/Y-Pb-Pr that not only can connect to LCD displays, but can also drive big screen TVs for the ultimate viewing experience. |
| Pandora Specifications |
| Main Spec. |
CPU |
Intel Core 2 Duo / Core Duo Processor |
| Form Factor |
Proprietary |
| Chipset |
Intel 945GM + ICH7M |
| Special Features |
Standard |
Microsoft Vista Premium Ready |
| DVI / YPbPr / S-Video |
| D-Sub |
| 5.1 Channel |
| Gigabit LAN / 1394 / SATA II |
| USB 2.0 2 (Rear) / 2 (Front) |
| Dual Channel SO-DIMM DDRII 533/677 x 2 |
| Optional |
Super Multi / Combo (Optional) |
| TV Tuner (Optional) |
| Wireless 802.11 b/g (Optional) |
| Bluetooth Module (Optional) |
| Size WxHxD (mm) |
165(W) x 50(H) x 165(D) |
| Size WxHxD (inch) |
6.49(W) x 1.96(H) x 6.49(D) |
| Volume (liters) |
1.36L |
| Weight (Kg / Pound) |
1.45kg / 2.4 pound (N.W.) |
| Color |
Black |
| Power Solutions |
Two-phase voltage stabilization |
| Memory |
Type |
Dual Channel DDRII SODIMM x 2 |
| DDRII |
400 / 533 / 667 |
| Max Memory |
4.0 GB |
| CPU |
Type |
Socket M 479
Intel Core 2 Duo (Merom)
Intel Core Duo / Core Solo CPU (Yonah)
Intel Celeron M CPU |
| FSB |
533 / 667 |
| VGA |
Intel 945GM OnDie (Intel GMA 950) |
| DVI Connector |
Yes |
| VGA Output Port 15 Pins D-Sub |
Yes (by DVI to DVI+VGA Y Cable) |
| HDMI Interface (w/o Digital Audio) |
Yes (by Converter) |
| TV Out |
Multi-TV Out
(Composite + S-Video + Y/Pb/Pr |
| CPU Thermal |
Proprietary super quiet FAN (below 27dB) |
| miniPCI Slot |
1 |
Build in High Definition
Audio or AC97 Codec |
Type |
5.1 CH |
| Line-In |
1 |
| Line-Out |
1 |
| Mic-In |
1 |
| S/PDIF / Optical Out |
Yes (by converter) |
| LAN (RJ-45) |
Intel 10 / 100 / 1000 Mbps |
| S-ATA Connector |
1 |
| IEEE 1394 |
1 (Rear) |
| Chassis |
ODD Bay |
Slot-in Slim ODD x 1 |
| Front Cage |
None |
| 2.5" HDD Bay |
2.5" SATA HDD x 1 |
| Power Supply |
90W DC Adapter (19V, 4.74A) |
| Input Voltage |
AC 100~240V |
| Operating Temperature |
10 ~ 35°C |
| Storage Temperature |
-10 ~ 48°C |
| Operating Humidity |
5 ~ 95%RH |
| Supported OS |
Windows XP / MCE / Vista |
| Remote Control |
None |
|
|
