| Specifications |
| Processor |
Intel Celeron CPU
Intel Pentium 4 Processor running at 1.2GHz w/ Hyper-Threading
|
| Chipset |
Intel 865GV / ICH 5 (North / South) |
| System Memory |
2 x DDR 400/333/266 DIMM slot
0.8" low profile
Maximum 2GB with 512Mb technology |
| Video |
Intel Extreme Graphics 2
Support up to 64MB DVMT video memory
|
| Audio |
Software AC'97 Audio CODEC |
| LAN |
Built-in high speed ethernet 10/100Mbps LAN controller |
| Firewire |
Built-in OHCI 1394a 1.1 compliance
Support up to 400Mbps transfer rate |
| USB 2.0 |
Integrated 4 independent OHCI controller supporting USB 1.1 ports
Integrated 1 EHCI controller support USB 2.0 ports
Dynamic connection support to USB 2.0 or USB 1.1 devices |
| IDE |
Dual independent ATA-100/66/33 support
Support up to 4 IDE devices on dual channel
|
| Hardware Monitor |
System, processor temperature, voltage |
| Power Management |
ACPI 1.0b compliance and OS direct power management
Wake-on event: RTC/USB
Keyboard / modem / LAN / keyboard / mouse |
| Switch and Jumpers |

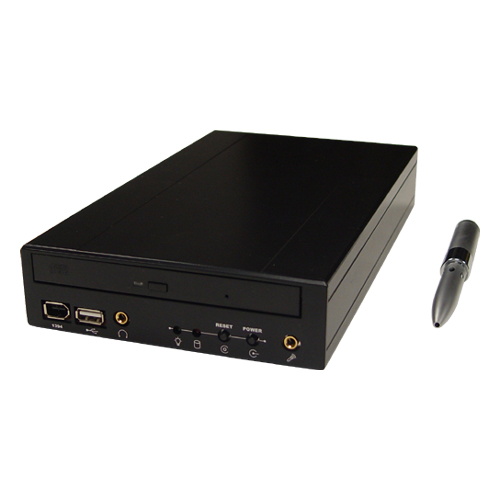

Front Panel:
1 x IEEE 1394 Firewire port
1 x USB 2.0 / 1.1 port
1 x Mic port
1 x Ear phone output jack
1 x Power-on button
1 x Reset button
1 x Power-on and HDD LED
Back Panel:
1 x RS232 COM port
1 x Parallel printer port
1 x RJ45 10/100Mbps Faster Ethernet port
1 x Line-out output jack
2 x USB 2.0 / 1.1 ports
1 x 15 pin VGA
1 x 12v DC power jack input |
| Dimension & Weight |
14.6 x 25 x 4.2 cm
1.7KG (fully equipped)
|
| AC/DC Adaptor |
Input 100~240V 84 Watt AC Universal
Output 12V DC out |
| Storage Devices |
Support all standard slim CD-ROM / DVD-ROM / CD-RW / DVD-RW combo
Support all 2.5" standard IDE hard drive, ATA 100/66/33 |
