| Specifications |
| Processor |
Support Intel Pentium 4 Processor up to 2.0GHz
Support Intel Celeron Processor up to 2.0GHz
Actual running speed will be at 1.30GHz |
| Memory |
Support Dual-Channel DDR 400/333/266 DIMM
Maximum up to 2 GB
Uses Low-Profile (0.75") Memory if CD ROM is used |
| Chipset |
Intel 865GV / ICH 5 (North / South) |
| Video |
Intel Extreme Graphics 2
Support up to 64MB DVMT Video Memory |
| Audio |
Software AC97 Audio CODEC |
| LAN |
Built-in high speed Ethernet 10/100Mbps LAN controller |
| FireWire |
Built-in OHCI 1394a 1.1 compliance
Support up to 400MB transfer rate |
| USB 2.0 |
Integrated 4 independent OHCI controller supporting USB 1.1 ports
Integrated 1 EHCI controller supporting USB 2.0 ports
Dynamic connection support to USB 2.0 or USB 1.1 devices |
| IDE |
Dual Independent ATA-100/66/33 support
Support up to 4 IDE devices on dual channel |
| PCI Slot |
Support 1 x PCI Card and length up to 24cm |
| Hardware Monitor |
System, processor temperature, voltage and fan speed monitor
Auto Thermal FAN speed control |
| Power Management |
ACPI 1.0b compliance and OS direct power management
Wake-on event: RTC / USB
Keyboard / Modem / LAN / Keyboard / Mouse |

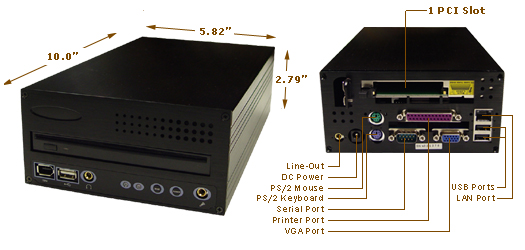

| I / O Ports |
Front:
1 x IEEE 1394 Firewire port
1 x USB 2.0 / 1.1 port
1 x MIC port
1 x Ear phone output Jack
1 x Power-on Button
1 x Rest Button
1 x Power LED
1 x HDD LED
Back:
1 x RS232 Serial Port
1 x Parallel Port
1 x RJ45 10/100Mbps Ethernet port
1 x Line-out Jack
2 x USB 2.0 / 1.1 ports
1 x 15 pins VGA
1 x 12v DC Power input |
| Dimension & Weight |
10.0" x 5.82" x 2.79"
14.8 x 25.4 x 7.1 cm
2.5kg (fully equipped) |
| AC Adapter |
Input 100~240V AC Universal Output 12V DC power adapter |
| Storage Devices |
Support Slim CD-ROM/DVD-ROM, CD-RW, DVD-RW Combo
Support 2.5" standard DE Hard drive |
