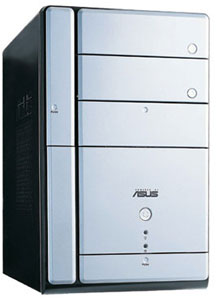

Charisma, versatility and power: these three words best sum up the features of the ASUS Terminator 2 (T2) desktop barebone system. A new stylish chassis design unites aesthetics and ergonomics, while advanced features merge flexibility and expandability with robust computing.
 |
 |
 |
| 7-In-One Card Reader |
2 5.25" Drive Bays |
 |
|
| Smart Fan |
|
|
Elegance for office and home
Whether it's your office or living room, the T2 adds style to its surroundings. Available in blue and black, this latest desktop offering also includes ergonomically convenient designs such a LED display for operation status and four drive bays to provide storage flexibility.
Powerful performance
The T2-R Standard supports Intel socket 478 Northwood/Prescott Pentium 4 and high-speed 800MHz system bus for processing speed up to 3.06GHz+ and DDR 400 for ample storage capacity and memory-hungry applications.
Application expansion
T2-P is equipped with the latest industry standards such as USB 2.0, Serial ATA and AGP 8x to provide a complete solution.
Multimedia support
Team it with S/PDIF digital output and 6-channel audio enables, the T2 is a high-quality sound system. Furthermore, with exhilarating graphics right of the box, this new ASUS desktop is ready for the latest 3D games and movies.
| Specifications |
| CPU |
Intel P4 up to 3.06 GHz + (Northwood and Prescott)
Socket 478
800 / 533 MHz FSB |
| Chipset |
North Bridge: Intel 865G
South Bridge: ICH 5 |
| Memory |
2 x DIMM
DDR400 / 333
Support Max. 2.0GB |
| Expansion Slots |
1 x PCI
1 x AGP 8X |
| Graphics |
Intel Extreme Graphics 2 Integrated |
| IDE |
2 x ATA 100 |
| S-ATA |
2 x SATA |
| LAN |
10/100 Mbps |
| Audio |
ADIAD 1888
6 Channel Codec |
Dimension (mm)
W x H x D |
190 x 310 x 300 |
| Drive Bays |
2 x 3.5" (1 x Internal; 1 x FDD)
2 x 5.25" |
| Front Panel |
2 x USB 2.0
1 x Microphone
1 x Headphone
1 x SPDIF Out |
| Rear Panel |
4 x USB 2.0
1 x Line-in / Line-out / Mic-in
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Parallel Port
1 x D-sub (VGA Out)
1 x Game / MIDI
1 x RJ45 LAN
1 x Serial Port |
| Power Supply |
200 W (PFC/none PFC) |
| OS Support |
Windows 2000 / XP |
| Key Features |
MCE Compatible |
|
|
