SLIMPRO SP300 1 Bay PC: Fully Functional Pentium III system Up to 1.4Ghz

Fanless Solution Now available

Intel® Corp. Ultra Low Voltage Intel® Celeron® Processors at 650 MHz and 400 MHz,
Competitive Performance Evaluation versus VIA Technologies Mini-ITX EPIA M10000 and EPIA ME6000 CPUs



  • Fully Functional Pentium III system Up to 1.4Ghz

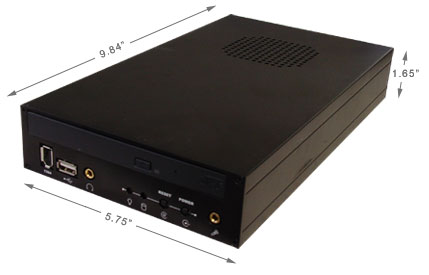

  • Compact Size : 5.7” x 9.8” x 1.65” (1X 5.25” Bay)
  • Fit into Standard PC case “PC-in-a-PC”
  • Heavy Duty Aluminum casing and ragged designing
  • On-board LAN, USB 1.1, firewire, Serial, Parallel and sound.
  • CD/DVD/ CDRW-DVD exchangeable for multi-media and Data
  • PC104 slot for easy customizing and upgrading
    (Compact Flash, 4 LAN, 4 Serial Ports and more……)
  • 12Volt DC power input that fit into automobiles boats and etc…
  • Easy mounting for all industrial and home applications
    (Back of LCD Display, wall and under-desk)
  • Ideal for Kiosk, POS, Educational, Data Center …or .Personal Desktop….
  • Support Windows XP, 2K, 9X, NT, Linux

Optional U-Shape Mounting Kit available (mount your SP300 or SP600 PC on walls, desks, or under the desk)





Specifications

Processor


Intel Pentium III up to 1.4 Ghz
Intel Celeron Processors

System Chipset


Intel 815EG North, I/O: Intel Hub 2 (South)

Memory
  256, 512, SDRAM, PC133 up to 512MB

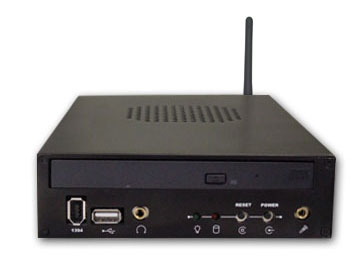

Wireless Network (Optional)
   IEEE 802.11b
 Operating Frequency: 2.4 GHz
 Data Rate: 11Mbps/5.5Mbps/2Mbps/1Mbps (with dynamic adjustment)
 Modulation: DSSS (Direct Sequence Spread Spectrum)
 Operating Power: 5.0V
 Working Range: Indoor - Up to 50m @ 11Mbps, 80m @ 5Mbps or lower
 Working Range: Outdoor - Up to 150m @ 11Mbps, 300m @ 5Mbps or lower
 Security: 64/128-bit WEP (Wired Equivalent Privacy) Encryption
 Antenna: External Antenna
 Supports Windows 98SE/ME/2000/XP, Linux

Internal Storage


2.5" Hard Disk Drive, Option. 10-80GB, UltraDMA/100
Optional: Slim CD-ROM/DVD-ROM, CD-RW

Video

Onboard (DB15) SVGA, 2D/3D
VGA, SVGA, XGA, SXGA in 16.7M Colors

I/O Ports


1 - Serial RS-232, 16C550 UARTS with 16-byte FIFO
1 - Parallel
1 - PS/2 for Keyboard
1 - PS/2 for Mouse
3 - USB 1.1 Ports, 1 front, 2 rear
1 - Firewire, IEEE-1394, Lucent FW323 Chipset, 400Mb transfer rate

Ethernet Port
  Intel 82562ET 10/100 LAN controller, RJ-45 Connector

Audio
  Software AC 97 Audio CODEC, 1-line-in, 1-Mic-Out, 1-Earphone

Operating Temperature
  Operating temperature: 10C ~ 35C
Non-operating temperature: -40C ~ 70C
Non-operating humidity: 20% ~ 90% (non-condensing)
Operating Systems
  MS-Windows 98 / 2000 / NT / XP - Embedded / LINUX

Power Management


ACPI and OS direct power management Wake-on Event
RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse

Options


2 COM ports (1 Onboard, 1 optional adapter board)

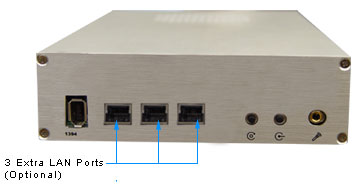

4 LAN ports (1 Onboard, 3 optional adapter board)
Compact Flash reader optional adapter board

Dimensions


10" x 5.7" x 1.6" (254mm x 145mm x 41mm) L x W x H

Shipping Weight


< 3.0lbs. (Depending on configuration)

Chassis Description


Ultra light extruded Aluminum
Power on, reset button on and HDD LED's
Cooling Fans: Internal CPU only

Power Input


+12VDC (mini-jack input)
AC Adapter 100~240 Volts AC Input, 12VDC @5A output
