SLIMPRO SP600 2 Bay PC: Fully Functional Pentium 4 system Up to 2.8Ghz (Discontinued)
  • Fully Functional Pentium 4 system Up to 2.8Ghz

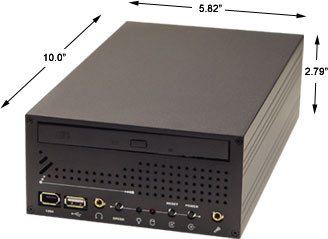

  • 5.82"(W) x 10.0"(D) x 2.79"(H) (14.8 x 25.4 x 7.1 cm)
  • Heavy Duty Aluminum casing and ragged designing
  • On-board LAN, USB 2.0, firewire, Serial, Parallel and sound.
  • CD/DVD/ CDRW-DVD exchangeable for multi-media and Data
  • 19Volt DC power input that fit into automobiles boats and etc…
  • Easy mounting for all industrial and home applications
    (Back of LCD Display, wall and under-desk)
  • Ideal for Kiosk, POS, Educational, Data Center …or .Personal Desktop….
  • Support Windows XP, 2K, 9X, NT, Linux

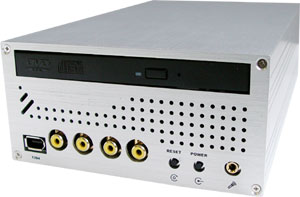

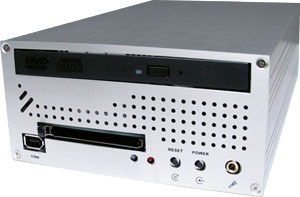

4 Video-in RCA ports Type II PCMCIA

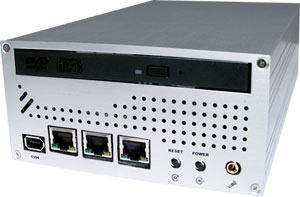

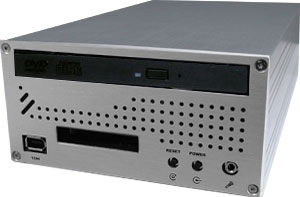

3 Extra LAN ports CF Reader

*Note: Front access earphone jack, USB, Power LED / HDD LED is not available with 4 DVR, PCMCIA, CF, and 4LAN options. Option systems are in silver color.

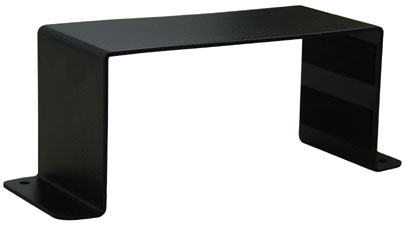

Optional U-Shape Mounting Kit available (mount your SP300 or SP600 PC on walls, desks, or under the desk)




Processor


Intel Pentium 4 Processor (Willmate and Northwood 478)
Core frequency 1.7GHz to 2.8GHz
System Chipset


SiS 651 / 962 (North / South)
FBS Support up to 533MHz
Integrated multi-threaded I/O link ensures concurrence of up/down stream data transfer with 1.2GB/s bandwidth
High throughout Connect interfaced to SiS962 Media I/O
Integrated RTC and DMA interrupt and keyboard controller
Memory
  Support 4 banks, 2 un-buffer DDR 333/266/200 DIMM
Maximum 2GB, with 512MB technology
Wireless Network (Optional)
   IEEE 802.11b
 Operating Frequency: 2.4 GHz
 Data Rate: 11Mbps/5.5Mbps/2Mbps/1Mbps (with dynamic adjustment)
 Modulation: DSSS (Direct Sequence Spread Spectrum)
 Operating Power: 5.0V
 Working Range: Indoor - Up to 50m @ 11Mbps, 80m @ 5Mbps or lower
 Working Range: Outdoor - Up to 150m @ 11Mbps, 300m @ 5Mbps or lower
 Security: 64/128-bit WEP (Wired Equivalent Privacy) Encryption
 Antenna: External Antenna
 Supports Windows 98SE/ME/2000/XP, Linux

Video


Fully AGP v2.0 compliant
High performance 256-Bit 3D/128-Bit 2D Graphic engine
Dual video overlay windows for Mirror Mode display
Audio

Software AC97 Audio CODEC
PCI IDE


Dual Independent ATA-133/100/66 support
Support up to 4 IDE devices on dual channel
Network
  Built-in high speed Ethernet 100/10MBps LAN controller
USB
  Integrated 3 independent OHCI controller supporting USB 1.1 Port
Integrated 1 EHCI controller supporting USB 2.0 port
Dynamic connection support to USB2.0 or USB1.1 devices
Firewire
  Built-in OHCI 1394a 1.1 compliance
Support up to 400MB transfer rate
Power Management
  ACPI 1.0b compliance and OS direct power management
Wake-on-event: RTC / USB / Keyboard / Modem / Keyboard / Mouse
Operating Temperature
  Operating temperature: 10C ~ 35C
Non-operating temperature: -40C ~ 70C
Non-operating humidity: 20% ~ 90% (non-condensing)
Hardware Monitor


System, processor temperature, voltage and fan speed monitor
Auto Thermal FAN speed control
Switch and Jumpers


Front Panel:
- 1x Ear phone port
- 1x IEEE 1394 Firewire port
- 1x USB2.0 / 1.1 Port
- 1x MIC Port
- 1x Ear phone output jack
- 1x Power-on Button
- 1x Reset Button
- 1x Power-on and HDD LED

Back Panel:
- 1x RS232 COM port
- 1x Parallel Printer port
- 1x RJ45 10/100MB Faster Ethernet
- 1x Line-out Output Jack
- 2x USB 2.0 / 1.1 ports
- 1x 15 pin VGA
- 1x 19v DC Power Jack input
AC/DC Adapter


Input 100~240V AC Universal
Output 19V~21V DC out
Dimensions & Weight


5.82"(W) x 10.0"(D) x 2.79"(H) (14.8 x 25.4 x 7.1 cm)
2.5KG (Fully equipped)
Storage Devices


Support all standard slim CD-ROM / DVD-ROM / CD-RW / DVD-RW Combo
Support all 2.5" 9mm hard drive, ATA-133/100/66/33
Support all 3.5" standard IDE hard drive, ATA-133/100/66/33
