| Specifications |
| Processor |
INTEL Atom Dual-Core D525 CPU (45nm,FSB 667MHz, 1.8GHz, 1024MB L2 Cache) |
| Chipset |
Inte ICH8M @ 2.4W |
| System Memory |
2 x DDR2 667/800 DIMM Slot (up to 4GB) |
| Audio |
Realtek ALC662 6 Channel HD Audio |
| Storage |
Support 1 x 2.5" SATA Hard disk, CF Disk or SSD drive |
| LAN |
Realtek RTL8111DL PCI-E Gigabit Ethernet
Optional 2nd Gigabit LAN (Realtek 8110SC)
Optional 3 Extra Gigabit LAN (Realtek 8110SC)
Support PXE Boot
Support Wake on LAN
|
| Graphics |
Intel GMA3150 Integrated Graphics |
| Back I/O |
1 x 12V DC Jack
1 x PS2 Mouse/Keyboard port(Jumper switch)
1 x Serial
1 x VGA
1 x eSATA
5 x USB 2.0
1 x RJ45 LAN (10/100/1000)
1 x Line Out
1 x Line In
1 x Mic in
|
| Onboard I/O |
1 x PCI Slot(not applicable)
1 x 44-pin IDE Connector
1 x mini PCI Express x1 Slot
1 x Serial header (RS232/RS422/RS485)
2 x SATA2 3Gb/s Connectors
2 x USB Pin Headers for up to 4 USB 2.0 ports
(Two are used for front USB ports)
1 x Parallel header
1 x 18-bit Dual Channel LVDS header/inverter
1 x 9-pin Audio header
1 x 2-pin SPDIF out header
1 x 4-pin CD audio-in header
1 x GPIO header
1 x LPC header
1 x Front Panel header
3 x Fan headers
1 x 4-pin Power Connector
1 x Daughter board Connector |
| Optional Features |
Optional 2nd COM
Optional 3 Extra COM(4 in total)
Optional 4 Extra COM(5 in total)
RS485 Port Adjustable via COM 1
Optional DVI-D port (Coexist with VGA)
Optional Mini PCI Express TV tuner
Optional CF slot
Optional PCMCIA slot
Optional Wifi
Optional Bluetooth
|
| Mounting |
Optional Wall Mount Bracket |
| Dimension & Weight |

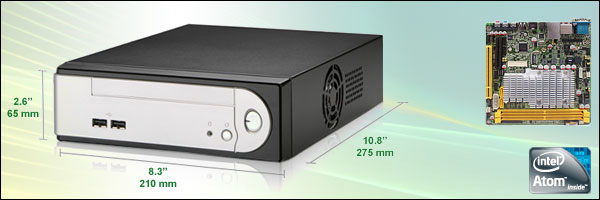

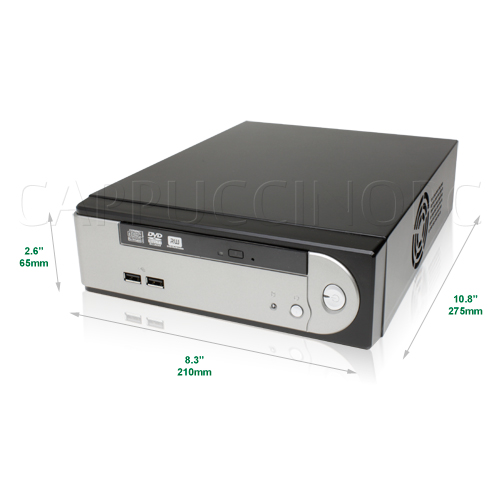

8.3"W x 10.8"D x 2.6"H
5.2 lb. Fully Loaded
|
| Power Management |
Watch Dog Timer Available |
| Operating & Storage Temperature |
Operating Temperature: 0 to 50°C
Storage Temperature: -20 to 85°C
|
| Power Supply |
External 110~240V AC-DC Adapter 2-pin 12V DC@5A 60W
Power Loss Resume feature available
|
| Mounting |
-Optional Dual VESA mounting bracket |
| OS Support |
Windows 8 (x86, x64)
Windows XP
Windows 2003 Server (32-Bit)*
Windows 2008 Server (32-Bit)*
Windows Vista
Windows 7
Ubuntu Linux
Fedora Linux
*Server OS is not recommended to work with Mobile chipset |
| Certificate |
CE, FCC, RoHS |
| Resolution |
Support 16:9 resolution, but not HDTV 1080p
Maximum Resolution 2048 x 1536 32-bit 60Hz |
