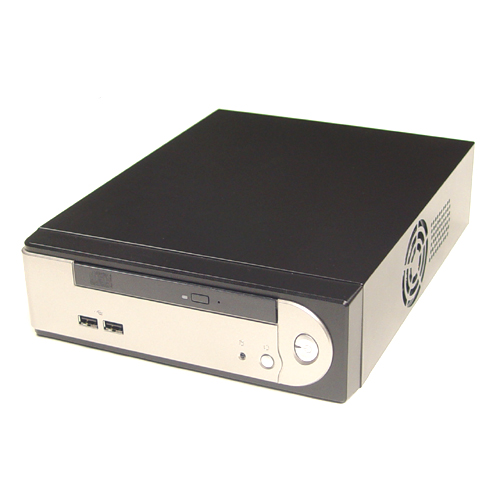

Chassis Specifications |
Color |
Black / Silver |
Dimensions |

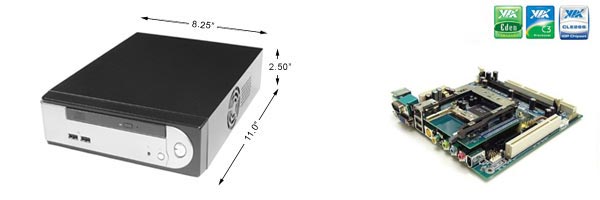

11.0" x 8.25" x 2.50" |
Main board size |
VIA Mini-ITX form factor (17cm x 17cm) |
HDD Bay |
1 x Slim Type (2.5") |
CD-ROM Bay |
1 x Slim Type |
USB (Front) |
2 x USB port in front |
System Fan |
1 x 6cm (Sleeve Type) Fan |
DC-DC Power Converter |
Dimension |
6.3" x 1.8" |
Input Voltage Required(V) |
11.4 ~ 12.60 voltage |
Input |
DC 12V in (From External AC Adapter |
Maximum Output (W) |
Output Voltage (V) |
Output Current (A) |
Power Output (W) |
Ripple & Noise |
5VSB |
1.50 |
7.50 |
50mV |
+3.3V |
5.00 |
16.50 |
50mV |
+5V |
5.00 |
25.00 |
50mV |
+12V |
2.50 |
30.00 |
120mV |
-12V |
0.10 |
1.20 |
120mV |
|
Total |
80.20W |
External Power Supply (60W AC Adapter) |
Input |
AC 100 ~ 240V |
Output |
DC12V, 5.00A |
Motherboard Specifications |
Processor |
VIA C3T/ VIA EdenT EBGA processor |
Chipset |
VIA CLE266 North Bridge
VIA VT8235 South Bridge |
System Memory |
1 DDR 266 DIMM Socket
Up to 1GB Memory Size |
VGA |
Integrated VIA UniChrome AGP Graphics with MPEG-2 Accelerator |
Expansion Slots |
1 x PCI Slot |
Onboard Card Bus |
CardBus Type I & Type II |
Onboard CF |
Ricoh R5C476 II / R5C485 CardBus Controller |
Onboard IDE |
2 x UltraXMA 133/100/66 Connectors |
Onboard Floppy |
1 x FDD Connector |
Onboard LAN |
VIA VT6103 10/100 Base-T Ethernet PHY |
Onboard Audio |
VIA VT1616 6 channel AC'97 Codec |
Onboard IEEE 1394 |
VIA VT6307S IEEE 1394 (Optional) |
Onboard TV-Out |
VIA VT1622A TV Out |
Back Panel I/O |
1 x CardBus Type I and Type II slot
1 x Compact Flash slot
1 x RJ45 LAN port
1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x Serial port
2 x USB 2.0 ports
1 x VGA port
1 x RCA port (SPDIF or TV-Out)
1 x S-Video port
1 x 1394 port
3 x Audio jacks: line-out, line-in and mic-in (Smart 5.1 support) |
Onboard I/O |
1 x USB connector for 2 additional USB 2.0 ports
1 x Front panel audio connectors (mic-in and line-out)
1 x CD Audio in connector
1 x Buzzer
1 x FIR connector
1 x CIR connector (Switchable for KB/MS)
1 x Wake-on-LAN
1 x LPT port header
1 x Connector for LVDS module
3 x Serial port connector for 3 additional com port; 3/4 com port with power jumper selection (Default power setting is 5V)
1 x ATX power connector
1 x CPU/Sys FAN / Fan 3
1 x Connector for LVDS module (optional)
1 x Serial port connector for second COM port
1 x ATX power connector |
BIOS |
Award BIOS
2/4 Mbit flash memory |
System Monitoring |
CPU voltage monitoring
Wake-on-LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery |
Operating Temperature |
0 ~ 50°C |
Operating Humidity |
0% ~ 93% (relative humidity; non-condensing) |
Form Factor |
Mini-ITX (6 layer)
17cm x 17cm |
