EZ3 Mini PC
Fully-featured Mini PC that is small, lightweight and compact

Features | Specifications | Picture Gallery | Discontinued



The Cappuccino EZ3 PC is the world's smallest PC to date that performs more than an ordinary PC can do. Small form factor, medium cost and large opportunity lies ahead on its future. This is the leading product which other innovators/manufacturers are opt to follow.

Cappuccino EZ3 PC was engineered to keep all the interfaces of 1394, USB, RS232, parallel, IrDA, AV/S video and internal modem, LAN, hard drive, speaker and DVD-ROM drive intact with an 8 layered motherboard. The challenging heatsink is one astonishing key to boost CPU performance. We tactically apply the F-1 racing car concept into our compact machine weighing less than 3 cokes in can. Small form factor in an unbelievable size same as CD-ROM player.



Features

  • Socket 370 Intel Celeron or Pentium III Processors
  • 10/100 LAN / 2 USB / 2 FireWire
  • TV-Out / 56K FaxModem / Infrared
  • Optional 802.11b WiFi / Bluetooth

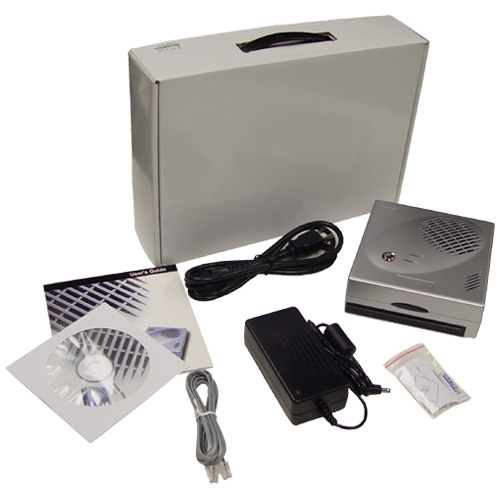

Pictures Gallery

Specifications
Processor

Intel Pentium III Socket 370 Processor
Intel Celeron Processor

Chipset Intel 810
System Memory 1 x 144-pin SO-DIMM Memory Slot up to 256MB
VGA Built-in Full-motion video accelerator
Hardware motion compensation for Software MPEG-2 (DVD Playback)
Supports up to 1280 by 1024 pixel resolution at 24-bit color
15-pin mini D-Sub VGA connector for external monitor
S-Video Port
AV Video Port
Audio System Built-in 16-bit stereo Sound Blaster compatible, full duplex 3D Stereo sound
Built-in speaker
1 x 3.5mm microphone input jack
1 x 3.5mm Line-out jack for external speaker
Storage Built-in high-capacity 2.5" (9.5mm and 12.5mm high) Hard Disk Drive
Support Ultra-DMA 33/66
Built-in CD-ROM or DVD-ROM or CD-RW or Combo Drive
USB port External Floppy Disk Drive
I/O Ports 2 x 1394 FireWire ports
2 x USB ports
1 x 9-pin serial (RS-232) port
1 x 25-pin Parallel port (EPP/ECP)
1 x 6-pin PS/2 mouse port
1 x 6-pin PS/2 keyboard port
Front / Top 1 x Power button
1 x Speaker
1 x Ventilation
1 x Built-in CD-ROM / DVD-ROM
1 x IrDA
Left Side 1 x LAN port
1 x Mic-in jack
1 x Line-out jack
1 x DC-in jack
2 x IEEE 1394 port
Right Side 1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x S-Video out port
1 x AV video out port
Rear Side 1 x VGA port
1 x Serial port
1 x Parallel port
1 x Modem port
2 x USB port
Environmental Requirements Operation Temperature: 10C to +35C (50F to 95F)
Storage Temperature: -10C to +55C (14F to 131F)
Relative Humidity 5% to 95% non-condensing
Altitude: 0 to 10,000 feet
Weight and Size System approximately 950g

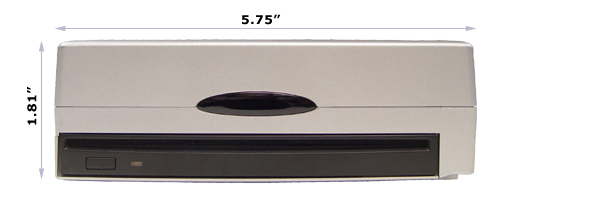

System Dimensions: 157x146x46 mm
Operating System Windows 98 SE
Windows 2000
Windows NT
Windows ME
Windows XP
Linux
