Cappuccino TX1 Product Specifications
The
Cappuccino TX1 PC is a full-featured Mini-Book PC that is
small, lightweight and compact. This PC runs on a whole wide
range of general business and personal productivity applications,
making it ideal for use in the office, or at home.
Intel® Corp.
Ultra Low Voltage Intel® Celeron® Processors
at 650 MHz and 400 MHz,
Competitive
Performance Evaluation versus VIA Technologies Mini-ITX EPIA
M10000 and EPIA ME6000 CPUs
Processor
|
Intel
Pentium III / Celeron / Tualatin Processor up to 1.2GHz
Cyrix VIA C3 up to 900MHz
|
Memory
|
One
144 pin DIMM slot for PC100/PC133 SDRAM
Upgradable to 256MB |
Video
|
Intel
82810E, 4MB integrated.
Dynamically allocate video memory up to 32 MB with the
PV 6.x graphics drivers.
Supports up to 1280 by 1024-pixel.
Dynamic
Video Memory Technology |
Speakers
& Audio |
Built-in
16-bit stereo (sound blaster / Adlib compatible)
Built-in Speaker |
Communications |
Built-in
10/100base-T Ethernet (RJ45)
Option Internal 56K V.90
modem (RJ11) |
Peripheral
Connection |
Two
USB ports (12 Mbps)
One 25 pin Parallel port (EPP / ECP)
One 9 pin serial port (RS-232)
VGA port
RJ45
RJ11
IrDA
One 3.5mm line out port (using Active Speaker)
One 3.5mm Micro-phone in port
One S video port
One AV video port
One 6 pin PS/2 mouse port
One 6 pin PS/2 keyboard port |
Storage
|
One
2.5 inch Hard Disk and 9.5mm high (Support Ultra DMA
33/66)
One ATAPI interface high speed CD-ROM or DVD-ROM/CD-RW
Option External Parallel Port FDD |
Operation
System |
Windows
9x, ME, NT, 2000, XP |
Weight
& Size |
System
approximately 980g (1.8
Lbs)
System Dimensions: 157mm x 146mm x 46mm (6"x5.5"x1.75") |

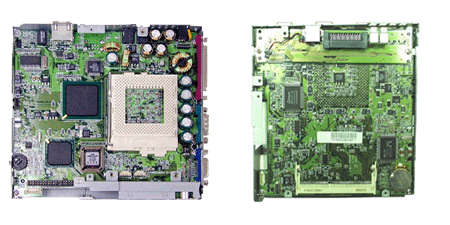

Cappuccino
TX1 Motherboard Specifications
Intel®
810E |
Processor |
Socket
370 for Intel® Pentium® !!! / Celeron®
Processor in FCPGA package.
VIA C3
Supports 66/100/133 MHz FSB (Front Side Bus) |
Chipset |
North
Bridge: Intel 810E(GMCH 82810E)
South Bridge: ICH 82801AA |
Memory |
One
144 pin DIMM slot for PC100/PC133 SDRAM
Upgradable 128/256MB |
Video |
Intel
810 built-in full motion video accelerator
H/W motion video compensation for S/W MPEG2 at 30fps
Video Memory (shared memory)
Supports up to 1280 by 1024 pixel resolution at 24bits
per mixel(M color) |
Speakers
and Audio |
Built-in
16bit stereo (sound blaster / Adlib compatible)
Full duplex 3D stereo sound |
HDD
Connecting Board |
1x3.5"
IDE Hard Disk Drive |
Form
Factor |
6
layer PCB (157mm x 146mm) |
I/O |
2x
USB ports (12Mbps)
1x 25pin Parallel port (EPP / ECP)
1x 9pin serial port (RS-232)
1x VGA port
1x RJ45 Ethernet port
1x RJ11 Modem port
1x IrDA
1x 3.5mm line out port (using Active Speaker)
1x 3.5mm Micro-phone in port
1x S-Video Out
1x AV Video Out
1x 6pin PS/2 Mouse Port
1x 6pin PS/2 Keyboard Port |
Power |
AC/DC
Adapter
Line voltage: 110Vac (100 to 130Vac) or 230Vac (180
to 260Vac)
Frequency: 47 to 63 Hz (singe phase)
Power in: DC 18V/54A
Max. Power Consumption: 45W
AC Recovery On/Off Control |
BIOS |
4M
bit Flash ROM
AMI BIOS with Enhanced ACPI Feature for Windows 9x/ME/2000/XP
compliance, Green, PnP, DMI, INT13(>8.4GB)
IDE#1-#4, SCSI, LS120, ZIP&CD-ROM Bootable |
CPU
Fan Connector |
3pin,
+5V, 90mA(0.45W) |
|
