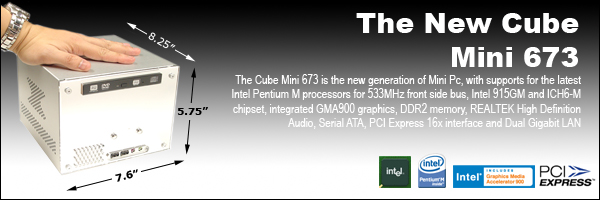

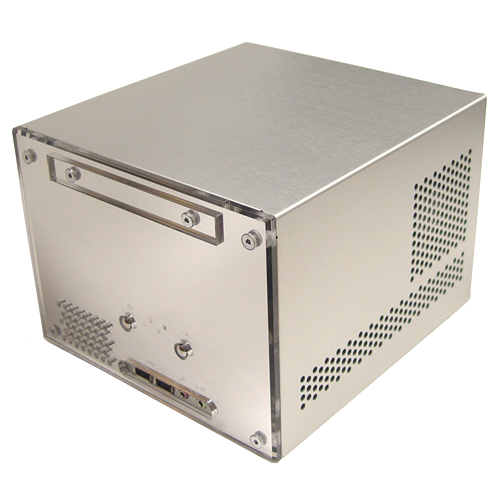

| Mainboard Specifications |
| Processor |
Intel Pentium M / Celeron M Processors
Package type: FC-PGA478
L2 Cache: 512KB / 1MB / 2MB
Front side bus: 400/533MHz
|
| Memory |
2 x 240-pin DDR2 400/533MHz SDRAM up to 2GB
Up to 8GB/s of bandwidth with dual-channel interleaved mode
Dual-Channel technology supported
Unbufferred, none-ECC memory supported only
|
| Chipset |
Intel 915GM (Northbridge) and ICH6-M (Southbridge) |
| BIOS |
Phoenix-Award v6.00PG 4MB PnP flash BIOS |
| Green Function |
Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
|
| Watchdog Timer |
System reset programmable watchdog timer with 1 ~ 255 sec./min. of timeout value |
| Real Time Clock |
Intel ICH6-M built-in RTC with lithium battery |
| Enhanced IDE |
UltraDMA33 IDE interface supports up to 2 ATAPI devices
One 44-pin IDE port onboard
One CompactFlash Type I socket on solder side
|
| Serial ATA |
Intel ICH6-M integrates 2 Serial ATA interfaces
Up to 150MBs of transfer rate |
| Multi-I/O Ports |
| Chipset |
Intel ICH6-M with Winbond W83627THF controller |
| Serial Port |
Two external and two internal RS-232 serial ports |
| USB Port |
Six Hi-Speed USB 2.0 ports with 480Mbps of transfer rate |
| Parallel |
None |
| Floppy Port |
One slim type floppy port |
| IrDA Port |
One IrDA compliant infrared interface supports SIR |
| K/B & Mouse |
External PS/2 keyboard and mouse ports on rear I/O panel |
| GPIO |
One 12-pin Digital I/O connector with 8-bit programmable I/O interface |
| Smart Fan |
One CPU fan connectors for fan speed controllable |
| VGA Display Interface |
| Chipset |
Intel 915GM GMCH (Graphic Memory Controller Hub) |
| Frame Buffer |
Up to 128MB shared with system memory |
| Display Type |
CRT, LCD monitor with analog display
Onboard 18-bit dual channel LVDS interface
Onboard HDTV interface |
| Connector |
External DB15 female connector on rear I/O panel
Onboard 40-pin LVDS connector
Onboard 8-pin TV-out connector |
| Ethernet Interface |
| Controller |
Marvell E8053 PCI Express Gigabit Ethernet controller |
| Type |
Triple speed 10/100/1000Base-T
Auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant |
| Connector |
Dual External RJ45 connectors with LED on rear I/O panel |
| Audio Interface |
| Chipset |
Intel ICH6M with Realtek ALC880 codec
Intel High Definition Audio compliance |
| Interface |
7.1 channels sound output |
| Connector |
External Audio phone jack for Line-out, Line-in, MIC-in, Surround, Center and Back Surround
Onboard audio connector with pin header (built-in amplifier for speaker out)
Onboard CD-IN connector |
| Expansion Interface |
| PCI-Express |
One 16x PCI-Express slot (compatible with 1x slot)
Up to 8GB/s of transfer bandwidth
Power supply: +3.3V, +12V |
| PCI |
One Mini-PCI socket for TYPE III (32-bit, 33MHz)
Power supply: +3.3V, +5V |
| PCMCIA |
One PCMCIA Type II slot on solder side with RICOH R5C475II controller |
| Power and Environment |
| Power Requirement |
DC 12V input with external DC mini DIN or onboard 4-pin connector |
| Input Range |
10.5V ~ 13V |
| Dimension |
170(L) x 170(H) |
| Temperature |
Operating within 0 ~ 60C (32 ~ 140F)
Storage within -20 ~ 85C (-4 ~ 185F) |
