It further omits the weighty battery so that the MiniPC is lighter than even the lightest notebook PCs available on the market. Despite its light weight, the computer’s functions are not compromised at all. Such brand new “portable desktop PC” concept more conforms to consumers’ needs.
Features

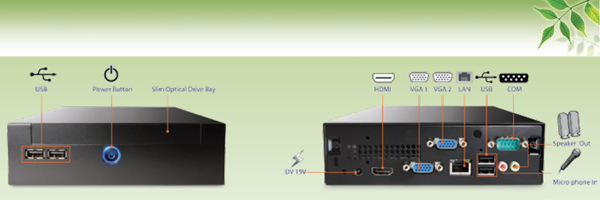

- Dual VGA Onboard
- HDMI Port
- One COM Port Onboard
The DE965HG is equipped with the Intel 965GM chipset, delivering high quality integrated graphics. It has DVI and YPbPr output, GigaBit LAN, front/rear USB 2.0 access, with an optional TV-Tuner add on. The DE965HG supports the latest Intel Core 2 Duo processors and Microsoft Vista Ready making this system perfect for digital signage, mobile computing, and mobile media center.
| Power Consumption in Watts |
|
|
 |
 |
Powered by Intel® Core 2 Duo Technology
The Intel® Core™2 Duo desktop processor delivers revolutionary dual-core performance and breakthrough processor energy efficiency.
|
Genuine Windows Vista™
Microsoft Windows Vista™ offer a whole new way to manage your precious memories, your music and your life, all with an enhanced sense of security. |
 |
| Special Options and Upgrades |
|
 |
 |
 |
 |
 |
Mini PCI Express
WiFi 802.11G |
Mini PCI Express
TV Tuner |
Built-in Bluetooth |
U Shape Wall/Desk Mounting Kit |
Dual Vesa
Mounting Kit |
|
|
|
|
| Specifications |

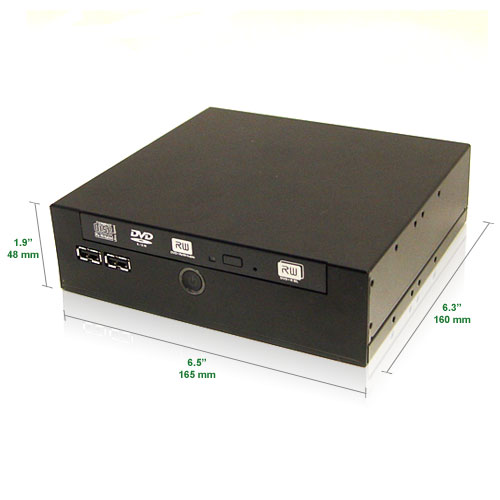

| Dimension |
WxHxD (mm) |
166 x 48 x 157 |
| WxHxD (inch) |
6.54 x 1.89 x 6.18 |
| Weight (Kg/Pound) |
1.23 kg / 2.72 pound (N.W.) |
| CPU |
Socket |
Socket P |
| Type |
Support Intel Core 2 Duo, Celeron CPU
(Santa Rosa & Santa Rosa Refresh) |
| FSB |
533/800 MHz |
| Chipset |
NB |
Intel GM965 Chipset |
| SB |
ICH8M |
| Memory |
Dual Channel |
Dual Channel |
| Type |
DDRII SO-DIMM x 2 |
| DDR |
533 / 667 |
| Max Memory |
4G (1) |
| Graphics |
Chip |
Intel GM965 onDIE |
| DVI Port |
x 1 |
| VGA Port |
x 2 (via Y Cable) |
| HDMI Port |
x 1 |
| Expansion Slot |
Internal PCI Express Mini Card x 1 |
| Audio |
Type |
Realtek HD Audio Codec ALC662 |
| Channel |
5.1 CH |
| Line-In |
x 1 (Surround-Out L/R) (2) |
| Line-Out |
x 1 (Front-Out L/R) (2) |
| Mic-In |
x 1 (Center/Subwoofer out) (2) |
| S/PDIF_Out |
x 1 (via Adapter), Adapter Optional |
| LAN |
Intel 82567LF Gigabit LAN |
| USB 2.0 |
x 4 (2 Rear, 2 Front) |
| Storage |
ATA Connector |
x 1 (for Slim Optical) |
| S-ATA Connector |
x 1 (for 2.5" HDD) |
| Security |
Kingstone Lock Hole |
x 1 (Rear) |
| Storage Bay |
Slot-in Slim ODD Bay |
x 1 |
| 2.5" SATA II HDD Bay |
x 1 |
| CPU Thermal |
Module |
AOpen Thermal Module |
| Noise |
27dB |
| WatchDog Timer |
1 ~ 255 Sec. |
| Adapter |
90W (19V, 4.74A) AC Adapter |
| Power Management |
Power Loss Resume Feature |
| Input Voltage |
AC 100 ~ 240V |
| OS Support |
Windows XP
Windows Vista
Windows 7
Windows 2003 Server (32-Bit)*
Ubuntu Linux
Fedora Linux
Debian Linux
RedHat Linux
Centos Linux
|
| Max support resolution |
2048 x 1536 32-bit 75 Hz
|
| Environment |
| MTBF |
40,000 Hours |
| Operating Temperature |
0~50°C (32~122°F) |
| Storage Temperature |
-30~65°C (-22~149°F) |
| Relative Humidity |
95% RH (50°C non-Condensing) |
| Operating Vibration |
0.5Grms, Random, 10~500Hz, X,Y,Z 3Axes, 0.5hr/Axis |
| Non-Operating Vibration |
2Grms, Random, 10~30Hz, X,Y,Z 3Axes, 1hr/Axis |
| Operating Shock |
8G, Half sine, 11ms duration, X,Y,Z 3Axes, 6 direction, 3 shocks/direction |
| Non-Operating Shock |
50G, Half sine, 11ms duration, X,Y,Z 3 Axes, 6 direction, 3 shock/direction |
| Supported Resolutions |
800 x 600
1024 x 768
1152 x 864
1152 x 921
1280 x 600
1280 x 720
1280 x 768
1280 x 800
1280 x 960
1280 x 1024
1360 x 768
1400 x 1050
1440 x 900
1600 x 900
1600 x 1200
1680 x 1050
1792 x 1344
1856 x 1392
1920 x 1080
1920 x 1200
1920 x 1440
2048 x 1536 |
|
|
