rohs compliant Digital Engine DE6140 Digital Signage Mini PC With xHDMI
Think Big, go Thin

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



Digital Engine DE6140 mini pc (4 x Hdmi) is specially designed for Digital Signage customer. With its 4 x Hdmi Ports, project customer can display up to 4 independant monitors. Its rugged and compact design makes it very flexible for applying to different applications including digital signage, KIOSK, POS, and advertising display.


Quad Display Mini-PC


Digital Engine® DE6140 Mini-PC
High quality graphics through multiple displays for Signage applications. 4 x Hdmi Ports


  • Small form factor compact design
  • High performance for Ultra HD resolution (4k*) The max resolution of 2x2 (4 x Hdmi) video wall is 3840 x 2160
  • Full size Mini card slots for expansions
  • Support for both Spanning (stretched desktop),(Extended Desktop) on all connected screens for up to four independent (Full HD) displays for Digital-Signage.



Digital Engine® DE6140 Digital Siganage Mini-PC (4 x Hdmi) comes equipped with AMD's Embedded R-series APU Dual/Quad core TDP 35W CPUs to process high quality videos and images for digital signage applications. With the integrated 4 x HDMI ports, the DE6140 can be configured for up to four screens. Rounding out the I/O ports with USB 2.0 ports in the rear panel (and 2 USB 2.0 ports in front and back panels), dual WLAN antenna, Gigabit LAN, RS232 port and optional m-SATA for various expansion options.

With its rugged and compact design, Digital Engine® DE6140 Digital Signage Mini-PC (4 x Hdmi) is very flexible for applying to different applications including digital signage, KIOSK, POS, and advertising display.


Key Features

  • Digital Engine® DE6140 Digital Signage Mini-PC (4 x Hdmi) is special design for multiple screen application.
  • AMD embedded R-series Dual/Quad core APU with TDP 35W CPU with low power consumption.
  • Dual DDRIII SO-DIMM 1333/1600MHz memory up to 16GB
  • Realtek HD AUDIO ALC662 provides crystal clear audio output.
  • Integrated mini card slot supports various expansion options. (Not for mSATA)







COM port

Giga LAN x 1 Antenna Hole x 2



DC20V

HDMI x 4





USB 2.0
ESATA
x 2

USB 2.0
x 2

Speaker out
Mic-in



4U Rack for Six Digital Engines Digital Signage Whole in 1 Management System




spacer
Digital Engine DE6140
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





DE6140 Digital Signage Mini-PC with 4 x Hdmi Specification
Processor Socket FS1r2
AMD Embedded R-series APU Dual/Quad core mobile processor TDP<35W
Memory 2 x SODIMM DDR3 1066/1333/1600MHz
Maximum 16GB(Based on OS support)
Bios AMI BIOS
Chipset FCH: AMD A70M chipset

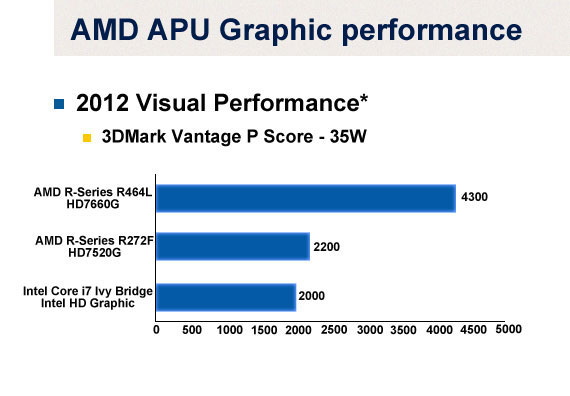

Video AMD Radeon HD 7660G(build in APU R-464L)
*Different APU build in different GPU
Audio Realtek ALC662 Software high definition audio CODEC
LAN

Realtek GbE LAN controller RTL8111E-VL (Gigabit LAN)
Support PXE Boot and WOL feature

USB 2.0/3.0 6 x USB 2.0
SATA SATA 6Gb/s and 3Gb/s specification
2.5" hard disk drive & optical disk drive
AHCI function
SATA SSD drive
Power Management ACPI 4.0a compliance and OS direct power management
Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse
Power Loss Resume feature
Watch Dog Timer not available
Switch and Jumper Front Panel:
2 x USB 2.0 ports
Power on/off button
Power and HDD LED

Back Panel:
1 x RS232 COM port
1 x RJ45 Gigabit fast Ethernet
1 x Line-out jack
1 x Mic jack
4 x USB 2.0 / 1.1 ports
(2 ports combine with eSATA)
2 x eSATA
4 x HDMI version 1.4a(Quad Display)
1 x Kensington Lock Hole
1 x 19V DC power jack
Expansion Slot Mini PCI Express slot (Full size x1)
(**Not for mSATA**)
Optional Features -Optional Wifi
-Optional Bluetooth
Mounting bracket L-Shape Mounting included

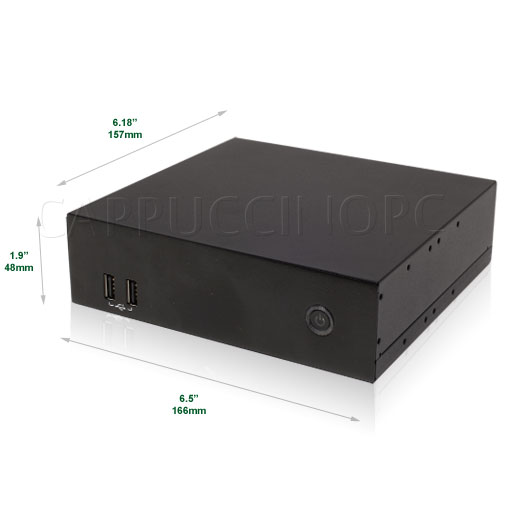

Dimension & Weight Metric : 166(W) x 48(H) x 157(D)mm
inch : 6.54(W) x 1.89(H) x 6.18(D)inch
N.W. : 1.12 kgs / 2.46 lbs
G.W. : 2.0 kgs / 4.4 lbs
Operating Temperature 0 to 40°C
AC/DC Adaptor External 110~240V AC-DC adapter 2-pin 19V DC @ 4.74A 90W
OS Support Windows XP
Windows Vista
Windows 7
Windows 8.1 (x86, x64)
Resolution HDTV 1080p
16:9 Resolution
Max Resolution for each HDMI is 1920x1080
Quad Display with 4 x HDMI for multiple screen application
(Digital Signage Project)
The max resolution for 2x2 video wall is 3840 x 2160
