rohs compliant Echo 77FW Mini PC
Think Big, go Thin

Features | Specifications | Picture Gallery | Power Consumption | Buy Now




Features

  • Intel QM77 platform, supports 3rd generation Intel Core i3/ i5/ i7 (IvyBridge)
  • 2 x Display Port
  • 1 X VGA
  • 1 x DVI-D(Digital Only)
  • Built-in 4 x COM Ports
  • Built-in 2 x Gigabit LAN
  • Built-in 4 x USB 3.0 Ports
  • Built-in 2 x USB 2.0 Ports
  • Built-in 1 x CFast Slot
  • Support Wide Voltage 6-36V
  • 16 GPIO (Internal)
  • Wide Temperature -25~70°C (with Special Memory and SSD)
  • Intel Firmwire Raid (Mirror)
  • EN50155 compliant

Upgrade Options:

  • 6 GbE LAN for Extend Internet Application,
  • Isolated 8 DI / 8 DO, GPIO 8 DI / 8 DO, Support SUMIT A, B,
  • 2 Front Panel Accessible, removable SATA III (6Gbps) 2.5” HDD / SSD tray
  • Wireless/ bluetooth options

Fanless Mini PC with 3G Sim Slot

vmware ready:

  • VMware vSphere® 5.5
  • View Connection Server 6.0.1 enterprises
Fanless Mini PC with 3G Sim Slot
SIM Socket for 3G Modem

Power Consumption in Watts
 13   16   24
idleIdle normalNormal fullPeak / Full

spacer
Echo 77FW
To Customize a Complete System.  Silver Gray
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





Echo 77FW i7 Fanless Mini PC with Wide Temperature Specifications
System
Processor Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME
Chipset Intel® QM77
BIOS AMI
SIO IT8783
Memory 2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB
I/O Interface
Serial
- 1 COM RS-232/ 422/ 485
- 3 COM RS-232
USB
- 4 USB 3.0 (External)
- 4 USB 2.0 (2 External, 2 Internal by JST Connector)
GPIO 16 GPIO (Internal)
LED Power, HDD
SIM Card 1 SIM Card Socket (Internal)
(Additional Mini PCIe Modem required)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA
- 1 Mini PCIe for PCIe/ USB/ Optional mSATA
Graphics
Chipset Intel® HD 4000
Display Memory Shared Memory, Up to 1.7GB
Interface
- VGA : DB-15, up to 1920 x 1200
- DVI-D : Up to 1920 x 1200
- DisplayPort 1 : Up to 2560 x 1600
- DisplayPort 2 : Up to 1920 x 1200
- LVDS : Dual channel 24-bit, up to 1920 x 1200
Note DisplayPort cannot convert to Hdmi though adapter
Storage
SATA
- 2 SATA III (6Gbps)
- 1 SATA II (3Gbps), supports horizontal type SATA DOM
mSATA 2 SATA II (Mini PCIe Type, 3Gbps) Shared with Mini PCIe device
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-in, 1 Line-out, 1 Mic-in
Ethernet
LAN 1 Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2 Intel® 82574L Gigabit LAN
Power
Power Input Wide Voltage 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM) Optional Infineon SLB9635 supports TPM 1.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

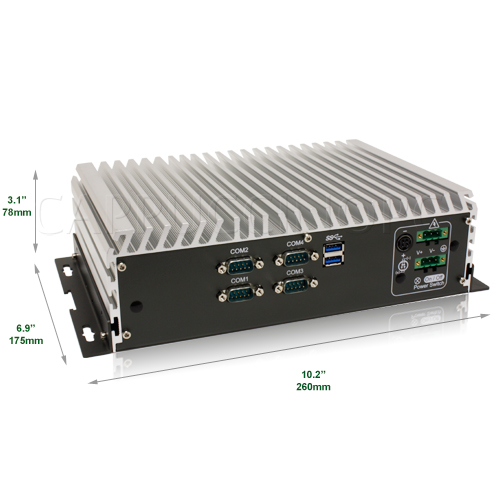

Dimensions (W x L x H) 260mm x 175mm x 79mm (10.2" x 6.9" x 3.1")
Weight 2.8 kg (6.2 lb)
Mounting
- L shape Mounting bracket (Included)
- VESA mounting (Optional)
- 2U Rackmount (Optional)
- DIN Rail Mount 35mm Wide (Optional)
Operating System
Windows 10 Supported
Windows 8 Windows 8.1 (x86, x64) Driver
Windows 7 Windows 7 (x86, x64) Driver
User Manual User Manual Download
VMware vSphere® 5.5 Supported
View Connection Server 6.0.1 enterprises Supported
Environment
Operating Temperature -25°C to 70°C  (-13°F to 158°F) With Special Wide Temperature memory and SSD


Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
EMC CE, FCC, EN 50155, EN 50121-3-2
