rohs compliant Echo 236F-QRX-PoE16 i7 Fanless Mini PC - Embedded Fanless with 16 x PoE (GigaBit LAN) Ports
Echo 236F-QRX-PoE16 i7 Fanless Mini PC - Embedded Fanless with 16 x PoE (GigaBit LAN) Ports

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



Echo PC SeriesFanless Mini PC Echo 236F-QRX-PoE16 i7 Fanless Mini PC - Embedded Fanless with 16 x PoE (GigaBit LAN) Ports

Echo 236F-QRX-PoE16 i7 Fanless Mini PC - Embedded Fanless with 16 x PoE (GigaBit LAN) Ports

Echo 236F-QRX-PoE16 i7 Fanless Mini PC - Embedded Fanless with 16 x PoE (GigaBit LAN) Ports is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 6th generation Intel® Core™ i7 (Skylake-S) engine running with 15% enhanced productivity than former generation, Intel® C236 chipset, dual channel DDR4 memory at 2133MHz, up to 32GB. Advanced Intel® Graphics 530 supports DVI-I, DVI-D, and DisplayPort interfaces, up to 3 independent displays(DisplayPort itself support 4K) It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Echo 236F-QRX-PoE16 i7 Fanless Mini PC - Embedded Fanless with 16 x PoE (GigaBit LAN) Ports is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

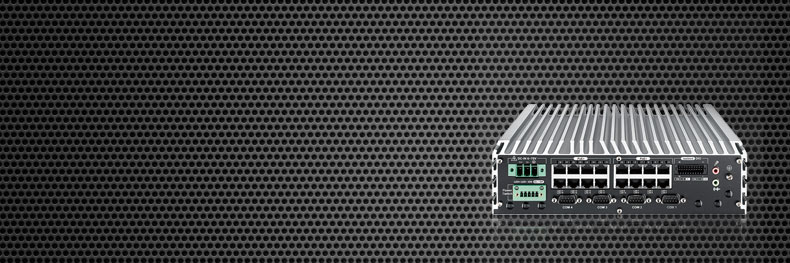

Echo 236F-QRX-PoE16 i7 Fanless Mini PC - Embedded Fanless with 16 x PoE (GigaBit LAN) Ports
  Echo 236F-QRX-PoE16 Fanless PC
6th Generation Intel® (SkyLake-S)

16 x PoE Ports
DVI-I, DVI-D, and Display Ports

Small Form Factor Fanless Industrial
Low Power Consumption Fanless Industrial PC
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC


Features List

  • 6th Generation Intel® Core™ i7 Mobile Processor (SkyLake-S)
  • Fanless Mini PC Industrial Design
  • 1 Front-access CFast Socket
  • 3 Front-access SIM Card sockets (Required Separate Mini PCIe Modem)
  • 4 Front-access 2.5" SSD Tray, 5 USB
  • 16 x PoE Gigabit LAN Ports
  • DVI-D/ DisplayPort Interface, up to 3 independent 4K displays(DisplayPort only)
  • 6 x USB 3.0
  • 4 x COM Ports
  • 16 GPIO
  • Configurable Ignition Power Control for In-Vehicle user
    Power off delay up to 24 hours
  • 6V to 78V DC-in, 200V Surge Protection
  • Fanless, -40°C to 70°C Operating Temperature when pair with special Memory and SSD
  • Intel® Firmware Raid
  • EN50155 compliant
Echo 236F-QRX-PoE16 i7 Fanless Mini PC - Embedded Fanless with 16 x PoE (GigaBit LAN) Ports Echo 236F-QRX-PoE16 i7 Fanless Mini PC - Embedded Fanless with 16 x PoE (GigaBit LAN) Ports Echo 236F-QRX-PoE16 i7 Fanless Mini PC - Embedded Fanless with 16 x PoE (GigaBit LAN) Ports Echo 236F-QRX-PoE16 i7 Fanless Mini PC - Embedded Fanless with 16 x PoE (GigaBit LAN) Ports
