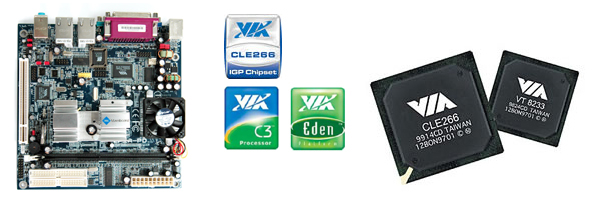

Mini-ITX Mainboard: VIA EPIA-PD Series
The ultimate low profile, low power and small form factor platform featuring dual LAN and four COM ports for always-on Point Of Sales (POS) applications
Features | Specifications | Picture Gallery | Compatible Chassis | Model Comparison (xls) | Discontinued



Introducing the new VIA EPIA PD-Series Mini-ITX mainboard. Based on the VIA EPIA CL-Series of Mini-ITX mainboards, the VIA EPIA PD adds more functionality with the onboard digital I/O and SMBus. It features four COM Ports and digital I/O support that is designed for use in POS systems. Its VT6105 and VT6103 Ethernet controllers make it a perfect fit for use as a hardware firewall system.

The mainboard is based on the VIA CLE266 chipset that features an embedded hardware MPEG-2 accelerator and an integrated S3 Graphics UniChromeT 2D/3D graphics controller. Its connectivity options include support for up to six USB 2.0 connections, four COM ports and two 10/100 Fast Ethernet ports. The VIA EPIA PD also offers support for a range of embedded LCD panels. Its additional expansion capabilities include one PCI slot. With the sizable memory bandwidth of DDR266 SDRAM and the high data transfer speeds of ATA-133, the VIA EPIA PD delivers the performance to run commercial digital video and audio applications.



The VIA EPIA PD conforms to the Mini-ITX form-factor measuring a mere 17 cm x 17 cm. Its low profile makes it even more space saving. The VIA EPIA PD is available with either the highly efficient VIA C3 or fanless VIA Eden ESP processor. Its x86-based platform makes it compatible with a wide range of software including Microsoft® Windows® and Linux operating systems.



Features

  • VIA C3T/ VIA EdenT EBGA Processor
  • Fanless Version Available
  • 1 DDR266 DIMM (1GB Max)
  • Integrated VIA UniChrome AGP Graphics
Compatible Chassis
SlimPRO C150 Expando C137 Expando C138 Expando 2699

Unicomp 3677 Unicomp 3688

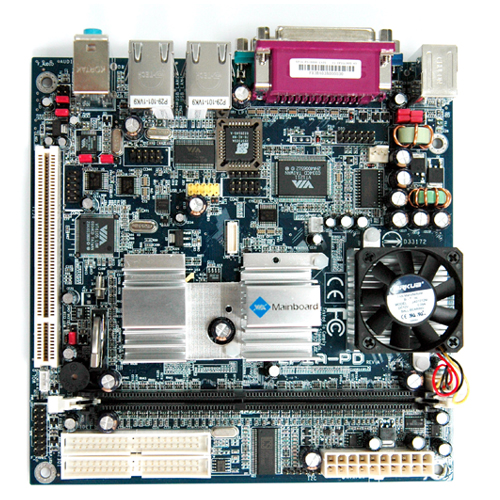

Pictures Gallery

Specifications
Processor

VIA C3T/ VIA EdenT EBGA processor

Chipset VIA CLE266 North Bridge
VIA VT8235 South Bridge
System Memory 1 DDR 266 DIMM Socket
Up to 1GB Memory Size
VGA Integrated VIA UniChrome AGP Graphics with MPEG-2 Accelerator
Expansion Slots 1 x PCI Slot
Onboard IDE 2 x UltraXMA 133/100/66 Connectors
Onboard LAN VIA VT6105 LOM+VT6103 10/100 Base-T Ethernet PHY
Onboard Audio VIA VT1612A 2 channel AC'97 codec
Digital I/O 1 x Digital I/O connector (4pin GPI + 4pin GPO with 5V/12V support)
Back Panel I/O

2 x RJ-45 LAN ports
1 x PS2 mouse port
1 x PS2 keyboard port
1 x Serial port
1 x Parallel port
4 x USB 2.0 ports
1 x VGA port
3 x Audio jacks: line-out, line-in, and mic-in

Onboard I/O 1 x USB connector for 2 additional USB 2.0 ports
1 x Front panel audio connectors (mic-in and line-out)
1 x Buzzer
1 x SIR connector
1 x CIR connector (Switchable for KB/MS)
1 x Wake-on-LAN
1 x Connector for LVDS module
3 x Serial port connector for 3 additional com port; 3/4 com port with power jumper selection (Default power setting is 5V)
1 x ATX power connector
BIOS Award BIOS
2/4 Mbit flash memory
System Monitoring CPU voltage monitoring
Wake-on-LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery
Operating Temperature 0 ~ 50°C
Operating Humidity 0% ~ 93% (relative humidity; non-condensing)
Form Factor Mini-ITX (6 layer)
17cm x 17cm



Drivers for VIA EPIA-PD Mainboard
Category Description Size FTP
Flash Utility Award BIOS Flash Utility v8.23b 39 KB
BIOS EPIA PD BIOS v1.03 (04/08/2004) 257 KB
4-IN-1 VIA 4-IN-1 Driver v4.48 1.29 MB
Audio VIA Audio Driver v4.50b 4.32 MB
LAN VIA LAN Driver v3.4 3.59 MB
Integrated VGA VIA Integrated VGA Driver 68.72 MB
USB 2.0 VIA USB 2.0 Driver v2.56 15.34 MB
Manual VIA EPIA-PD Mainboard Manual v1.20 1.72 MB
Manual VIA EPIA-PD Mainboard Manual v1.10 1.55 MB
