Specifications |
Processor |
On-board VIA Eden 376 PIN EBGA Package
Front side bus 100/133 MHz
VIA C3 Processor 1GHz
Integrated full-speed 192KB L1/L2 cache, FSB 133MHx
Advanced multimedia instruction set for MMX, 3DNow
|
Chipset |
MB: VIA CLE266 with VT8623A and TV8235
VGA: Integrated VT8623
Sound: VIA VT1612 AC97 2.2 sound
LAN: 4 Realtek 10/100Mbps 8100B |
System Memory |
PC 1600/2100 DDR 266
Single socket up to 512MB
|
VGA |
Optimize shared memory architecture and maximum share 64MB
Integrated 4x AGP, 128bit, 3D graphics engine
MPEG 2/1 video decoder, high quality DVD video playback
Microsoft DirectX 7.0 and 8.0 compatible
Resolution up to 1920 x 1440 x 16 bit
VGA resolution supports 16:9 mode
|
Sound |
AC97 2.2 compliant
Supports 2 channel audio
|
I/O |
1 x 16C550 UARTs RS232 port support
Support Infrared SIR and FIR |
Power |
Built-in 12V DC-IN |
PCMCIA |
Ricoh R5C486 PCMCIA chipset compliant PCI with specification version 2.2
Support 2 PCMCIA sockets
CardBus (Card-32) card and 16-bit (PCMCIA 2.1/EIDA 4.2) card work at the same time
Compliant with PC card standard release 8.0 specification
Compliant with i82365SL compatible register set / ExCA
Supports INTA# and INTB# for PC system interrupt
Supports serialize IRQ |
Front Panel Ports |
Power Switch |
Rear Panel Ports |
1 x 12V DC-in Power Jack
1 x VGA connector
1 x COM port
4 x USB 2.0 ports
2 x PCMCIA slots
3 x LAN ports |
Storage |
1 x 40pin IDE for DOM
1 x 44pin IDE for DOM or 2.5" Slim HDD
1 x 50pin compact flash disk socket |
BIOS |
Award BIOS
CF card boot support |
OS Support |
Linux
Windows 9x / 2K / XP /CE |
Power Consumption |
12V / 2.5A |
Dimensions |
Motherboard: 7.8" x 5.9" (200 x 150 mm)

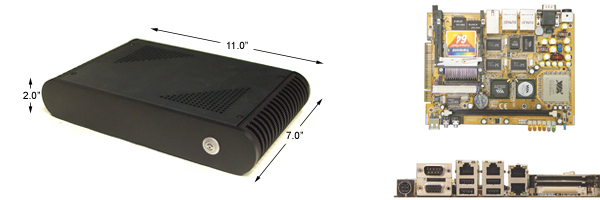

Case: 7.0"(L) x 11.0"(W) x 2.0"(H) |
