SlimAGE 15.1" Active Matrix TFT LCD
Features
- 15.1" Active Matrix TFT LCD
- 1024 x 768 Resolution

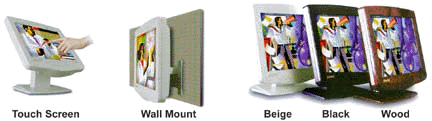

- Plug & Play
- Weights 13 lbs
- Wallmount Available
- Touchscreen Available
 |
|
|
15" Slimage 710A LCD with ELO Accutouch (Black)
|
Please Call
for Price |
|
|
|
|
15" Slimage 710A LCD with ELO Accutouch (Beige)
|
Please Call
for Price |
|
|
|
One of the biggest advantage of LCD monitors is that they are compact and lightweight. Thanks to advances in LCD technology, LCD monitors are now available that are comparable in screen size to traditional CRT monitors.
The SlimAge LCD monitors are available in both digital and analog versions. They outperforms those traditional CRT monitors in terms of viewability radiation-free, compactness and space-saving.
OPTIONS FOR SLIMAGE LCD MONITORS
We offer the latest LCD technology combined with the most widely used touchscreen technologies. This compact display is suited for use in a wide variety of applications
|
| Specifications |
| Color |
Beige or Black |
| LCD Panel |
15" Active Matrix TFT LCD |
| Display Mode |
VGA 640 x 350 @ 70Hz
VGA 720 x 400 @ 70Hz
VGA 640 x 480 @ 60/72/75 Hz
SVGA 800 x 600 @ 60/72/75 Hz
XGA 1024 x 768 @ 60/72/75 Hz
Mac 832 x 624 @ 75 Hz
|
| Max Resolution |
1024 x 768 |
| Contrast Ratio |
300 |
| Brightness |
230 cd/m2 |
| Response Time |
11ms (Rising)
24ms (Falling)
|
| Display Colors |
16M (dithering) |
| Viewing Angle |
+60° ~ -60° (Left / Right)
+40° ~ -60° (Up / Down) |
| Input Single Video |
RGB Analog 0.7V Peak-topeak |
| Sync |
TTL Positive or Negative |
| Signal Connector |
15pin Mini D-Sub |
| Control |
Powe rSwitch, Menu, Select (Up/Down), Adjust (+/-) |
| OSD |
Auto-Adjustment, Contrast, Brightness, Clock, Phase, H-Position, V-Position, Color Temperatore |
| Plug & Play |
DDC 1/2B |
| Optional |
Touchscreen
Video-in : PAL/NTSC & S-Video / AV Connector
Audio System: 2W per channel
Wide Viewing Angel |
| Power |
Universal 90-240V, 12V/35W |
| Dimensions
|
355.5 x 379 x 162 mm |
| Weight (Net) |
7.5 kg |
| Certifications |
FCC-B, CE, UL, TUV, TOC95 |
|
|
|
|
