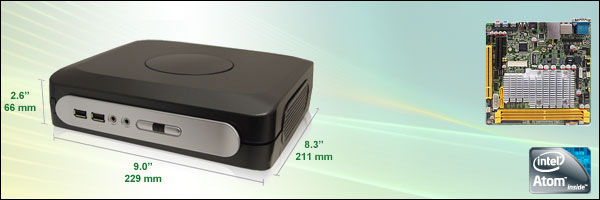

Pearl D510 Intel Atom Dual Core Processor
Think Big, go Thin
Features | Specifications | Picture Gallery | Buy Now



star thin client

Features

  • Intel Atom D510 Dual Core CPU
  • ICH8M Chipset
  • Dual Channel DDR2-800 DIMM up to 4GB max.
  • eSATA port x 1
  • 7 x External USB 2.0 ports
  • Gigabit LAN onboard
  • Jumper switchable RS485 port
  • Optional 2nd LAN or 3 Extra LANs
  • Optional PCMCIA+CF reader
  • Optional COM ports up to 4 Extra
  • Optional Wifi & Bluetooth
  • Support Watchdog Technology
  • Support Power onboard


spacer
Special Options and Upgrades
built-in wifi built-in bluetooth 2 com 3 giga lan front pcmcia slot
Built-in WiFi
802.11G 		Built-in Bluetooth Multiple
COM Port		 Multiple
LAN Ports		 Built-in
PCMCIA + CF Reader
spacer
spacer
Pearl D510
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer
Pictures Gallery

Specifications
Processor INTEL® Atom Dual-Core D510 CPU (45nm,FSB 667MHz, 1.66GHz, 1024MB L2 Cache)
Chipset Inte ICH8M @ 2.4W
System Memory 2 x DDR2 667/800 DIMM Slot (up to 4GB)
Audio Realtek ALC662 5.1 Channel Audio
Storage Support 1 x 2.5" SATA Hard disk, CF Disk or SSD drive
LAN Realtek RTL8111DL PCI-E Gigabit Ethernet
Optional 2nd Gigabit LAN (Realtek 8110SC)
Optional 3 Extra Gigabit LAN (Realtek 8110SC)
Support PXE Boot
Support Wake on LAN
Graphics Intel GMA3150 Integrated Graphics
Back I/O 1 x 12V DC Jack
1 x PS2 Mouse/Keyboard port(Jumper switch)
1 x Serial
1 x VGA
1 x eSATA
5 x USB 2.0
1 x RJ45 LAN (10/100/1000)
1 x Line Out
1 x Line In
1 x Mic in
Onboard I/O 1 x PCI Slot(not applicable)
1 x 44-pin IDE Connector
1 x mini PCI Express x1 Slot
1 x Serial header (RS232/RS422/RS485)
2 x SATA2 3Gb/s Connectors
2 x USB Pin Headers for up to 4 USB 2.0 ports
(Two are used for front USB ports)
1 x Parallel header
1 x 18-bit Dual Channel LVDS header/inverter
1 x 9-pin Audio header
1 x 2-pin SPDIF out header
1 x 4-pin CD audio-in header
1 x GPIO header
1 x LPC header
1 x Front Panel header
3 x Fan headers
1 x 4-pin Power Connector
1 x Daughter board Connector
Optional Features Optional 2nd COM
Optional 3 Extra COM(4 in total)
Optional 4 Extra COM(5 in total)
RS485 Port Adjustable via COM 1
Optional DVI-D port (Coexist with VGA)
Optional Mini PCI Express TV tuner
Optional Wifi
Optional Bluetooth

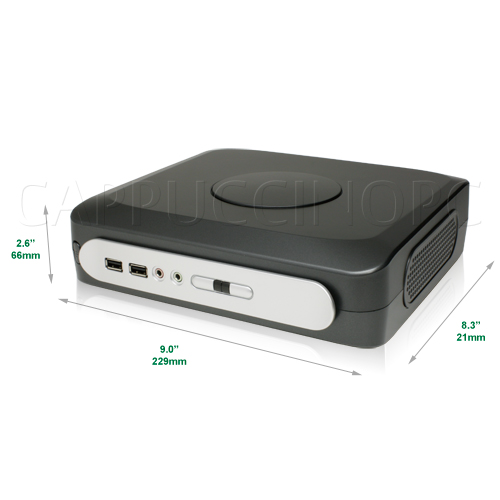

Dimension & Weight 9.0"W x 8.3"D x 2.6"H
1.61kg Fully Equipped
Operating & Storage Temperature Operating Temperature: 0 to 50°C
Storage Temperature: -20 to 85°C
Power Supply External 110~240V AC-DC Adapter 2-pin 12V DC@5A 60W
Power Loss Resume feature available
Kinsington Lock Kinsington Lock Hole available
Mounting -Optional Dual VESA mounting bracket
OS Support Windows XP
Windows 2003 Server (32-Bit)*
Windows 2008 Server (32-Bit)*
Windows Vista
Windows 7
Ubuntu Linux
Fedora Linux

*Server OS is not recommended to work with Mobile chipset
Certificate CE, FCC, RoHS
Maximum Resolution 2048 x 1536 32-bit 60Hz
