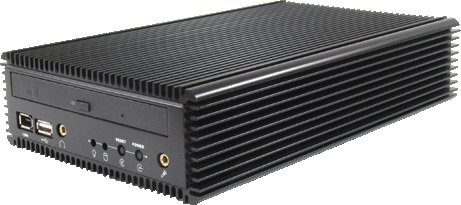

SlimPRO SP615 Fanless Pentium IV System

Features | Specifications | Picture Gallery | Drivers | Discontinued





Features

  • Support Intel Celeron CPU
  • Intel 865GV / ICH5 Chipset
  • Fanless Thermal Control Technology
  • Onboard 10/100 LAN, 1394 Firewire, USB 2.0
  • No noise and low power consumption
  • Support Standard 2.5" Hard Disk
  • 12V DC Power
  • 6.1"(W) x 10.0"(D) x 2.17"(H) or 15.5 x 25.5 x 5.5 cm)

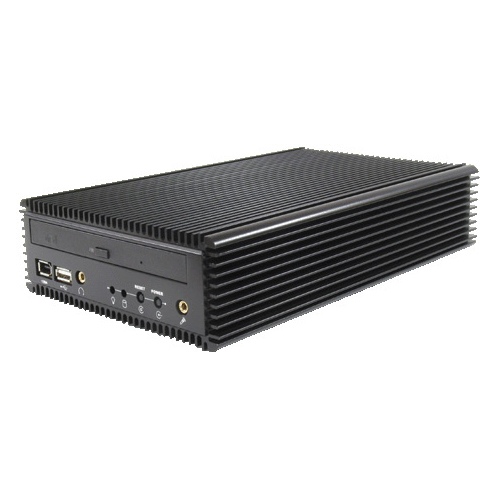

Pictures Gallery

Specifications
Processor

Intel Socket 478 Celeron CPU

Memory Support Dual-Channel DDR 400/333/266 DIMM
0.8" Low Profile, Maximum 2GB with 512MB Technology
Core Logic Intel 865GV / ICH 5 (North / South)
Video Intel Extreme Graphics 2
Support up to 64MB DVMT Video Memory
Audio Software AC'97 Audio CODEC
LAN Built-in high speed Ethernet 10/100Mbps LAN Controller
Firewire Built-in OHCI 1394a 1.1 compliance
Support up to 400MB transfer rate
USB 2.0 Integrated 4 independent OHCI controller supporting USB 1.1 ports
Integrated 1 EHCI controller supporting USB 2.0 ports
Dynamic connection support to USB 2.0 or USB 1.1 devices
IDE Dual Independent ATA-100/66/33 support
Support up to 4 IDE devices on dual channel
Hardware Monitor System, Processor temperature, voltage
Power Management

ACPI 1.0b compliance and OS direct power management
Wake-on event: RTC/USB keyboard/Modem/LAN/Keyboard/Mouse

Switch / Jumpers

Front Panel:
1 x IEEE 1394 Firewire port
1 x USB 2.0 / 1.1 port
1 x MIC port
1 x Ear phone output jack
1 x Power-on Button
1 x Reset button
1 x Power-on and HDD LED



Back Panel:
1 x RS232 COM port
1 x Parallel Printer port
1 x RJ45 10/100Mbps Fast Ethernet
1 x Line-out output jack
2 x USB 2.0 / 1.1 ports
1 x 15 pin VGA
1 x 12v DC power jack input

Dimension & Weight 6.1"(W) x 10.0"(D) x 2.17"(H)
15.5 x 25.5 x 5.5 cm
3kg (fully equipped)
AC/DC Adaptor Input 100~240V 84 Watt AC universal
Output 12V DC out





Applications

  • Car, Truck and Mobile PC
  • NetPC, Set Top Box, Messaging Solution Controller
  • Thin Client Applications, Diskless workstation
  • Industrial system controller, Control Center, Data Center
  • Best fit Kiosk, Self-Service System, POS systems, VoD, VoP, etc.
