rohs compliant SlimPRO SP631H: 12V DC and Intel 915GM Chipset / PCI Slot
Fully functional and upgradable mini pc system

Features | Specifications | Options & Features| Picture Gallery





Features

  • Pentium / Celeron M Processor
  • Low power consumption (12v)
  • Ultra Low Noise

intel core 2 duo intel core 2 duo
Powered by Intel® Pentium M Processor
The Intel® Pentium® M processor utilizes a new micro architecture to meet the current and future demands of high-performance, low-power embedded computing, making it ideal for medium-to-large enterprise communications applications, transaction terminal, interactive client, and industrial automation applications. While incorporating advanced processor technology, it remains software-compatible with previous members of the Intel® microprocessor family.

spacer
Special Options and Upgrades
built-in wifi built-in bluetooth ushape mounting kit dual mounting kit front pcmcia slot
Built-in WiFi
802.11G
Built-in Bluetooth U Shape Wall/Desk Mounting Kit Dual Vesa
Mounting Kit
Built-in Front
PCMCIA
spacer

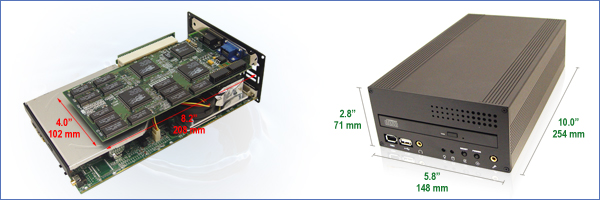

Pictures Gallery

Specifications
Processor

Intel Pentium M or Celeron M 400/533 FSB Processor

Memory Support SODIMM DDR-2 400/533 x 1
Max 2GB
Chipset

Intel 915GM / ICH 6M (North / South)

Video Intel Graphics Media Accelerator 900
Audio Realteck ALC655 AC'97 Audio
LAN Built-in high speed ethernet 100/10Mbps LAN controller
(Intel Pro 10/100)
FireWire Built-in OHCI 1394a 1.1 compliance
Support up to 400MB transfer rate
USB 2.0 Integrated 3 independent OHCI controller supporting USB 1.1 ports
Integrated 1 EHCI controller supporting USB 2.0 ports
Dynamic connection support to USB 2.0 or USB 1.1 devices
PCI

1 x 32bit PCI Expansion Slot supports 4" x 9" PCI Card

IDE

Support all standard slim CD-ROM/DVD-ROM/CD-RWD/DVD-RW/Combo

SATA

Support 3.5" Hard drive

Hardware Monitor System, processor temperature, voltage
Power Management ACPI 1.0b compliance and OS direct power management
Wake-on event: RTC / USB
Keyboard / Modem / LAN / Keyboard / Mouse
Support power lost resume function
I / O Ports

Front:
1 x IEEE 1394 Firewire port
1 x USB 2.0 / 1.1 port
1 x MIC port
1 x Ear phone output Jack
1 x Power-on Button
1 x Rest Button
1 x Power LED
1 x HDD LED

Back:
1 x RS232 Serial Port
1 x RJ45 10/100Mbps Ethernet port
1 x Line-out Jack
2 x USB 2.0 / 1.1 ports
1 x DVI Port (15 pins VGA Adapter included)
1 x 12v DC Power input

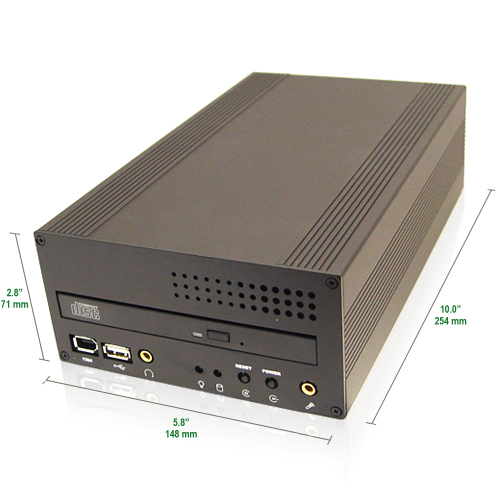

Dimension & Weight 14.8 x 7.1 x 25.4 cm
5.8" x 2.8 x 10.0"
AC Adapter Input 100~240V 60 Watt AC Universal
Output 12V DC power adapter
Storage Devices Support Slim CD-ROM/DVD-ROM, CD-RW, DVD-RW Combo
Support 2.5" SATA IDE Hard drive
OS Support Windows XP
Resolution Maximum Support Resolution: 2048 x 1536 32-bit @ 75Hz
Dual Display support with Optional DVI port add-on and/or splitter cable
