Wafer Mini PC is designed for limited space applications with only the size of a 3 1/2" hard drive. It supports the full functions of an AT-compatible industrial computer on a single board. The Wafer Mini PC is equipped with a low-power consumption and high performance GXLV/GX1 processor on board. It also contains an SDRAM SODIMM socket that can support up to 128 MB memory.

The Wafer Mini PC provides an Ethernet interface, audio interface, socket for DiskOnChip, EIDE interface, one parallel port, one serial ports RS-232, one series ports RS232/422/485 with self-tuner, and a mini-DIN PS/2 keyboard/mouse interface. The built-in SVGA/LCD display controller supports both the CRT and LCD display simultaneously. It offers the resolutions of LCD screen up to 800x600 and CRT resolution up to 1280x1024 @ 16 colors. It also provides LVDS interface for long distance LCD panel signal transmission. The display type is configured by software utility. The Flash ROM contains both the system BIOS and the VGA BIOS. The modification, in case of necessary, could be done by reprogramming the Flash ROM.

The RS485 has an outstanding characteristic of intelligent directing control which eliminates the extra control signal like RTS. With this feature you can develop your program as you are using a normal RS232 without special control routine. This is especially important in Windows programming switch do not allow the program to catch the control pin at your wish.

Finally, one PC/104 connector is included for the future application you will need.

Product Specifications

• Designed for wafer-5XXX or other Wafer series SBC
• Disk Drive Bay: Support one 2.5" HDD. It is suggested to be equipped with IEI Flash Disk IFD-250
• Best solution for wall-mount man machine interface
• Space for one more PC/104 module
• Cooling Fan: one 40mm fan

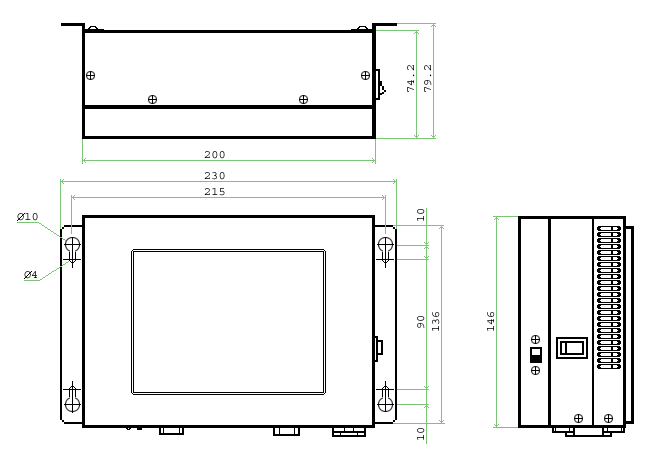

• Dimensions: 200(230)mm x 146(136)mm x 84.2(87.2)mm
• LCD Display: 44-pin LCD connector interface to wafer series SBC High brightness
• Support screen reverse function

Dynapro Touch Screen (optional)

• Type: Analog Resistive
• Resolution: Continuous
• Light transmission: Typical value 72%
• Surface Hardness: 4H (Test condition: ASTM D3363-92A)
• 4-Wire touch screen
• Support driver: Supports DOS, Windows 3.1, 95, 98, NT, 2K, XP

Industrial Power Supply

• PPC-5010 is equipped with ACE-855A, 55 Watt industrial power supply. The optional power supplies can be: ACE-855C +24VDC input power supply or ACE-845V + 12VDC input power.
• Shock: 10G peak acceleration (11 msec. duration)
• Safety: meet UL/CSA/TUV
• EMI: meet FCC/VDE class A

Environmental Specifications

• Operating Temperature: 0 ~ 50C
• Relative Humidity: 10-95% @40C, non-condensing
• Vibration: 5 to 17 Hz, 0.1" double-amplitude displacement, 17 to 500 Hz, 1.5 G Peak to peak
