Echo 40F-PoE Embedded Fanless Mini PC with 4 PoE

Echo 40F-PoE Embedded Fanless Mini PC with 4 x PoE

With extreme features integration, outstanding system performance, versatile I/O connections, wide range power input, smart management functions and rugged reliability, Echo 40F-PoE Embedded Fanless Mini PC with 4 x PoE Slim Fanless Embedded System is your great choice for Machine Vision, Intelligent Manufacturing, Intelligent Transportation System (ITS), In-Vehicle Information System, Logistic Solution, Vehicle Computing and Surveillance applications.

Echo 40F Embedded Fanless Mini PC with 2 LAN

Echo 40F-PoE Fanless PC

5th Generation Intel® SoC (Broadwell-U)

4 x PoE Ports
2 x Display Ports
Small Form Factor Fanless embedded
Low Power Consumption Fanless embedded PC

Features List

5^th Generation Intel® Core™ i7/ i5/ i3 U-Series Processor (Broadwell-U) Embedded

Fanless Mini PC embedded

2 SIM Card sockets (2 External)

2 x Gb LAN

4 x PoE Ports

2 x DisplayPort

2 x USB 3.0

4 x COM Ports

Configurable Ignition Power Control for In-Vehicle user
Power off delay up to 24 hours (See page 39 of User Manual)

6V to 36V DC-in

EN50155 compliant

Intel® Firmware Raid

Echo 40F-PoE Embedded Fanless Mini PC with 4 x PoE
Specifications

System
Processor	5th Generation Intel® Core™ i7/ i5/ i3 Processor (Broadwell-U)
BIOS	AMI
SIO	IT8786E
Memory	2 DDR3L 1600MHz SO-DIMM, up to 32GB
I/O Interface
Serial	- 4 COM RS-232/ 422/ 485
USB	- 4 USB 3.0 (External) - 4 USB 2.0 (3 External, 1 Internal by JST Connector)
GPIO	16 DIO :8 DI, 8 DO(See Manual Page 70)
LED	Power, HDD, PoE
SIM Card	2 SIM Card Socket (External) (Additional Mini PCIe Modem required)
Expansion
Mini PCIe	2 Mini PCIe Socket : - 1 Full-size for PCIe/ USB/ External SIM Card - 1 Full-size for PCIe/ USB/ External SIM Card/ mSATA
Graphics
Graphics Processor	- Intel® HD Graphics 6000
Interface	- DVI-D : Up to 1920 x 1080 @ 60Hz - DisplayPort 1 : Up to 3840 x 2160 @ 60Hz - DisplayPort 2 : Up to 3840 x 2160 @ 60Hz
Storage
SATA	2 SATA III (6Gbps)
mSATA	1 SATA III (Mini PCIe Type, 3Gbps) Shared with Mini PCIe device
Storage Device	- 1 CFast Socket, Push-in/ Push-out Ejector - 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec	Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface	1 Line-out, 1 Mic-in
Ethernet 2 LAN
LAN 1	Intel® I218 Gigabit LAN supports iAMT
LAN 2	Intel® I210 Gigabit LAN
PoE
LAN 3	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
LAN 4	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
LAN 5	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
LAN 6	Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
Power
Power Input	Wide Voltage 6V to 36V, DC-in
Power Interface	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Ignition Control	16 Mode(Internal) (See Manual Page 39 for detail)
Remote Switch	3-pin Terminal Block : On, Off, IGN (See Manual Page 19 for detail)
Surge Protection	Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM)	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

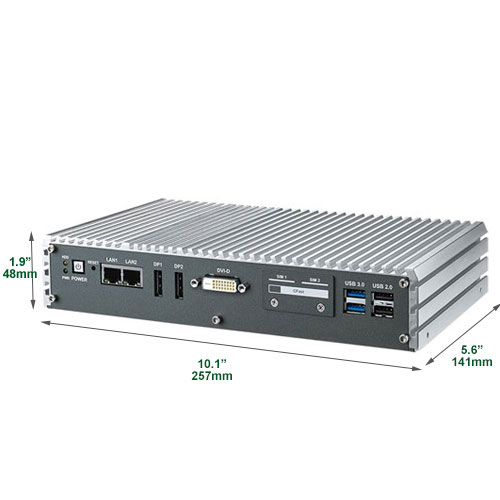

Dimensions (W x L x H)	257mm x 141mm x 48mm (10.1” x 5.6” x 1.9”)
Weight	2.1 kg (4.6 lb)
Mounting	- L shape Mounting bracket (Included) - VESA mounting (Optional) - 2U Rackmount (Optional) - DIN Rail Mount 35mm Wide (Optional) Drawing Download
Operating System
Windows 10	Supported
Windows 8	Supported
Windows 7	Supported
User Manual	User Manual Download
Drivers	Windows Drivers
Linux	Supported
Environment
Operating Temperature	-25°C to 70°C (-13°F to 158°F) With Special Wide Temperature memory and SSD 0 to 40°C with Hard Disk 0 to 60°C with SSD
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	10% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
EMC	CE, FCC, EN 50155, EN 50121-3-2
