rohs compliant Echo 246FE-PoER i7 Fanless Mini PC - A Small Form Factor PC with PCIe Express x16 slot and 4 PoE Por

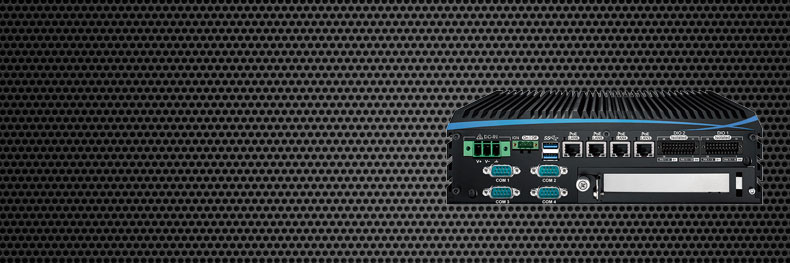

Echo 246FE-PoER i7 Fanless Mini PC - A Small Form Factor PC with PCIe Express x16 slot and 4 PoE Por
Features | Specifications | Picture Gallery | Power Consumption | Buy Now



Echo PC SeriesFanless Mini PC Echo 246FE-PoER i7 Fanless Mini PC - A small form factor PC with PCIe Express x16 slot and 4 PoE Ports

Echo 246FE-PoER i7 Fanless Mini PC - A Small Form Factor PC with PCIe Express x16 slot and 4 PoE Ports

Echo 246FE-PoER i7 Fanless Mini PC - A small Form Factor PC with PCIe Express x16 slot and 4 PoE Ports is a perfect integrated high performance Industrial machine in the market. Powerful Six Cores 9th and 8th generation Intel® Core™ i7 (CoffeeLake) engine running with 15% enhanced productivity than former generation, Intel® C246 chipset, dual channel DDR4 memory at 2666MHz, up to 64GB. Advanced Intel® Graphics 630 supports DVI-I, DVI-D, and DisplayPort interfaces, up to 3 independent displays(DisplayPort itself support 4K) It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Echo 246FE-PoER i7 Fanless Mini PC - A small Form Factor PC with PCIe Express x16 slot and 4 PoE Ports is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC
  Echo 246FE-PoER Fanless PC
9th and 8th Generation Intel® (CoffeeLake)

PCIe Express x16 slot
VGA, DVI-D, and 2 x Display Ports
Small Form Factor Fanless Industrial
Low Power Consumption Fanless Industrial PC
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC


Features List

  • 9th and 8th Generation Intel® Core™ i7 Mobile Processor (CoffeeLake)
  • Fanless Mini PC Industrial Design
  • 1 Front-access CFast Socket
  • 3 Front-access SIM Card sockets (Required Separate Mini PCIe Modem)
  • 2 Front-access 2.5" SSD/ HDD
  • Dual NIC
  • 4 x PoE
  • 1 PCIe 3.0 (8GT/s) x16 Expansion Slot (Max Card Dimension: 4.2"(H) x 7.9"(D) )
  • VGA/ DVI-D/ 2 x DisplayPort Interface, up to 3 independent 4K displays(DisplayPort only)
  • 6 x USB 3.1
  • 4 x COM Ports
  • 32 Isolated DIO : 16 DI, 16 DO
  • Configurable Ignition Power Control for In-Vehicle user
    Power off delay up to 24 hours
  • 6V to 36V DC-in, 80V Surge Protection
  • Fanless, -25°C to 70°C Operating Temperature when pair with special Memory and SSD
  • Intel® Firmware Raid
  • EN50155 compliant
Related Products
i7 wide extended temperature mini pc computer

Echo 246FE-PoER(x16 PCIe Slot) (2 x Removable HD Slot) Mini PC
x16 PCIe Expansion Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FM(4 x M12 PoE Port) Mini PC
x16 PCIe Expansion Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Twister170E(PCI-E x16) Mini PC
x16 PCIe Expansion Slot
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FE(x16 PCIe Slot) Mini PC
x16 PCIe Expansion Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Expando Duo IE16(x16 and PCI Slot) Mini PC
x16 PCIe Expansion Slot
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More
i7 wide extended temperature mini pc computer

Echo 236FE(x16 PCIe Slot) Mini PC
x16 PCIe Expansion Slot
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Expando Duo E416(x16 and x4 Slot) Mini PC
x16 PCIe Expansion Slot
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More


spacer
Echo 246FE-PoER
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery
Echo 246FE-PoER i7 Fanless Mini PC - A Small Form Factor PC with PCIe Express x16 slot and 4 PoE Ports
Echo 246FE-PoER i7 Fanless Mini PC - A Small Form Factor PC with PCIe Express x16 slot and 4 PoE Ports





Echo 246FE-PoER i7 Fanless Mini PC - A Small Form Factor PC with PCIe Express x16 slot and 4 PoE Ports
Specifications
System
Processor 9th and 8th Generation Intel® Core™ i7 Processor (Coffee Lake-S)
Chipset Intel® C246
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 64GB
I/O Interface
Serial
- 4 COM RS-232/ 422/ 485 (ESD 8KV)
USB
- 6 USB 3.1 (External)
- 1 USB 2.0 (Internal)
GPIO 16 GPIO
LED Power, HDD, Wireless
SIM Card 3 SIM Card Socket (External)
(Additional Mini PCIe Modem required)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA
PCI/ PCIe
1 PCIe 3.0 (8GT/s) x16 Expansion Slot (Max Card Dimension: 4.2"(H) x 7.9"(D) )
M.2
1 M.2 Socket (Key ID : E)(Size:2230)
Graphics
Graphics Processor - Intel® HD Graphics P630/630
Interface
- VGA : Up to 1920 x 1200 @ 60Hz
- DVI-D: Up to 1920 x 1080 @ 60Hz
- DisplayPort: Up to 4096 x 2304 @ 60Hz
Storage
SATA
2 SATA III (6Gbps)
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
M.2
- 1 M.2 Key M socket(Size:2280)
- 1 M.2 Key B socket(Size:2280)
Compatible with only Wide Temperature M.2 drive
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (front access)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2 Intel® I210 Gigabit LAN
PoE
LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
Power
Power Input Wide Voltage 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Ignition Control 16 Mode(Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Power Adapter Input universal AC 100~240V; Output DC 24V/120W
Others
Trusted Platform Module (TPM) Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimensions (W x L x H) 260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”)
Weight 4.5 kg (9.92 lb)
Mounting
Mounting
- L shape Mounting bracket (Included)
- VESA mounting (Optional)
- 2U Rackmount (Optional)
- DIN Rail Mount 35mm Wide (Optional)
Operating System
Windows 10 Supported
Linux Supported
User Manual User Manual Download
Environment
Operating Temperature -40°C to 70°C  (-40°F to 158°F) With Special Wide Temperature memory and SSD and 35W CPU

-40°C to 55°C  (-40°F to 131°F) With Special Wide Temperature memory and SSD and 65W CPU

0 to 40°C with Hard Disk
0 to 55°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
EMC CE, FCC, EN 50155, EN 50121-3-2
