rohs compliant Echo 40F-PoER Embedded Fanless Mini PC with PoE and 2 Hard Drives
Echo 40F-PoER Embedded Fanless Mini PC with PoE and 2 Hard Drives

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



Echo PC SeriesFanless Mini PC Echo 40F-PoER Industrial Embedded Fanless Mini PC with 4 x PoE, 2 x Hard Disk

Echo 40F-PoER Industrial Embedded Fanless Mini PC with 4 x PoE, 2 x Hard Disk

With extreme features integration, outstanding system performance, versatile I/O connections, wide range power input, smart management functions and rugged reliability, Echo 40F-PoER Industrial Embedded Fanless Mini PC with 4 x PoE, 2 x Hard Disk is your great choice for Machine Vision, Intelligent Manufacturing, Intelligent Transportation System (ITS), In-Vehicle Information System, Logistic Solution, Vehicle Computing and Surveillance applications.
Echo 40F Embedded Fanless Mini PC with 2 LAN
  Echo 40F-PoER Fanless PC
5th Generation Intel® SoC (Broadwell-U)

4 x PoE Ports
2 x Display Ports

Small Form Factor Fanless embedded
Low Power Consumption Fanless embedded PC
Echo 40F Embedded Fanless Mini PC with 2 LAN


Features List

  • 5th Generation Intel® Core™ i7/ i5/ i3 U-Series Processor (Broadwell-U) Embedded
  • Fanless Mini PC embedded
  • 2 SIM Card sockets (2 External)
  • 2 x Gb LAN
  • 4 x PoE Ports
  • 2 x Removable Hard Disk
  • 2 x DisplayPort
  • 2 x USB 3.0
  • 4 x COM Ports
  • Configurable Ignition Power Control for In-Vehicle user
    Power off delay up to 24 hours (See page 39 of User Manual)
  • 6V to 36V DC-in
  • EN50155 compliant
  • Intel® Firmware Raid
Related Products
i7 wide extended voltage mini pc computer

Echo 77-PoE+ ( Fanless Mini PC embedded)
Wide Voltage
(6-36V)

Built-in 4 x PoE Ports
Built-in 2 x Gb LAN
2 x SATA Hard Drives
Mobile IvyBridge (3rd Gen. i7)

Read More
i7 wide extended voltage mini pc computer

Echo 77-FE ( Fanless Mini PC embedded)
Wide Voltage
(6-36V)

Built-in 4 x PoE Ports
Built-in 2 x Gb LAN
Built-in x16 PCIe Slot
Mobile IvyBridge (3rd Gen. i7)

Read More
i7 wide extended voltage mini pc computer

Echo 77-QRD ( Fanless Mini PC embedded)
Wide Voltage
(6-36V)

Built-in 4 x PoE Ports
Built-in 2 x Gb LAN
Built-in 4 x Hard Disk Slot
Mobile IvyBridge (3rd Gen. i7)

Read More
i7 wide extended voltage mini pc computer

Echo 77-FP ( Fanless Mini PC embedded)
Wide Voltage
(6-36V)

Built-in 4 x PoE Ports
Built-in 2 x Gb LAN
Built-in PCIe Slot
Mobile IvyBridge (3rd Gen. i7)

Read More

Numi 210F Embedded Mini PC ( Fanless Mini PC)
Numi 210F BayTrail 2xLAN / 4xCOM Ports Low Power Mini PC
Built-in 2 x Gb LAN
1 x SATA Hard Drives
Intel Atom BayTrail I-E3845

Read More


spacer
Echo 40F-PoER
To Customize a Complete System.  Silver / Gray
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





Echo 40F-PoE Embedded Fanless Mini PC with 4 x PoE, 2 x Hard Disk
Specifications

System
Processor 5th Generation Intel® Core™ i7/ i5/ i3 Processor (Broadwell-U)
BIOS AMI
SIO IT8786E
Memory 2 DDR3L 1600MHz SO-DIMM, up to 32GB
I/O Interface
Serial
- 4 COM RS-232/ 422/ 485
USB
- 4 USB 3.0 (External)
- 4 USB 2.0 (3 External, 1 Internal by JST Connector)
GPIO 16 DIO :8 DI, 8 DO(See Manual Page 70)
LED Power, HDD, PoE
SIM Card 2 SIM Card Socket (External)
(Additional Mini PCIe Modem required)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Full-size for PCIe/ USB/ External SIM Card
- 1 Full-size for PCIe/ USB/ External SIM Card/ mSATA
Graphics
Graphics Processor - Intel® HD Graphics 6000
Interface
- DVI-D : Up to 1920 x 1080 @ 60Hz
- DisplayPort 1 : Up to 3840 x 2160 @ 60Hz
- DisplayPort 2 : Up to 3840 x 2160 @ 60Hz
Storage
SATA
2 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe Type, 3Gbps) Shared with Mini PCIe device
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Removable)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet 2 LAN
LAN 1 Intel® I218 Gigabit LAN supports iAMT
LAN 2 Intel® I210 Gigabit LAN
PoE
LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
Power
Power Input Wide Voltage 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Ignition Control 16 Mode(Internal) (See Manual Page 39 for detail)
Remote Switch 3-pin Terminal Block : On, Off, IGN (See Manual Page 19 for detail)
Surge Protection Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM) Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

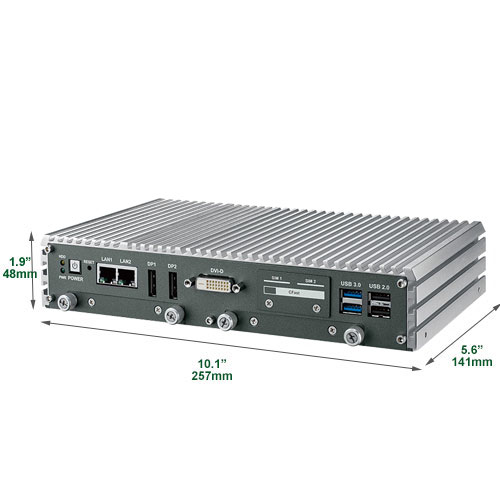

Dimensions (W x L x H) 257mm x 141mm x 48mm (10.1” x 5.6” x 1.9”)
Weight 2.1 kg (4.6 lb)
Mounting
- L shape Mounting bracket (Included)
- VESA mounting (Optional)
- 2U Rackmount (Optional)
- DIN Rail Mount 35mm Wide (Optional) Drawing Download
Operating System
Windows 10 Supported
Windows 8 Supported
Windows 7 Supported
User Manual User Manual Download
Drivers Windows Drivers
Linux Supported
Environment
Operating Temperature -25°C to 70°C  (-13°F to 158°F) With Special Wide Temperature memory and SSD

0 to 40°C with Hard Disk
0 to 60°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
EMC CE, FCC, EN 50155, EN 50121-3-2
