Echo SeriesWide Voltage PC Echo 77FP

Echo 77FP i3 i5 i7 Fanless Mini PC Computer with PCI Slot

Echo 77FP is a Fanless Mini-PC Computer feature 3rd Generation i3/i5/i7 Prcoessor (Ivy Bridge) to deliver high-end computing ability for demanding applications. And 2 x Gb LANs, 4 x COM Ports, 4 x PoE, PCI Slot are perfect for Machine Vision, Manufacturing, Intelligent Automation applications.
Echo 77FE Fanless Mini PC, 4 COM, 4xPoe, 4 x Lan

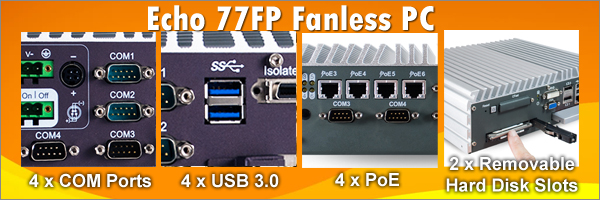

   Echo 77FP Mini PC
3rd Gen i3/i5/i7 Small Mini Computer

2 x Gb LANs
 4 x COM Ports

  PCI Expansion Slot
   Low Power Consumption PC
    Core™ 3rd Gen i3/i5/i7 Small Computer
Echo 77FE Fanless Mini PC, 4 COM, 4xPoe, 4 x Lan


Features

  • Intel 3rd Generation i7,i5,i3 CPU (Ivy Bridge)
  • Intel QM77 Chipset
  • 2 x DDR3 SO-DIMM.
  • 4 x USB 3.0
  • 2 x Gigabit LAN onboard
  • 4 x PoE onboard Intel® 82574L
  • SIM Card Socket for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS
    (Additional Mini PCIe Modem required)
  • 16 Isolated DIO, 16 GPIO
    (See page 16,32,68 of User Manual)
  • 1 PCI Expansion Slot
  • 3 Display Support: DVI-D/ HDMI, & VGA, 2 Display Ports
  • 4 x COM Ports
  • 2 SATA III (6Gbps) 2.5" SSD / HDD, mSATA
  • Wide Voltage input 6~36V
  • Optional Wifi & Bluetooth
  • Compliant with EN50121-3-2 and Essential Sections of EN50155

Fanless Mini PC with 3G Sim Slot

vmware ready:

  • VMware vSphere® 5.5
  • View Connection Server 6.0.1 enterprises
Related Products
i7 wide extended temperature mini pc computer

Echo 77FW
(Fanless Mini PC)
Wide Temperature

Built-in 4 x COM
Built-in 2 x Gb Lan
Built-in 4 x USB3.0
Built-in 2 x USB2.0
Mobile IvyBridge (3rd Gen. i7)

Read More
i7 wide extended voltage mini pc computer

Echo 77F (Fanless)
Wide Voltage
(6-36V)

Built-in 4 x COM
Built-in 2 x Gb Lan
Built-in 4 x USB3.0
Built-in 2 x USB2.0
Mobile IvyBridge (3rd Gen. i7)

Read More


spacer
Echo 77FP
To Customize a Complete System.  Silver Blue
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





Echo 77FP i3 i5 i7 Fanless Mini PC Computer with PCI Slot Specifications
System
Processor Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME
Chipset Intel® QM77
BIOS AMI
SIO IT8783
Memory 2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB
I/O Interface
Serial
- 1 COM RS-232/ 422/ 485
- 3 COM RS-232
USB
- 4 USB 3.0 (External)
- 4 USB 2.0 (2 External, 2 Internal by JST Connector)
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO
GPIO 16 GPIO (Internal)
LED Power, HDD, PoE
SIM Card 1 SIM Card Socket (Internal)
(Additional Mini PCIe Modem required)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA
- 1 Mini PCIe for PCIe/ USB/ Optional mSATA
PCI 1 PCI Slot
Max Card Dimension:
4.2"(H) x 7.9"(D)
Graphics
Chipset Intel® HD 4000
Display Memory Shared Memory, Up to 1.7GB
Interface
- VGA : DB-15, up to 1920 x 1200
- DVI-D : Up to 1920 x 1200
- DisplayPort 1 : Up to 2560 x 1600
- DisplayPort 2 : Up to 1920 x 1200
- LVDS : Dual channel 24-bit, up to 1920 x 1200
Note DisplayPort cannot convert to Hdmi though adapter
Storage
SATA
- 2 SATA III (6Gbps)
- 1 SATA II (3Gbps), supports horizontal type SATA DOM
mSATA 2 SATA II (Mini PCIe Type, 3Gbps) Shared with Mini PCIe device
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-in, 1 Line-out, 1 Mic-in
Ethernet
LAN 1 Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2 Intel® 82574L Gigabit LAN
PoE
LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
Power
Power Input Wide Voltage 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM) Optional Infineon SLB9635 supports TPM 1.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

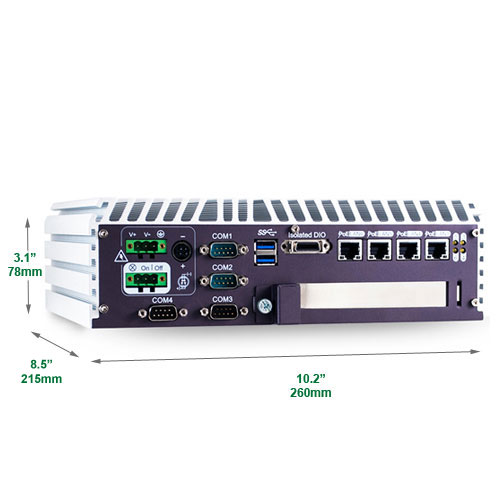

Dimensions (W x L x H) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 2.8 kg (6.2 lb)
Mounting
- Wallmount by mounting bracket
- 2U Rackmount (Optional)
Operating System
Windows 10 Supported
Windows 8 Windows 8.1 (x86, x64) Driver
Windows 7 Windows 7 (x86, x64) Driver
User Manual User Manual Download
VMware vSphere® 5.5 Supported
View Connection Server 6.0.1 enterprises Supported
Environment
Operating Temperature -25°C to 70°C  (-13°F to 158°F) With Special Wide Temperature memory and SSD

0 to 40°C with Hard Disk
0 to 60°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
EMC CE, FCC, EN 50155, EN 50121-3-2



  Contact Us Inquiries Accessories Drivers Mounting Kit
