Processor |
5th Generation Intel® Core™ i7/ i5/ i3 U-Series Processor (Broadwell-U) |
Bios |
AMI: American Megatrends, Inc
UEFI supported.
|
SIO |
IT8786E
|
Video |
Intel® HD
6000(Various on Processsor) |
Video Interface |
- DVI-D : Up to 1920 x 1080 @ 60Hz
- DisplayPort 1 : Up to 3840 x 2160 @ 60Hz
- DisplayPort 2 : Up to 3840 x 2160 @ 60Hz |
System Memory |
- DDR3L 1333/ 1600MHz
- Up to 16GB
- 2 x 204-pin SO-DIMM Socket |
Audio |
Realtek ALC892, 5.1 Channel HD Audio |
Audio Interface |
1 Mic-in, 1 Line-out |
Serial |
4 x COM RS-232/422/485 |
USB |
- 2 USB 3.0
- 4 USB 2.0 (3 External, 1 Internal) |
SIM Card |
-2 SIM Card Socket (External) |
Storage |
2 x 2.5" Removable Hard Drives/ SSD
(2 x SATA III(6Gbps)
(1 x mSATA (SATA II(6Gbps))
Intel® firmware Raid 0/1 and 0+1 Modes hotswap
1 x CFast Slot, Push-in/ Push-out Ejector
|
LAN |
Ethernet
LAN 1: Intel® I218 Gigabit LAN supports iAMT
LAN 2: Intel® I210 Gigabit LAN
|

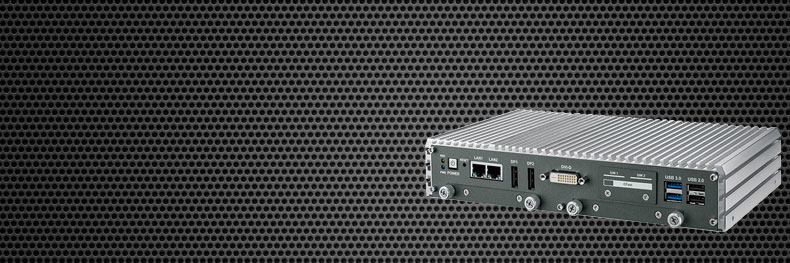

Front I/O |
Power / HDD LED
Power Button
CFast Slot
2 x Display Port
DVI-D ( Digital Only)
2 x Gb LAN
2 x USB 3.0
2 x USB 2.0
|
Back I/O |
1 x USB 2.0
Input Voltage: 6V to 36V, DC-in
4 pins Power input
3-pin Terminal Block : V+, V-, Frame Ground
3-pin Terminal Block : On, Off, IGN (Remote Switch)
Ignition Control: 16 Mode (Internal)(Detail on User Manual Page 39)
Surge Protection:: Up to 80V/1ms Transient Power
1 x Isolated DIO(16 Isolated DIO (8 DI, 8 DO, up to 40V Input)
1 x IGN On/Off Delay
Power Input (Terminal Block 3 pins 6V to 36V)
4 x COM Ports
Mic-In / Line-Out
|
Dimension & Weight |

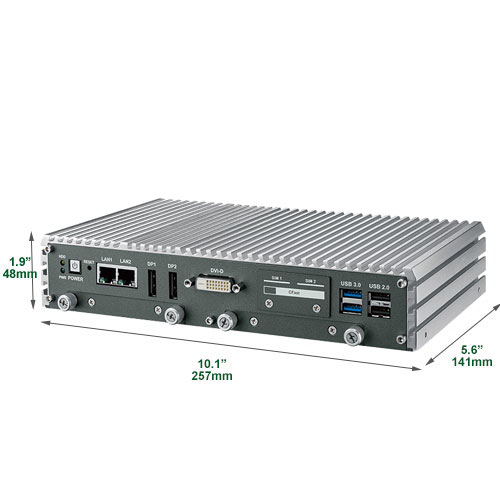

10.1"W x 5.6"D x 1.9"H
257mm(W) x 141mm(D) x 48mm(H)
9.26lb. Fully Loaded
|
Power Management |
Watch Dog Timer Available |
Operating & Storage Temperature |
Operating Temperature:
0 ~ 40C with Hard Disk
0 ~ 60C with SSD
Storage Temperature: -40 ~ 85C (-40 ~ 185F)
Operating Humidity: 5% to 95% humidity, non-condensing
Relative Humidity: 95% at 70C
Shock: - IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC: CE, FCC, EN 50155, EN 50121-3-2
|
Power Supply |
External 110~240V AC-DC adapter 24V@3.75A 90W
Power Loss Resume feature available
Surge Protection: Up to 80V/1ms Transient Power
Ignition control: 16 Modes |
Mounting |
- L shape Mounting bracket (Included)
- VESA mounting (Optional)
- 2U Rackmount (Optional)
|
Expansion Slot |
- 1 supports PCIe/ USB/ External SIM
- 1 supports PCIe/ USB/ External SIM/ mSATA |
Other |
TMP: Optional Infineon SLB9665 supports TPM 2.0,LPC Interface
Watchdog Timer: Reset : 1 to 255 sec./min. per step
Smart Management: Wake on LAN, PXE supported
HW Monitor: Monitoring temperature, voltages. Auto throttling control when CPU overheats |
OS Support |
Window 7
Windows 8
Linux |
Resource |
User Manual
Windows driver Download
|
